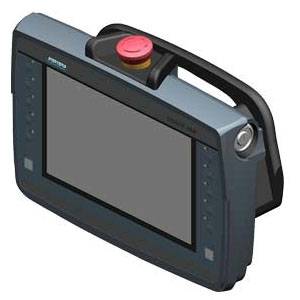

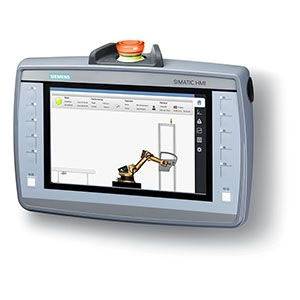

Siemens AG 6AV21252JB230AX0 Human Machine Interface Mobile Panel

Short Description

9" MTBF TFT Display, 24 VDC, 450 mA, 11 W, 800 x 480 Resolution, IP65, Plastic Front Panel, Human Machine Interface Mobile Panel

Human Machine Interface Mobile Panel; Type Color; Operating Voltage 24 Volt DC; Operating Current 450 Milliamp; Power Rating 11 Watt; Operator Interface Type Touchscreen, Keypad; Display Type TFT; Display Size 9 Inch; Resolution 800 x 480; Backlight Type MTBF; Application Memory 12 Megabyte Flash/RAM; Number of Function Keys 10; Communication Port Type Industrial Ethernet, PROFINET, PROFIsafe, USB; Front Panel Height 223.5 Millimeter; Operating Temperature 0 to 45 Deg C; Enclosure IP65; Material Plastic (Front Panel); Approval UL (Canada and US), CE, C-TICK, KC; RoHS Compliant; Housing Front Width 307.5 Millimeter; Number of Colors 16777216; Processor Type Arm; Humidity 90 Percent

MFG #: 6AV21252JB230AX0

EECO #: SIC6AV21252JB230AX0

Brand: Siemens
UPC #: 804766158094
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
43211500
Approval
UL (Canada and US), CE, C-TICK, KC
Material
Plastic (Front Panel)
Resolution
800 x 480
Display Type
TFT
Power Rating
11 Watt
Backlight Type
MTBF
Enclosure
IP65
Operating Voltage
24 Volt DC
Operating Temperature
0 to 45 Deg C
Number of Function Keys
10.0000
Operator Interface Type
Touchscreen, Keypad
Type
Color
Display Size
9 Inch
Operating Current
450 Milliamp
Application Memory
12 Megabyte Flash/RAM
Front Panel Height
223.5 Millimeter
Communication Port Type
Industrial Ethernet, PROFINET, PROFIsafe, USB
Features
  • The Second Generation of Simatic HMI Mobile Panels Impresses with its Convenience, Performance and Quality
  • The Highlights a Brilliant Widescreen Display, Particularly Simple Configuration and the Unique Illuminated Emergency Stop Button
  • This Series of Devices Offers Panels with 4 Inch, 7 Inch and 9 Inch Displays, Each of which is Available with or without Safety-Related Operator Controls
  • RoHS Compliant
SIEMNSE51004_2_50_2_56
SIEMNSE78400_1_10
Qty Unit price
Ea
1 $3,955.00

Slqt
1 $3,955.00

Stpk
1 $3,955.00

Unit
1 $3,955.00
