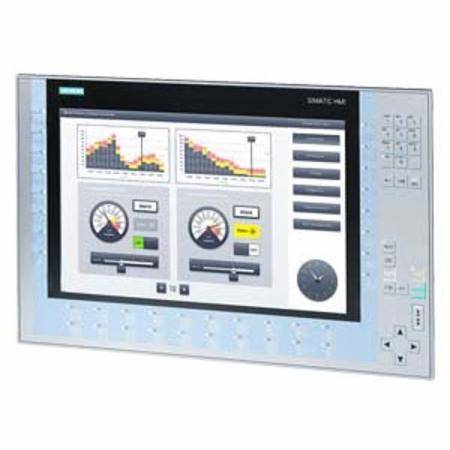

Siemens AG 6AV21241QC020AX1 HMI Comfort Panel
Share Share Print Print
Siemens

Siemens AG 6AV21241QC020AX1 HMI Comfort Panel

Short Description

15" TFT Color Display, 24 VDC, 1.7 A, 41 W, 1280 x 800 Pixel Resolution, NEMA 4/4X/IP20/65, Aluminum Front Panel, PROFINET/MPI/IRT/MRP/PROFIBUS/MODBUS, Windows CE Embedded, 24 MB, Keypad, HMI Comfort Panel

HMI Comfort Panel; Type Color; Operating Voltage 24 Volt DC; Operating Current 1.7 Amp; Power Rating 41 Watt; Operator Interface Type Keypad; Display Type TFT; Display Size 207 Millimeter Width x 331.2 Millimeter Height; Resolution 1280 x 800 Pixel; Backlight Type MTBF; Application Memory 24 Megabyte Flash/RAM; Number of Function Keys 36; Communication Port Type PROFINET, MPI, IRT, MRP, PROFIBUS, MODBUS; Front Panel Height 310 Millimeter; Operating Temperature 0 to 50 Deg C Vertical/0 to 40 Deg C Tilt Angle (Ambient); Enclosure NEMA 4/4X, IP20/65; Material Aluminum (Front Panel); Mounting Vertical; Approval UL (Canada and US), CE, C-TICK, KC, EAC; RoHS/REACH Compliant; Screen Diagonal Size 15 Inch; Housing Front Width 483 Millimeter; Backlight Lifetime 80000 Hour; Processor Type X86; Operating System Windows CE Embedded Compact; Humidity Rating 90 Percent; Applicable Standard Class 1 Zone 2 Div 2, Class 1, Div 2; Number of Colors 16777216

MFG #: 6AV21241QC020AX1

EECO #: SIC6AV21241QC020AX1

Brand: Siemens
UPC #: 804766523908
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
43211500
Approval
UL (Canada and US), CE, C-TICK, KC, EAC
Material
Aluminum (Front Panel)
Resolution
1280 x 800 Pixel
Display Type
TFT
Power Rating
41 Watt
Backlight Type
MTBF
Mounting
Vertical
Enclosure
NEMA 4/4X, IP20/65
Operating Voltage
24 Volt DC
Operating Temperature
0 to 50 Deg C Vertical/0 to 40 Deg C Tilt Angle (Ambient)
Number of Function Keys
36.0000
Operator Interface Type
Keypad
Type
Color
Display Size
207 Millimeter Width x 331.2 Millimeter Height
Operating Current
1.7 Amp
Application Memory
24 Megabyte Flash/RAM
Front Panel Height
310 Millimeter
Communication Port Type
PROFINET, MPI, IRT, MRP, PROFIBUS, MODBUS
Features
  • Excellent HMI Functionality for Demanding Applications
  • Integrated High-End Functionality with Archives, Scripts, PDF/Word/Excel Viewer, Internet Explorer, Media Player and Web Server
  • Dimmable Displays from 0 to 100 Percent Via Profienergy, Via the HMI Project or Via a Controller
  • Modern Industrial Design
  • Upright Installation for all Touch Devices
  • Maximum Performance with Short Screen Refresh Times
  • Innovative Service and Commissioning Concept Operations
  • RoHS/REACH Compliant
SIEMEAINST00670
SIEMNSE79251_2_28_2_29_2_37_2_41
SIEMNSE80001_1_10
Qty Unit price
Ea
1 $4,660.00

Slqt
1 $4,660.00

Stpk
1 $4,660.00

Unit
1 $4,660.00
