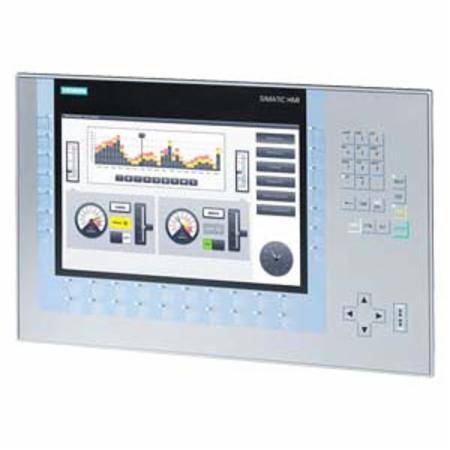

Siemens AG 6AV21241MC010AX0 HMI Comfort Panel
Share Share Print Print
Siemens

Siemens AG 6AV21241MC010AX0 HMI Comfort Panel

Short Description

12" TFT Color Display, 24 VDC, 0.85 A, 20 W, 1280 x 800 Pixel Resolution, NEMA 4/4X/IP20/65, Aluminum Front Panel, PROFINET/MPI/IRT/MRP/PROFIBUS/MODBUS, Windows CE 6.0, 12 MB, Keypad, HMI Comfort Panel

HMI Comfort Panel; Type Color; Operating Voltage 24 Volt DC; Operating Current 0.85 Amp; Power Rating 20 Watt; Operator Interface Type Keypad; Display Type TFT; Display Size 163.2 Millimeter Width x 261.1 Millimeter Height; Resolution 1280 x 800 Pixel; Backlight Type MTBF; Application Memory 12 Megabyte Flash/RAM; Number of Function Keys 34; Communication Port Type PROFINET, MPI, IRT, MRP, PROFIBUS, MODBUS; Front Panel Height 289 Millimeter; Operating Temperature 0 to 50 Deg C Vertical/0 to 40 Deg C Tilt Angle (Ambient); Enclosure NEMA 4/4X, IP20/65; Material Aluminum (Front Panel); Mounting Vertical; Approval UL (Canada and US), CE, C-TICK, KC; RoHS/REACH Compliant; Screen Diagonal Size 12 Inch; Housing Front Width 454 Millimeter; Backlight Lifetime 80000 Hour; Processor Type X86; Operating System Windows CE 6.0; Humidity Rating 90 Percent; Applicable Standard ATEX, IECEx, Class 1 Zone 2 Div 2, Class 1, Div 2; Number of Colors 16777216

MFG #: 6AV21241MC010AX0

EECO #: SIC6AV21241MC010AX0

Brand: Siemens
UPC #: 040892686098
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
43211500
Approval
UL (Canada and US), CE, C-TICK, KC
Material
Aluminum (Front Panel)
Resolution
1280 x 800 Pixel
Display Type
TFT
Power Rating
20 Watt
Backlight Type
MTBF
Mounting
Vertical
Enclosure
NEMA 4/4X, IP20/65
Operating Voltage
24 Volt DC
Operating Temperature
0 to 50 Deg C Vertical/0 to 40 Deg C Tilt Angle (Ambient)
Number of Function Keys
34.0000
Operator Interface Type
Keypad
Type
Color
Display Size
163.2 Millimeter Width x 261.1 Millimeter Height
Operating Current
0.85 Amp
Application Memory
12 Megabyte Flash/RAM
Front Panel Height
289 Millimeter
Communication Port Type
PROFINET, MPI, IRT, MRP, PROFIBUS, MODBUS
Features
  • Excellent HMI Functionality for Demanding Applications
  • Integrated High-End Functionality with Archives, Scripts, PDF/Word/Excel Viewer, Internet Explorer, Media Player and Web Server
  • Dimmable Displays from 0 to 100 Percent Via Profienergy, Via the HMI Project or Via a Controller
  • Modern Industrial Design
  • Upright Installation for all Touch Devices
  • Maximum Performance with Short Screen Refresh Times
  • Innovative Service and Commissioning Concept Operations
  • RoHS/REACH Compliant
