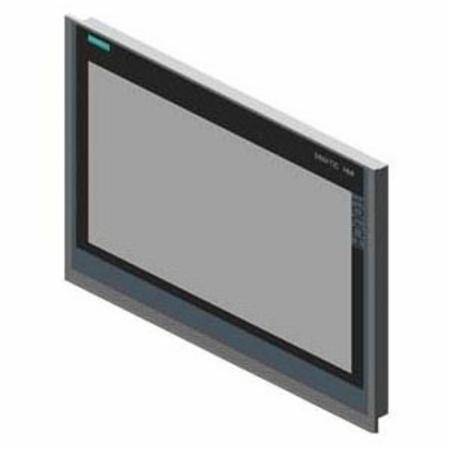

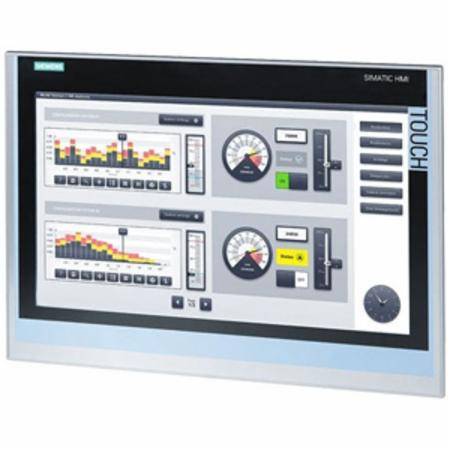

Siemens AG 6AV21240UC020AX0 SIPLUS HMI Comfort Panel

Name: Siemens AG 6AV21240UC020AX0 SIPLUS HMI Comfort Panel
Brand: Siemens
SKU: SIC6AV21240UC020AX0
Availability: InStock

Short Description

18.5" Display, 24 VDC, 1.3 A, 32 W, 1366 x 768 Resolution, NEMA 4/4X/IP20/IP65, Aluminum Front Panel, MTBF, TFT, Color, HMI Comfort Panel

HMI Comfort Panel; Type Color; Operating Voltage 24 Volt DC; Operating Current 1.3 Amp; Power Rating 32 Watt; Operator Interface Type Touchscreen; Display Type TFT; Display Size 18.5 Inch; Resolution 1366 x 768; Backlight Type MTBF; Application Memory 24 Megabyte Flash/RAM; Communication Port Type MPI/PROFIBUS, RS-422/RS-485; Operating Temperature 0 to 45 Deg C; Enclosure NEMA 4/4X, IP20/65; Material Aluminum (Front Panel); Mounting Vertical; Approval UL (Canada and US), CE, KC; RoHS Compliant; Processor Type X86; Software WINCC Comfort V11

MFG #: 6AV21240UC020AX0

EECO #: SIC6AV21240UC020AX0 SIC6AV21240UC020AX0

Brand: Siemens

UPC #: 040892952414

Attributes

Features

Documents

Product Information

Attributes

UNSPSC

32151703

Approval

UL (Canada and US), CE, KC

Material

Aluminum (Front Panel)

Resolution

1366 x 768

Display Type

TFT

Power Rating

32 Watt

Backlight Type

MTBF

Mounting

Vertical

Enclosure

NEMA 4/4X, IP20/65

Operating Voltage

24 Volt DC

Operating Temperature

0 to 45 Deg C

Operator Interface Type

Touchscreen

Type

Color

Display Size

18.5 Inch

Operating Current

1.3 Amp

Application Memory

24 Megabyte Flash/RAM

Communication Port Type

MPI/PROFIBUS, RS-422/RS-485

Features

Brilliant, Intelligent, User-Friendly
Excellent HMI Functionality for Demanding Application
Easy Project Transfer Via Standard Cable
Easy Project Transfer Via Standard Cable
Maximum Performance with Short Screen Refresh Times
RoHS Compliant
