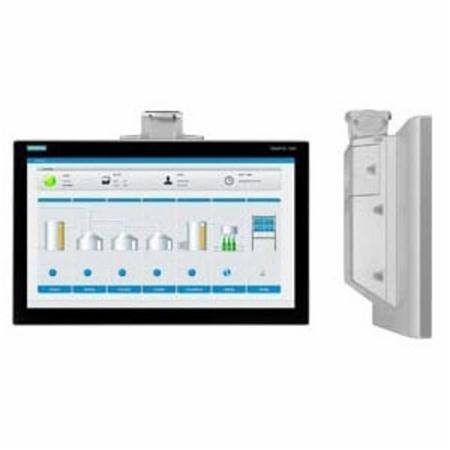

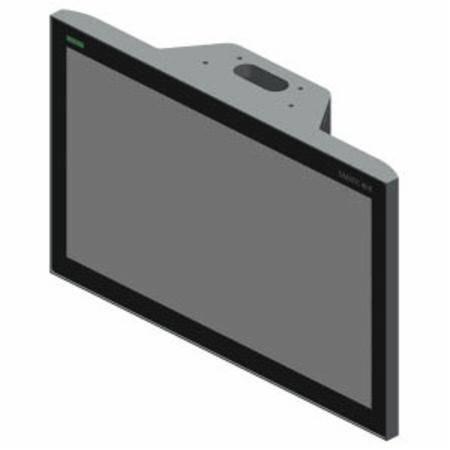

PrintSiemens AG 6AV21240MC240AX0 HMI Comfort Panel
12" TFT Color Display, 24 VDC, 1.5 A, 36 W, 1280 x 800 Pixel Resolution, NEMA 4/4X/IP65, Aluminum Front Panel, PROFINET/MPI/IRT/MRP/PROFIBUS/MODBUS, Windows CE Embedded, Support Arm, 24 MB, Touchscreen, HMI Comfort Panel
HMI Comfort Panel; Type Color; Operating Voltage 24 Volt DC; Operating Current 1.5 Amp; Power Rating 36 Watt; Operator Interface Type Touchscreen; Display Type TFT; Display Size 163.2 Millimeter Width x 261.1 Millimeter Height; Resolution 1280 x 800 Pixel; Backlight Type MTBF; Number of Touch Cells 40; Application Memory 12 Megabyte Flash/RAM; Communication Port Type PROFINET, MPI, IRT, MRP, PROFIBUS, MODBUS; Front Panel Height 226 Millimeter; Operating Temperature 0 to 45 Deg C Vertical/0 to 40 Deg C Tilt Angle (Ambient); Enclosure NEMA 4/4X, IP65; Material Aluminum (Front Panel); Mounting Vertical; Approval UL (Canada and US), CE, C-TICK; RoHS/REACH Compliant; Screen Diagonal Size 12 Inch; Housing Front Width 313 Millimeter; Backlight Lifetime 80000 Hour; Processor Type X86; Operating System Windows CE Embedded Compact; Humidity Rating 90 Percent; Includes Support Arm; Number of Colors 16777216
EECO #: SIC6AV21240MC240AX0
