Siemens AG 6AV21240MC010AX0 HMI Comfort Panel
Siemens AG 6AV21240MC010AX0 HMI Comfort Panel
Siemens AG 6AV21240MC010AX0 HMI Comfort Panel
Siemens AG 6AV21240MC010AX0 HMI Comfort Panel
Siemens AG 6AV21240MC010AX0 HMI Comfort Panel
Siemens AG 6AV21240MC010AX0 HMI Comfort Panel
Share Share Print Print
Siemens

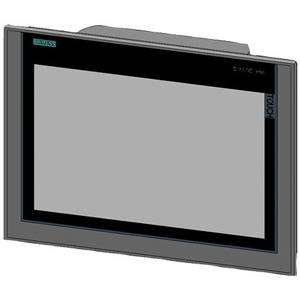

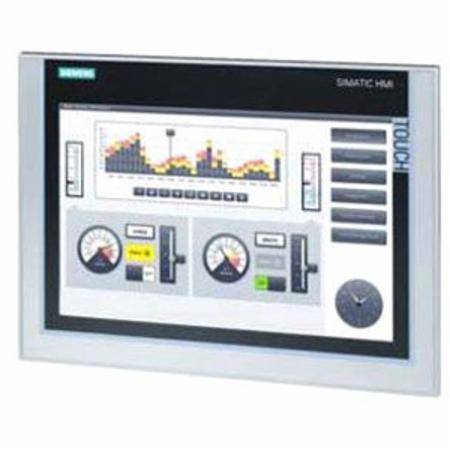

Siemens AG 6AV21240MC010AX0 HMI Comfort Panel

Short Description

12.1" Display, 24 VDC, 0.85 A, 20 W, 1280 x 800 Resolution, NEMA 4/4X/IP20/IP65, Aluminum Front Panel, MTBF, TFT, Color, HMI Comfort Panel

HMI Comfort Panel; Type Color; Operating Voltage 24 Volt DC; Operating Current 0.85 Amp; Power Rating 20 Watt; Operator Interface Type Touchscreen; Display Type TFT; Display Size 12.1 Inch; Resolution 1280 x 800; Backlight Type MTBF; Application Memory 12 Megabyte Flash/RAM; Communication Port Type PROFIBUS/MPI, USB, RS-422/RS-485; Operating Temperature 0 to 50 Deg C; Enclosure IP20/65, NEMA 4/4X; Material Aluminum (Front Panel); Approval UL (Canada and US), CE, C-TICK, KC; RoHS Compliant; OS Windows CE 6.0; Software WINCC Comfort/Advanced/Professional V11; Number of Colors 16777216

MFG #: 6AV21240MC010AX0

EECO #: SIC6AV21240MC010AX0

Brand: Siemens
UPC #: 040892686050
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
32151703
Approval
UL (Canada and US), CE, C-TICK, KC
Material
Aluminum (Front Panel)
Resolution
1280 x 800
Display Type
TFT
Power Rating
20 Watt
Backlight Type
MTBF
Enclosure
IP20/65, NEMA 4/4X
Operating Voltage
24 Volt DC
Operating Temperature
0 to 50 Deg C
Operator Interface Type
Touchscreen
Type
Color
Display Size
12.1 Inch
Operating Current
0.85 Amp
Application Memory
12 Megabyte Flash/RAM
Communication Port Type
PROFIBUS/MPI, USB, RS-422/RS-485
Features
  • Excellent HMI Functionality for Demanding Applications
  • Integrated High-End Functionality with Archives, Scripts, Pdf/Word/Excel Viewer, Internet Explorer, Media Player and Web Server
  • Dimmable Displays from 0 to 100 Percent Via Profienergy, Via the HMI Project or Via a Controller
  • Modern Industrial Design, Cast Aluminum Fronts for 7 Inch Upwards
  • Upright Installation for All Touch Devices
  • Maximum Performance with Short Screen Refresh Times All Keys have a Service Life of 2 Million Operations
  • RoHS Compliant
SIEMEAE27897_1_12
SIEMENE68253_2_37_2_40_2_47
Qty Unit price
Ea
1 $3,255.00

Slqt
1 $3,255.00

Stpk
1 $3,255.00

Unit
1 $3,255.00
