Siemens

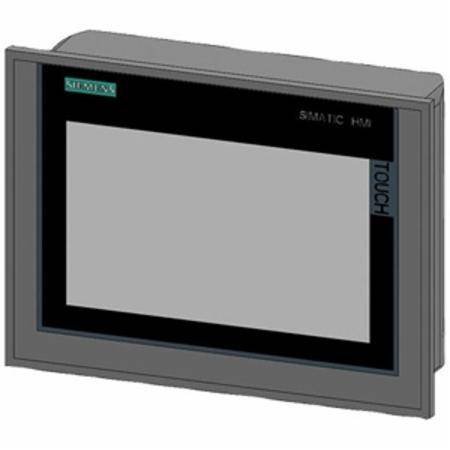

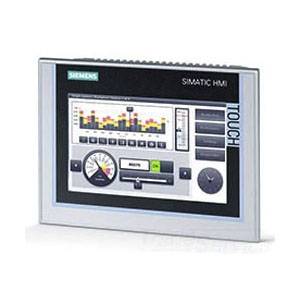

Siemens AG 6AV21240GC010AX0 HMI Comfort Panel

Short Description

7" Display, 24 VDC, 0.5 A, 12 W, 800 x 480 Resolution, NEMA 4/4X/IP20/IP65, Aluminum Front Panel, MTBF, TFT, Color, HMI Comfort Panel

HMI Comfort Panel; Type Color; Operating Voltage 24 Volt DC; Operating Current 0.5 Amp; Power Rating 12 Watt; Operator Interface Type Touchscreen; Display Type TFT; Display Size 7 Inch; Resolution 800 x 480; Backlight Type MTBF; Application Memory 12 Megabyte Flash/RAM; Communication Port Type PROFIBUS/MPI, USB, RS-422/RS-485; Operating Temperature 0 to 50 Deg C; Enclosure IP20/65, NEMA 4/4X; Material Aluminum (Front Panel); Approval UL (Canada and US), CE, C-TICK, KC; RoHS Compliant; OS Windows CE 6.0; Software WINCC Comfort/Advanced/Professional V11; Number of Colors 16777216

MFG #: 6AV21240GC010AX0

EECO #: SIC6AV21240GC010AX0

Brand: Siemens
UPC #: 040892783421
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
32151703
Approval
UL (Canada and US), CE, C-TICK, KC
Material
Aluminum (Front Panel)
Resolution
800 x 480
Display Type
TFT
Power Rating
12 Watt
Backlight Type
MTBF
Enclosure
IP20/65, NEMA 4/4X
Operating Voltage
24 Volt DC
Operating Temperature
0 to 50 Deg C
Operator Interface Type
Touchscreen
Type
Color
Display Size
7 Inch
Operating Current
0.5 Amp
Application Memory
12 Megabyte Flash/RAM
Communication Port Type
PROFIBUS/MPI, USB, RS-422/RS-485
Features
  • Excellent HMI Functionality for Demanding Applications
  • Integrated High-End Functionality with Archives, Scripts, Pdf/Word/Excel Viewer, Internet Explorer, Media Player and Web Server
  • Dimmable Displays from 0 to 100 Percent Via Profienergy, Via the HMI Project or Via a Controller
  • Modern Industrial Design, Cast Aluminum Fronts for 7 Inch Upwards
  • Upright Installation for All Touch Devices
  • Maximum Performance with Short Screen Refresh Times All Keys have a Service Life of 2 Million Operations
  • RoHS Compliant
SIEMEAE27895_1_12
SIEMENE68253_2_37_2_40_2_47
Qty Unit price
Ea
1 $1,465.00

Slqt
1 $1,465.00

Stpk
1 $1,465.00

Unit
1 $1,465.00
