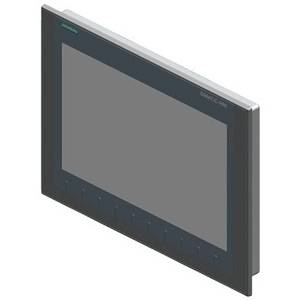

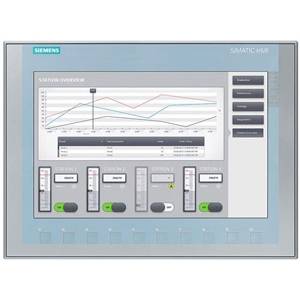

Siemens AG 6AV21232MB030AX0 HMI Basic Panel

Short Description

12" Display, 24 VDC, 510 mA, 12.2 W, 1280 x 800 Resolution, NEMA 4/4X/IP20/IP65, Plastic Front Panel, LED, MTBF, TFT, HMI Basic Panel

HMI Basic Panel; Operating Voltage 24 Volt DC; Operating Current 510 Milliamp; Power Rating 12.2 Watt; Operator Interface Type Touchscreen; Display Type TFT; Display Size 12 Inch; Resolution 1280 x 800; Backlight Type LED, MTBF; Application Memory 10 Megabyte Flash/RAM; Number of Function Keys 10; Communication Port Type PROFIBUS/MPI, USB, RS-485; Operating Temperature 0 to 50 Deg C; Enclosure IP20/65, NEMA 4/4X; Material Plastic Front Panel; Mounting Horizontal/Vertical; Approval UL (Canada and US), CE, C-TICK, KC; RoHS Compliant; Software WINCC Comfort/Advanced/Professional V13; Number of Colors 65536

MFG #: 6AV21232MB030AX0

EECO #: SIC6AV21232MB030AX0

Brand: Siemens
UPC #: 887621895433
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
32151703
Approval
UL (Canada and US), CE, C-TICK, KC
Material
Plastic Front Panel
Resolution
1280 x 800
Display Type
TFT
Power Rating
12.2 Watt
Backlight Type
LED, MTBF
Mounting
Horizontal/Vertical
Enclosure
IP20/65, NEMA 4/4X
Operating Voltage
24 Volt DC
Operating Temperature
0 to 50 Deg C
Number of Function Keys
10.0000
Operator Interface Type
Touchscreen
Display Size
12 Inch
Operating Current
510 Milliamp
Application Memory
10 Megabyte Flash/RAM
Communication Port Type
PROFIBUS/MPI, USB, RS-485
Features
  • The Innovative High-Resolution Widescreen Displays with 64000 Colors are also Suitable for Upright Installation and they Can be Dimmed Down to 100 Percent
  • The Innovative Operator Interface with Improved Usability Opens up a Diverse Range of Options Thanks to New Controls and Graphics
  • The New USB Interface Enables the Connection of Keyboard, Mouse or Barcode Scanner and Supports the Simple Archiving of Data on a USB Stick
  • RoHS Compliant
SIEMENE68253_2_16_2_19
SIEMNSE47368_1_9
Qty Unit price
Ea
1 $1,850.00

Slqt
1 $1,850.00

Stpk
1 $1,850.00

Unit
1 $1,850.00
