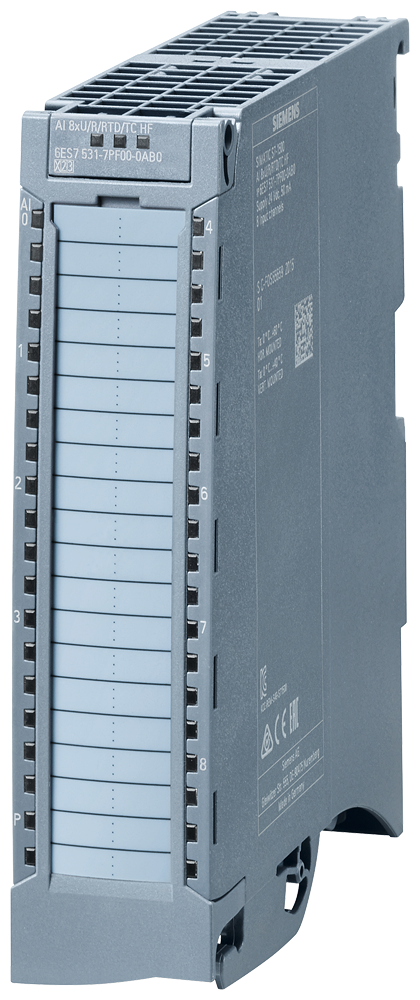

Siemens 6AG15317PF004AB0 Analog Input Module, 8 Inputs, +/-500 mV, 4 to 20 mA, 0 to 6000 Ohm Signal Range, 16 bit Resolution, 0.1 % Accuracy
Share Share Print Print
Siemens

Siemens 6AG15317PF004AB0 Analog Input Module, 8 Inputs, +/-500 mV, 4 to 20 mA, 0 to 6000 Ohm Signal Range, 16 bit Resolution, 0.1 % Accuracy

Short Description

Enhance your automation projects with the Siemens 6AG15317PF004AB0 Analog Input Module, featuring 8 inputs and exceptional accuracy. Perfect for a wide range of signal applications!Enhanced by AI

Siemens Analog Input Module, 8 Inputs, +/-500 mV, 4 to 20 mA, 0 to 6000 Ohm Signal, 16 bit Resolution, 0.1 % Accuracy, 24 VDC, 0.85 W Power, 0 to 60 deg C, 147 mm H x 35 mm W x 129 mm D Dimensions

MFG #: 6AG15317PF004AB0

EECO #: SIC6AG15317PF004AB0

Brand: Siemens
UPC #: 804766353109
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
32151705
Accuracy
0.1
Resolution
16
Application
For SIPLUS S7-1500 controller
Power Rating
0.85
Voltage Rating
24
Number of Inputs
8.0000
Temperature Rating
0 to 60
Dimensions
147 mm H x 35 mm W x 129 mm D
Signal Range
+/-500 mV, 4 to 20 mA, 0 to 6000 Ohm
Features
  • +/-500 mV, +/-250 mV, +/-50 mV, +/-80 mV, +/-25 mV, +/-1 V, +/-2.5 V, 1 to 5 V, +/-5 V, +/-10 V voltage, 0 to 20 mA, 4 to 20 mA, +/-20 mA current, 0 to 150 Ohm, 0 to 300 Ohm, 0 to 600 Ohm, 0 to 6000 resistor signal range
  • 0 to 60 deg C horizontal installation, 0 to 40 deg C vertical installation operating temperature
