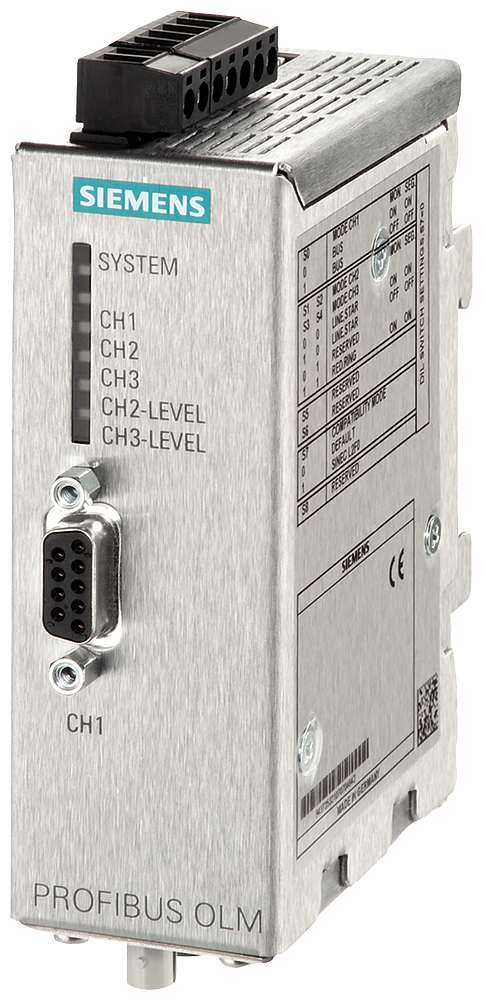

Siemens 6AG15033CB002AA0 Siplus NET Optical Link Module, 24 VDC
Share Share Print Print
Siemens

Siemens 6AG15033CB002AA0 Siplus NET Optical Link Module, 24 VDC

Short Description

Enhance your connectivity with the Siemens 6AG15033CB002AA0 Siplus NET Optical Link Module. Designed for reliability and efficiency, this 24 VDC module features a robust stainless steel construction and operates in a wide temperature range of -25 to 60 degrees Celsius. Perfect for your industrial needs!Enhanced by AI

Siemens Optical Link Module, Series: Siplus NET, 24 VDC, 2-Pole Plug Terminal, -25 to 60 deg C, Stainless Steel, 39.5 mm W x 74.5 mm D x 112 mm H

MFG #: 6AG15033CB002AA0

EECO #: SIC6AG15033CB002AA0

Brand: Siemens
UPC #: 040892549003
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
32151705
Material
Stainless Steel
Application
For networking between buildings using glass fiber-optic cables, mixed networks with electrical and optical segments, networks covering a wide area and networks with high availability requirements
Terminal Type
2-Pole Plug
Voltage Rating
24
Temperature Rating
-25 to 60
Series
Siplus NET
Dimensions
39.5 mm W x 74.5 mm D x 112 mm H
Features
  • Construction of optical PROFIBUS networks (line, star, ring) with glass, PCF and plastic fiber optic cables
  • High availability can be achieved using a redundant power supply and redundant cable routing
  • Function monitoring by means of signaling contact
  • All PROFIBUS data transmission rates from 9.6 Kbps to 12 Mbps including 45.45 Kbps for PROFIBUS PA
  • Monitoring of the fiber optic cable routes on LEDs for channel monitoring or using a voltmeter across measurement terminals
  • High availability of the network due to redundant optical ring
  • Fast fault localization due to signaling contact, LED, channel monitoring LED and measurement terminals
  • Large range due to use of glass fiber optic cables in lengths of up to 15 km
