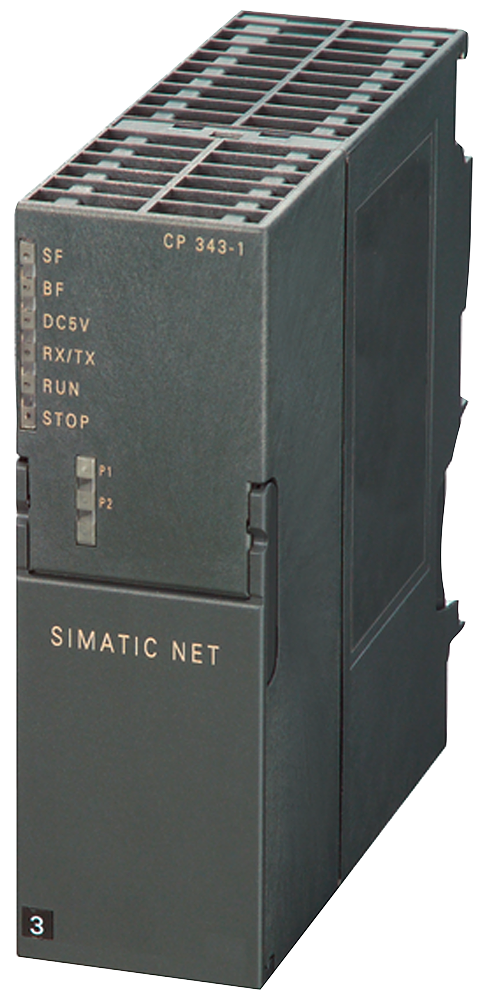

Siemens 6AG13431EX307XE0 Communication Processor, 5/24 VDC, 0.2/0.16 A, 5.8 W
Share Share Print Print
Siemens

Siemens 6AG13431EX307XE0 Communication Processor, 5/24 VDC, 0.2/0.16 A, 5.8 W

Short Description

Enhance your automation capabilities with the Siemens 6AG13431EX307XE0 Communication Processor. Designed for versatility and reliability, this compact processor operates within a wide temperature range and delivers efficient power management for your communication needs.Enhanced by AI

Siemens Communication Processor, 5/24 VDC, 0.2/0.16 A, 5.8 W Power Consumption, 0.2 A Bus Current, Plugable Terminal, -25 to 70 deg C, 125 mm H x 40 mm W x 120 mm D Dimensions

MFG #: 6AG13431EX307XE0

EECO #: SIC6AG13431EX307XE0

Brand: Siemens
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
32151705
Terminal Type
Plugable
Voltage Rating
5/24
Temperature Rating
-25 to 70
Dimensions
125 mm H x 40 mm W x 120 mm D
Amperage Rating
0.2/0.16
Features
  • 10 to 100 Mbit/s at the 1st interface transfer rate
  • 2 interfaces
  • 0.2 A from backplane bus/at DC/at 5 VAC/typical, 0.16 A from external supply voltage/at DC/at 24 VAC/typical, 0.2 A from external supply voltage/at DC/at 24 VAC/maximum
  • -40 to 70 deg C during storage/transport
  • -25 to 70 deg C at 1080 hPa to 795 hPa (-1000 m to 2000 m)/-25 to 60 deg C at 795 hPa to 658 hPa (2000 m to 3500 m)/-25 to 50 deg C at 658 hPa to 540 hPa (+3500 to 5000 m) ambient condition/relating to ambient temperature air pressure installation altitude
  • 100% relative humidity/with condensation/maximum
  • IP20 degree of protection
  • Compact module S7-300 single width module format
  • Ring redundancy, protocol/is supported/media redundancy protocol (MRP), ACL - IP-based, switch-off of non-required services, product function/SICLOCK support function
  • NTP protocol/IS supported
  • RJ45 port at the 1st interface/according to industrial Ethernet and RJ45 port of industrial Ethernet interface
  • 2-pole pluggable terminal block for power supply
