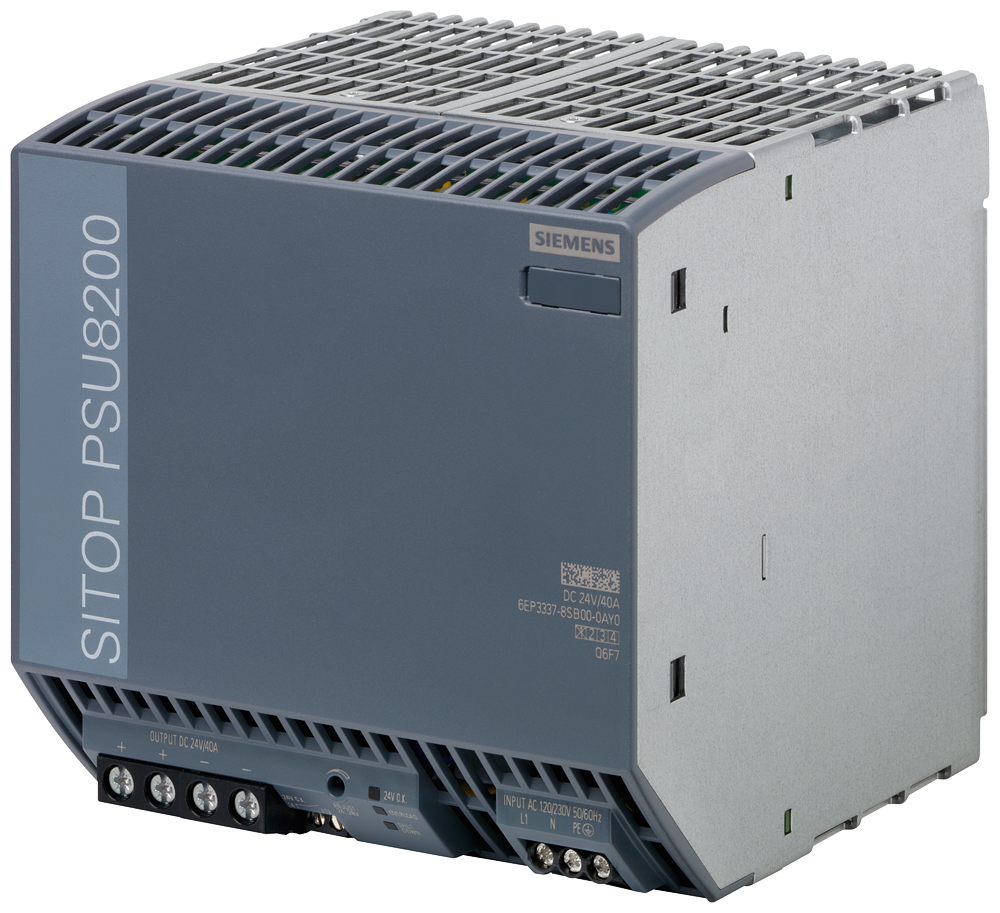

Siemens SIPLUS 6AG13378SB007AY0 PSU8200 Stabilized Power Supply Module, 120/230 VAC Input, 24 VDC Output, 9/15 A Input, 40 A Output
Siemens SIPLUS 6AG13378SB007AY0 PSU8200 Stabilized Power Supply Module, 120/230 VAC Input, 24 VDC Output, 9/15 A Input, 40 A Output
Siemens SIPLUS 6AG13378SB007AY0 PSU8200 Stabilized Power Supply Module, 120/230 VAC Input, 24 VDC Output, 9/15 A Input, 40 A Output
Siemens SIPLUS 6AG13378SB007AY0 PSU8200 Stabilized Power Supply Module, 120/230 VAC Input, 24 VDC Output, 9/15 A Input, 40 A Output
Share Share Print Print
Siemens

Siemens SIPLUS 6AG13378SB007AY0 PSU8200 Stabilized Power Supply Module, 120/230 VAC Input, 24 VDC Output, 9/15 A Input, 40 A Output

Short Description

Experience reliable power management with the Siemens SIPLUS PSU8200 Stabilized Power Supply Module. Designed for versatility, it provides a robust 24 VDC output from a 120/230 VAC input, ensuring optimal performance for your applications.Enhanced by AI

Siemens SIPLUS Stabilized Power Supply Module, Series: PSU8200, 120/230 VAC Input, 24 VDC Output, 9/15 A Input Current, 40 A Output, 82 W Power Dissipation, 45 to 65 Hz Line Frequency, 960 W Input Power, 1/2 ph, Screw Terminal, Snaps onto DIN Rail Mount, IP20, 0 to 60 deg C, 145 mm H x 145 mm W x 150 mm D

MFG #: 6AG13378SB007AY0

EECO #: SIC6AG13378SB007AY0

Brand: Siemens
UPC #: 804766749438
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
32151705
Temperature Rating
0 to 60
Series
PSU8200
Dimensions
145 mm H x 145 mm W x 150 mm D
Input Current
9/15
Input Voltage
120/230
Output Current
40
Output Voltage
24
Specifications
45 to 65 Hz Line Frequency, 960 W Input Power, 1/2 ph, Screw Terminal, Snaps onto DIN Rail Mount, IP20
Power Dissipation
82
Features
  • 15 A at 120 VAC, 9 A at 230 VAC input current
  • With conformal coating based on 6EP3337-8SB00-0AY0
Siemens_6AG13378SB007AY0_Specification_Sheet
