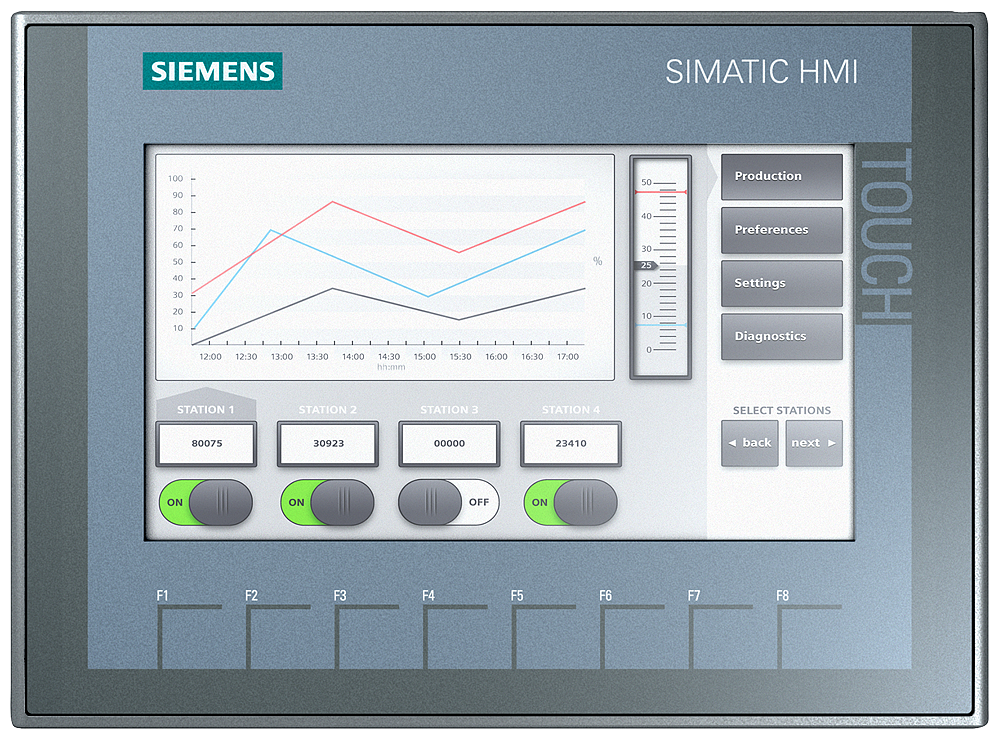

Siemens SIPLUS HMI 6AG11232GA032AX0 KTP700 2nd Generation Basic Panel, 24 VDC, 230 mA, 5.5 W, 7 in TFT Widescreen/LED Backlighting Display, 8 Keys, 1 x RS485, 1 x RS422, 1 x USB, PROFIBUS

With their fully developed HMI basic functions, 2nd generation SIPLUS basic panels are the ideal entry level series for simple HMI applications. The device family offers panels with 4 in, 7 in, 9 in and 12 in displays, as well as combined key and touch operation. The innovative high-resolution widescreen displays with 64000 colors are also suitable for upright installation and they can be dimmed down to 100%. The innovative operator interface with improved usability opens up a diverse range of options thanks to new controls and graphics. The new USB interface enables the connection of keyboard, mouse or barcode scanner and supports the simple archiving of data on a USB stick. The integrated Ethernet or RS485/422 interface (version-specific) enables simple connection to the controller.

Siemens SIPLUS HMI Basic Panel, 2nd Generation, Series: KTP700, 24 VDC, 230 mA, 5.5 W, TFT Widescreen/LED Backlighting, 7 in, 8 Keys, 1 x RS485, 1 x RS422, 1 x USB, PROFIBUS Communication Ports, 800 x 480 pixel, STEP 7 Basic (TIA Portal), STEP 7 Professional (TIA Portal), WinCC Basic (TIA Portal), WinCC Comfort (TIA Portal), WinCC Advanced (TIA Portal), WinCC Professional (TIA Portal) Software, Memory: 10 MB, 85.9 mm H x 154.1 mm W Viewing Area, -20 to 50 deg C, Plastic, 158 mm H x 214 mm W x 39 mm D
