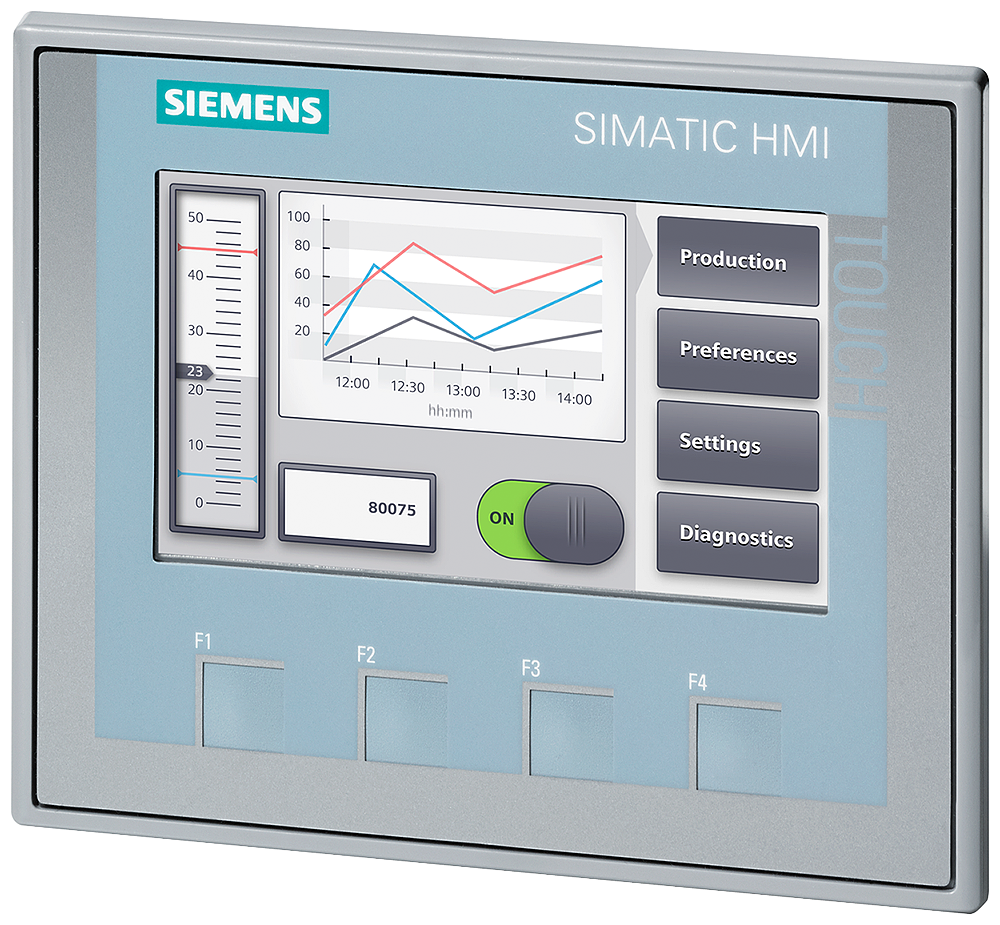

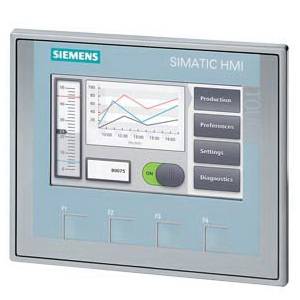

Siemens SIPLUS HMI 6AG11232DB032AX0 KTP400 2nd Generation Basic Panel, 24 VDC, 125 mA, 3 W, 4.3 in TFT Widescreen/LED Backlighting Display, 4 Keys, 1 x USB, Industrial Ethernet, PROFINET
Siemens SIPLUS HMI 6AG11232DB032AX0 KTP400 2nd Generation Basic Panel, 24 VDC, 125 mA, 3 W, 4.3 in TFT Widescreen/LED Backlighting Display, 4 Keys, 1 x USB, Industrial Ethernet, PROFINET
Siemens SIPLUS HMI 6AG11232DB032AX0 KTP400 2nd Generation Basic Panel, 24 VDC, 125 mA, 3 W, 4.3 in TFT Widescreen/LED Backlighting Display, 4 Keys, 1 x USB, Industrial Ethernet, PROFINET
Siemens SIPLUS HMI 6AG11232DB032AX0 KTP400 2nd Generation Basic Panel, 24 VDC, 125 mA, 3 W, 4.3 in TFT Widescreen/LED Backlighting Display, 4 Keys, 1 x USB, Industrial Ethernet, PROFINET
Share Share Print Print
Siemens

Siemens SIPLUS HMI 6AG11232DB032AX0 KTP400 2nd Generation Basic Panel, 24 VDC, 125 mA, 3 W, 4.3 in TFT Widescreen/LED Backlighting Display, 4 Keys, 1 x USB, Industrial Ethernet, PROFINET

Short Description

Experience seamless control and monitoring with the Siemens SIPLUS HMI KTP400 2nd Generation Basic Panel. Featuring a vibrant 4.3-inch TFT widescreen display and robust connectivity options, this panel is designed for industrial environments, ensuring efficiency and reliability.Enhanced by AI

Siemens SIPLUS HMI Basic Panel, 2nd Generation, Series: KTP400, 24 VDC, 125 mA, 3 W, TFT Widescreen/LED Backlighting, 4.3 in, 4 Keys, 1 x USB, Industrial Ethernet, PROFINET Communication Ports, 480 x 272 pixel, STEP 7 Basic (TIA Portal), STEP 7 Professional (TIA Portal), WinCC Basic (TIA Portal) Software, Memory: 10 MB, 53.9 mm H x 95 mm W Viewing Area, -20 to 60 deg C, Plastic, 116 mm H x 141 mm W x 33 mm D

MFG #: 6AG11232DB032AX0

EECO #: SIC6AG11232DB032AX0

Brand: Siemens
UPC #: 804766083778
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
43211506
Material
Plastic
Display Type
TFT Widescreen/LED Backlighting
Temperature Rating
-20 to 60
Type
2nd Generation
Memory
10
Series
KTP400
Software
STEP 7 Basic (TIA Portal), STEP 7 Professional (TIA Portal), WinCC Basic (TIA Portal)
Dimensions
116 mm H x 141 mm W x 33 mm D
Display Size
4.3
Number of Keys
4
Communication Ports
1 x USB, Industrial Ethernet, PROFINET
Features
  • Model: Siemens SIPLUS HMI KTP400, 2nd Generation
  • Power Supply: 24 VDC, 125 mA, 3 W
  • Display: 4.3 inch TFT Widescreen with LED Backlighting
  • Resolution: 480 x 272 pixels
  • Input Method: 4 tactile keys
  • Connectivity: 1 x USB, Industrial Ethernet, PROFINET Communication Ports
  • Memory: 10 MB
  • Operating Temperature: -20 to 60 °C
  • Material: Durable plastic housing
  • Dimensions: 116 mm H x 141 mm W x 33 mm D
  • Viewing Area: 53.9 mm H x 95 mm W
  • Compatible Software: STEP 7 Basic, STEP 7 Professional, WinCC Basic (all via TIA Portal)

Enhanced by AI
