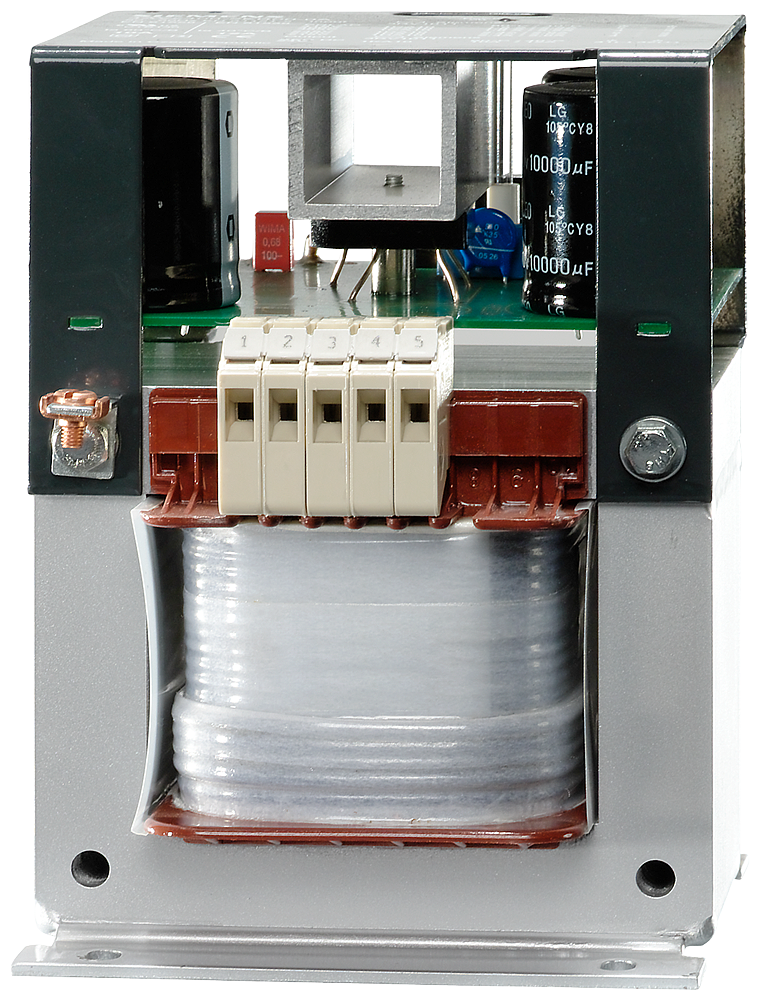

Siemens SIDAC 4AV2400-2EB00-0A Isolating Non-Stabilized Power Supply Transformer, 400/230 VAC Primary, 24 VDC Secondary, 0.24 kW Power Rating, 50/60 Hz, 1 Phase
Share Share Print Print
Siemens

Siemens SIDAC 4AV2400-2EB00-0A Isolating Non-Stabilized Power Supply Transformer, 400/230 VAC Primary, 24 VDC Secondary, 0.24 kW Power Rating, 50/60 Hz, 1 Phase

Short Description

Power supplies 4AV2 and 4AV4 supply non-stabilized 24 VDC on the basis of 1 ph safety transformers with downstream rectifiers and capacitor filtering. Rated output voltage U2N 24 VDC in accordance with EN 61131-2 and SIMATIC with input voltage +6 to -10% and load 0 to 100%. Safety transformer in accordance with EN 61558-2-6, degree of protection IP00.

Siemens SIDAC Power Supply Transformer, Isolating Non-Stabilized, 400/230 VAC Primary, 24 VDC Secondary, 0.24 kW Power, 50/60 Hz Frequency, 1 ph, 10/12 A Maximum, Screw/Tab Terminal Connection, Threaded Mounting, IP00 Enclosure, 60 deg C, 120 mm W x 128 mm D x 170 mm H Dimensions
MFG #: 4AV2400-2EB00-0A

EECO #: SIC4AV24002EB000A

Brand: Siemens
UPC #: 754554888194
Attributes
Features
Documents
Product Information
Attributes
Phase
1
UNSPSC
39121026
Application
Residential and Industrial Applications
Power Rating
0.24
Mounting Type
Threaded
Enclosure Type
IP00
Connection Type
Screw/Tab Terminal
Frequency Rating
50/60
Temperature Rating
60
Type
Isolating Non-Stabilized
Dimensions
120 mm W x 128 mm D x 170 mm H
Primary Voltage
400/230
Secondary Voltage
24
Features
  • Filtered for the supply of electronic controls
