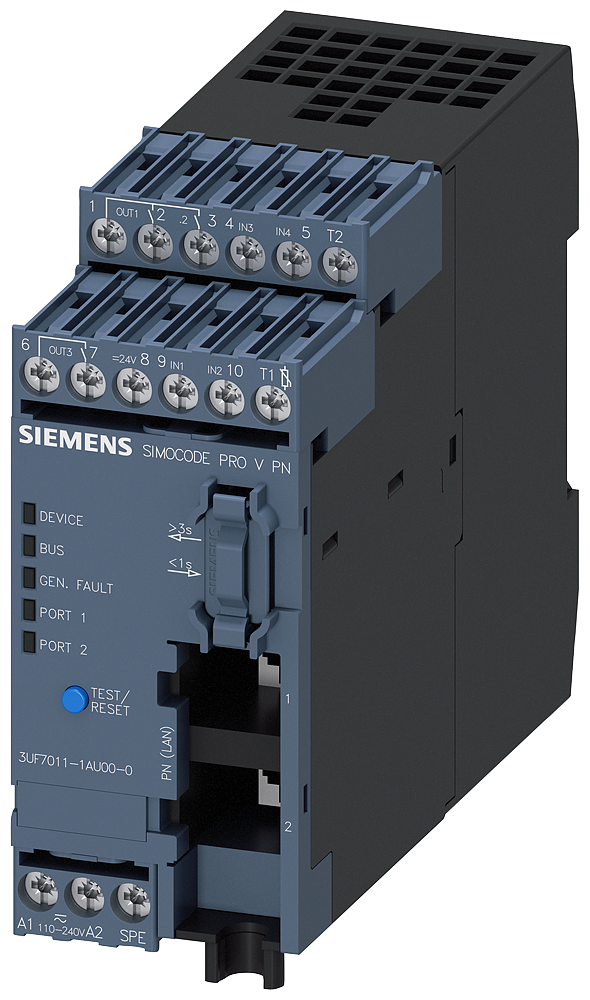

SIRIUS 3UF70111AU000 3UF7 SIMOCODE Pro V PN SIMOCODE Pro Basic Unit, Soft Starter Control/Data Acquisition/Diagnostics/Password Protection/Test/Maintenance Function, Parameterizable Input, Relay Output

Short Description

Elevate your control systems with the SIRIUS 3UF70111AU000 SIMOCODE Pro Basic Unit. This versatile device offers soft starter control, data acquisition, diagnostics, and more, all in a compact design. Experience enhanced functionality with parameterizable inputs and reliable relay outputs, making it ideal for your automation needs.Enhanced by AI

SIRIUS, 3UF70111AU000, SIMOCODE Pro Basic Unit, Series: 3UF7 SIMOCODE Pro V PN, Function: Soft Starter Control/Data Acquisition/Diagnostics/Password Protection/Test/Maintenance, Parameterizable Input, Relay Output, 110 to 240 V, 50/60 Hz Frequency, 9-Pin SUB-D Socket/Screw Terminal Electrical Connections, IP20 Enclosure, -25 to 60 deg C, Threaded/Snap-On Mounting, 45 mm W x 124 mm D x 111 mm H Dimensions

MFG #: 3UF70111AU000

EECO #: SIC3UF70111AU000

Brand: SIRIUS
UPC #: 887621004187
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121521
Input Type
Parameterizable
Output Type
Relay
Mounting Type
Threaded/Snap-On
Enclosure Type
IP20
Voltage Rating
110 to 240
Frequency Rating
50/60
Temperature Rating
-25 to 60
Series
3UF7 SIMOCODE Pro V PN
Function
Soft Starter Control/Data Acquisition/Diagnostics/Password Protection/Test/Maintenance
Dimensions
45 mm W x 124 mm D x 111 mm H
Features
  • 100 Mbit/sec maximum transfer rate
  • 0.8 to 1.2 Nm tightening torque
  • 5 to 95% relative humidity
  • 4-inputs for thermistor connection, 3-outputs
  • 400 to 800 Ohm response value of thermoresistor, 500 to 650 Ohm release value of thermoresistor
