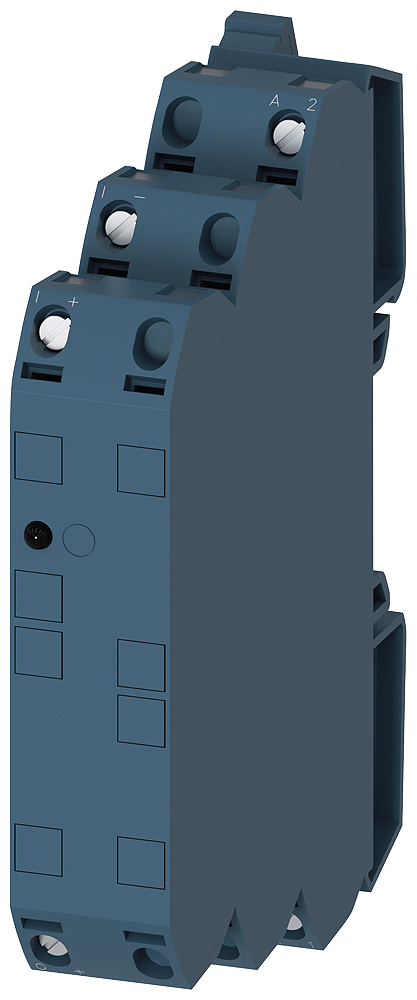

Siemens 3RS70051FW00 Multi-Range Signal Converter, 30 VAC/VDC Input, 0 to 10 VAC/VDC Output, 0.5 W Power Rating, 3 Channel

Short Description

3RS70 signal converters are mainly used to electrically isolate and convert analog signals. The frequency outputs implemented offer a further application. Only minimal space required on the standard mounting rail due to the narrow design of just 6.2 mm and reduced depth and height of the enclosure, ideal for flat switchboxes and control cabinets with small gaps between tiers. Reduced device variance resulting from exclusive use of 3-way separation. For the 3-way separation, each circuit is galvanically separated from the other circuits, i.e. Input, output, and supply voltage do not have equipotential bonding.

Siemens Signal Converter, Multi-Range, 3 Channels, 30 VAC/VDC Input, 0 to 10 VAC/VDC Output, 4 to 20 mA Input Current, 4 to 20 mA Output Current, 0.5 W Power, Screw Terminal Connection, Snap-On Mounting, 6 ms Response, 0.1 % Accuracy, Specifications: Snap-On Mount, 93 mm H x 17.5 mm W x 72.5 mm D Dimensions

MFG #: 3RS70051FW00

EECO #: SIC3RS70051FW00

Brand: Siemens
UPC #: 804766215681
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121008
Accuracy
0.1
Application
For isolation of analog signals, conversion of analog signals to a frequency, conversion of non-standard signals to standard signals and overvoltage protection of analog inputs
Power Rating
0.5
Mounting Type
Snap-On
Response Time
6
Connection Type
Screw Terminal
Number of Channels
3
Type
Multi-Range
Dimensions
93 mm H x 17.5 mm W x 72.5 mm D
Input Current
4 to 20
Input Voltage
30
Output Current
4 to 20
Output Voltage
0 to 10
Specifications
Snap-On Mount
Features
  • Simplified logistics and inventory management thanks to few device variants
  • Input, output and supply voltage have no potential link as every circuit is isolated from the others
  • Easy-to-read laser inscription
  • Appearance consistent with other Siemens devices in control cabinet
  • Resistant to dirt and yellowing
