Siemens SIMATIC 3RK71366SC000BC1 ET 200SP AS-Interface Failsafe Communication Module, 24/30 VDC, 70 mA
Share Share Print Print
Siemens

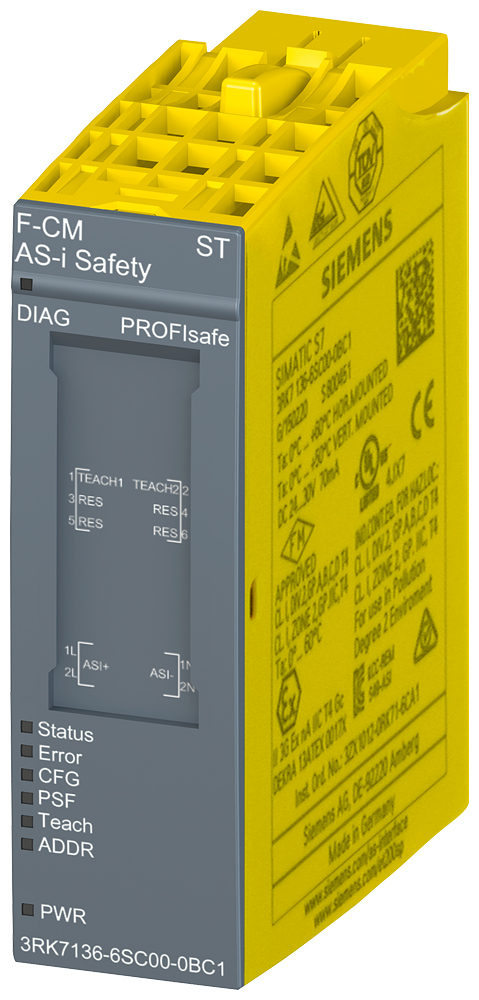

Siemens SIMATIC 3RK71366SC000BC1 ET 200SP AS-Interface Failsafe Communication Module, 24/30 VDC, 70 mA

Short Description

Enhance your automation systems with the Siemens SIMATIC 3RK71366SC000BC1 ET 200SP AS-Interface Failsafe Communication Module. Designed for reliability and efficiency, this module operates at 24/30 VDC and is perfect for ensuring seamless communication in your industrial applications.Enhanced by AI

Siemens SIMATIC Communication Module, AS-Interface Failsafe, Series: ET 200SP, 24/30 VDC, 70 mA, 2.1 W Power Dissipation, 30 mA Bus Current, 0 to 50 deg C Vertical, 0 to 60 deg C Horizontal, 73 mm H x 20 mm W x 58 mm D Dimensions

MFG #: 3RK71366SC000BC1

EECO #: SIC3RK71366SC000BC1

Brand: Siemens
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121521
Voltage Rating
24/30
Temperature Rating
0 to 50 deg C Vertical, 0 to 60 deg C Horizontal
Type
AS-Interface Failsafe
Series
ET 200SP
Dimensions
73 mm H x 20 mm W x 58 mm D
Amperage Rating
70
Power Dissipation
2.1
Features
  • Gateway between PROFIsafe and ASIsafe, without master functionality
  • Expands a standard AS-i network to include safety related communication (ASIsafe)
  • Transfer of safety related digital I/O values in the cyclic process image
  • Monitoring of up to 31 safety related input slaves
  • Control of up to 16 safety related AS-i output slaves or switch-off groups
  • Power supplied from the AS-i voltage
  • Input delay of 0 to 150 ms can be assigned for each channel
  • Startup test can be activated for each channel
  • Discrepancy monitoring can be configured for each channel
  • Sequence monitoring can be set for each channel
  • Channel wise passivation
  • Test for 0 signal before reintegration
  • 8 LED displays for status and error diagnostics
