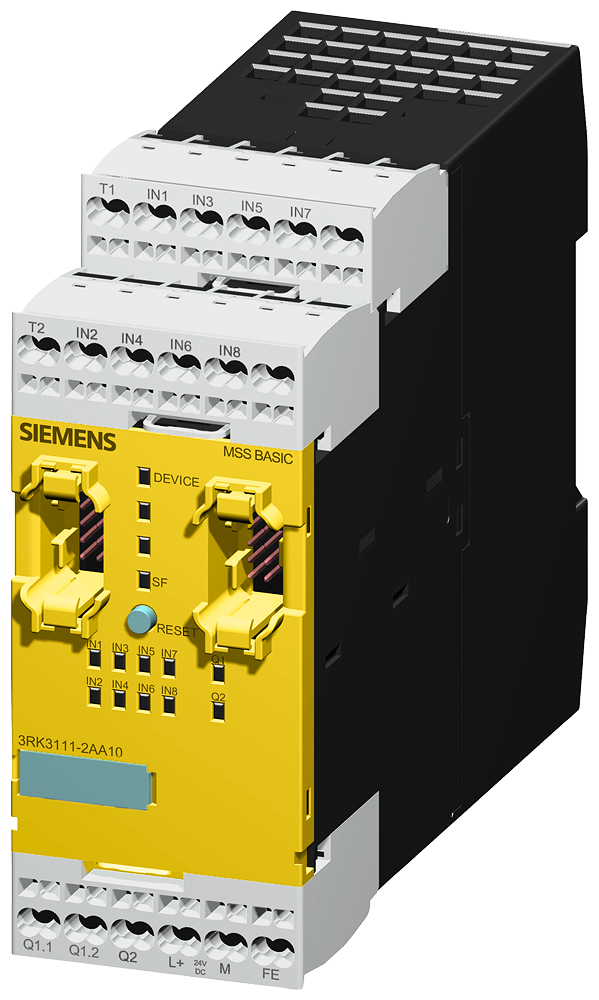

Siemens 3RK3111-2AA10 Safety Basic System Central Module, 8 Inputs, 2 Outputs, 1 kV Signal Range
Share Share Print Print
Siemens

Siemens 3RK3111-2AA10 Safety Basic System Central Module, 8 Inputs, 2 Outputs, 1 kV Signal Range

Short Description

Enhance your safety systems with the Siemens 3RK3111-2AA10 Central Module, featuring 8 inputs and 2 outputs for reliable performance in demanding environments. With a robust 1 kV signal range and compact design, this module is perfect for your automation needs.Enhanced by AI

Siemens Central Module, Safety Basic System, Series: 3RK3, 8 Inputs, 2 Outputs, 1 kV Signal, 24 VDC, 1.5 A, 4.5 W Power, Spring Loaded Terminal, -20 to 60 deg C, 113 mm H x 45 mm W x 124 mm D Dimensions

MFG #: 3RK3111-2AA10

EECO #: SIC3RK31112AA10

Brand: Siemens
UPC #: 754554961934
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
32151705
Power Rating
4.5
Terminal Type
Spring-Loaded
Voltage Rating
24
Number of Inputs
8.0000
Temperature Rating
-20 to 60
Type
Safety Basic System
Series
3RK3
Dimensions
113 mm H x 45 mm W x 124 mm D
Signal Range
1
Amperage Rating
1.5
Number of Outputs
2
Features
  • Emergency stop, protective door monitoring, electro sensitive protective equipment, selector switch, two hand operator panel, enabling switch evaluation, pressure sensitive mat monitoring, monitored start-up, two hand control acc to EN 574 function
  • 300 function blocks typical, 300 VAC insulation voltage rated, 3 deg of pollution
  • 2500 VAC surge voltage resistance rated, 1.685 A consumed current for rated value of supply voltage
  • 185 mA without semiconductor output, IP20 enclosure and terminal protection class
  • 15 g/11 ms shock-resistance, 1000 1/hr operating frequency maximum, 5 to 500 Hz, 0.75 mm vibration resistance according to IEC 60068-2-6
  • Suitability for use monitoring of floating sensors, monitoring of non-floating sensors, position switch monitoring, emergency off circuit monitoring, valve monitoring, opto-electronic protection device monitoring, proximity switch monitoring, safety related circuits
  • 32-bit for input and output with PROFIBUS-DP®
  • Parameterizable inputs, parameterizable outputs product function
  • 8 safety related, 0 non-safety related inputs, 2 safety related 2-channel, 2 for testing contact based sensors outputs
  • 0 to 150 ms input delay time 420 ms recovery time of the safe outputs
  • Vertical snap mounted to din rail/screw mounted with additional push-in lug mounting type
  • 20 to 14 AWG solid and stranded number as coded connectable conductor cross-section
  • 100 Ohm DC resistance of the cable maximum
  • Finger safe protection against electrical shock
  • -40 to 85 deg C storage/transport
  • 70 to 106 kPa air pressure according to SN 31205
SIRIUS_3RK3111_2AA10_Datasheet
