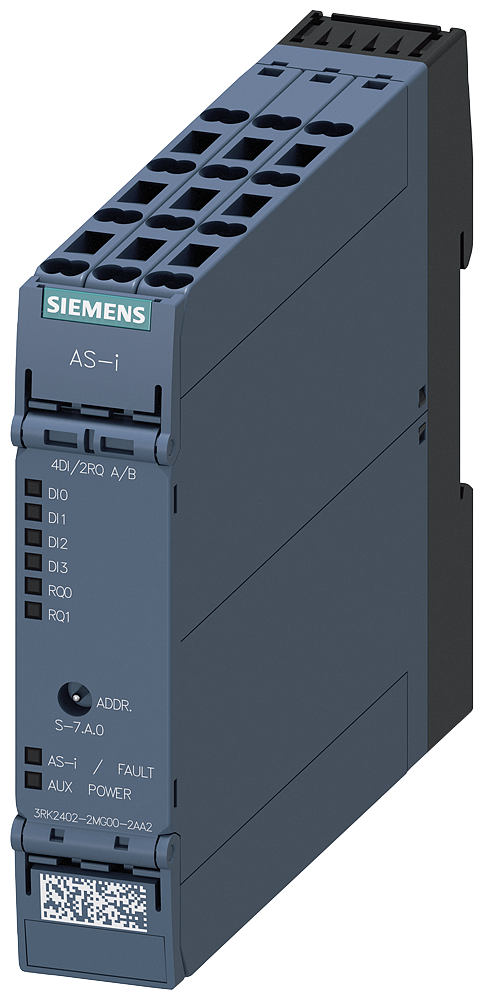

Siemens 3RK24022MG002AA2 AS-I SlimLine Compact Digital Input/Output Module, 4 Inputs, 2 Outputs
Share Share Print Print
Siemens

Siemens 3RK24022MG002AA2 AS-I SlimLine Compact Digital Input/Output Module, 4 Inputs, 2 Outputs

Short Description

Enhance your automation setup with the Siemens 3RK24022MG002AA2 AS-I SlimLine Compact Digital Input/Output Module. Featuring 4 inputs and 2 outputs, this module is designed for efficiency and reliability in a compact form factor. Enhanced by AI

Siemens Digital Input/Output Module, Compact, Series: AS-I SlimLine, 4 Inputs, 2 Outputs, 24 VDC, 270 mA, Spring Loaded Terminal, -25 to 70 deg C, 100 mm H x 22.5 mm W x 120 mm D Dimensions

MFG #: 3RK24022MG002AA2

EECO #: SIC3RK24022MG002AA2

Brand: Siemens
UPC #: 804766359866
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
32151705
Application
For use in the control cabinet and 3-wire sensor
Terminal Type
Spring-Loaded
Voltage Rating
24
Number of Inputs
4.0000
Temperature Rating
-25 to 70
Type
Compact
Series
AS-I SlimLine
Dimensions
100 mm H x 22.5 mm W x 120 mm D
Amperage Rating
270
Number of Outputs
2
Features
  • Model: Siemens AS-I SlimLine Compact Digital Input/Output Module
  • Input Channels: 4 Digital Inputs
  • Output Channels: 2 Digital Outputs
  • Voltage Rating: 24 VDC
  • Current Rating: 270 mA
  • Connection Type: Spring Loaded Terminal
  • Operating Temperature Range: -25 to 70 degrees Celsius
  • Dimensions: 100 mm H x 22.5 mm W x 120 mm D

Enhanced by AI
