Siemens 3RK24001DQ001AA3 3RK A/B Slave Binary Constant AS-Interface SlimLine Compact Digital I/O Module, 4 Inputs, 4 Outputs
Share Share Print Print
Siemens

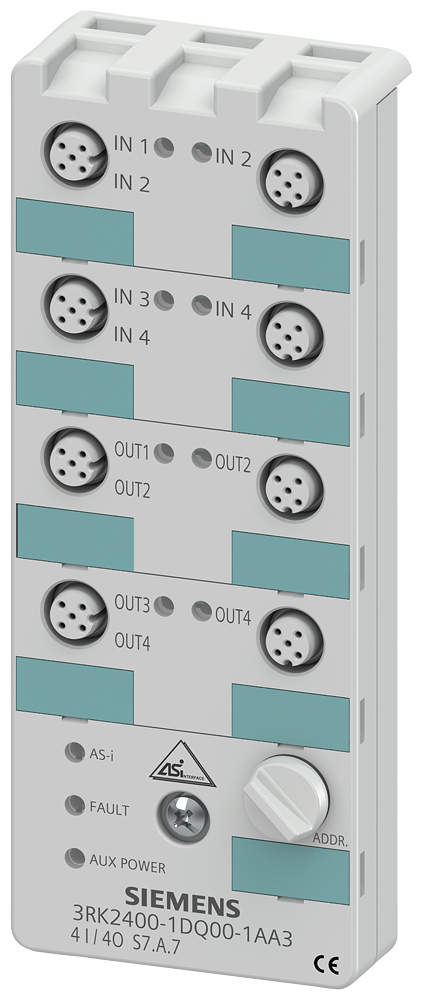

Siemens 3RK24001DQ001AA3 3RK A/B Slave Binary Constant AS-Interface SlimLine Compact Digital I/O Module, 4 Inputs, 4 Outputs

Short Description

Enhance your automation systems with the Siemens 3RK A/B Slave Binary Constant AS-Interface SlimLine Compact Digital I/O Module. Featuring 4 inputs and 4 outputs, this reliable module is designed for optimal performance in a compact form factor.Enhanced by AI

Siemens AS-Interface SlimLine Compact Digital I/O Module, A/B Slave Binary Constant, Series: 3RK, 4 Inputs, 4 Outputs, 26.5 to 31.6 VDC, 60 mA, Screw Terminal, -25 to 85 deg C, 152 mm H x 60 mm W x 29 mm D Dimensions

MFG #: 3RK24001DQ001AA3

EECO #: SIC3RK24001DQ001AA3

Brand: Siemens
UPC #: 040892789010
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121521
Application
For use in control cabinet
Terminal Type
Screw
Voltage Rating
26.5 to 31.6
Number of Inputs
4.0000
Temperature Rating
-25 to 85
Type
A/B Slave Binary Constant
Series
3RK
Dimensions
152 mm H x 60 mm W x 29 mm D
Amperage Rating
60
Number of Outputs
4
Features
  • Simple connection of multiple modules using the device connector
  • Can select between AS-I/Uaux sensor supply
  • Device connector enables easy wiring of multiple modules
Siemens_3RK24001DQ001AA3_Specification_Sheet
IDW_DOCUMENT_518ca751cd33aedcce306bb03ce1ac6063e4b0f59f56c44650e63fb163b928ec
Siemens_3RK1100_1CG00_0AA2_User_Manual
