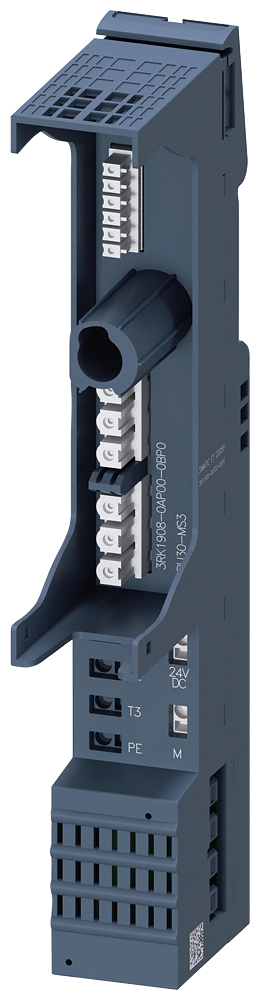

Siemens SIMATIC 3RK19080AP000BP0 ET 200SP 3-Pole Push-In Terminal Base Unit w/ 24 VDC Infeed, 32 A at 48 to 500 VAC, 7 A at 24 VDC Line, AC/DC Current/Voltage Input
Share Share Print Print
Siemens

Siemens SIMATIC 3RK19080AP000BP0 ET 200SP 3-Pole Push-In Terminal Base Unit w/ 24 VDC Infeed, 32 A at 48 to 500 VAC, 7 A at 24 VDC Line, AC/DC Current/Voltage Input

Short Description

Enhance your automation setup with the Siemens SIMATIC 3RK19080AP000BP0 ET 200SP 3-Pole Push-In Terminal Base Unit, designed for efficient power management and reliable AC/DC input capabilities. Ideal for high-performance applications, it supports 32 A at 48 to 500 VAC and 7 A at 24 VDC, ensuring optimal connectivity and functionality.Enhanced by AI

Siemens SIMATIC Base Unit, 3-Pole Push-In Terminal, Series: ET 200SP, 32 A at 48 to 500 VAC, 7 A at 24 VDC Line Power, AC/DC Current/Voltage Input

MFG #: 3RK19080AP000BP0

EECO #: SIC3RK19080AP000BP0

Brand: Siemens
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121521
Input Type
AC/DC Current/Voltage
Type
3-Pole Push-In Terminal
Series
ET 200SP
Features
  • Base unit suitable for all fail safe and non-fail safe SIMATIC ET 200SP high feature motor starters
  • The base unit opens a new potential group (24 VDC), the potential group (24 VDC) is interrupted to the adjacent module on the left (base unit, interface module/CPU)
  • This base unit takes over the infeed bus (500 VAC) of the left hand base unit and loops it through
  • Connection method using push-in terminals
  • The touch protection cover for the infeed bus (3RK1908-1DA00-2BP0) is not included in the scope of delivery
  • The F-DI of the fail safe motor starter is connected internally to the potential group (24 VDC), when the supply voltage (24 VDC) is applied, the motor starter is ready for operation
