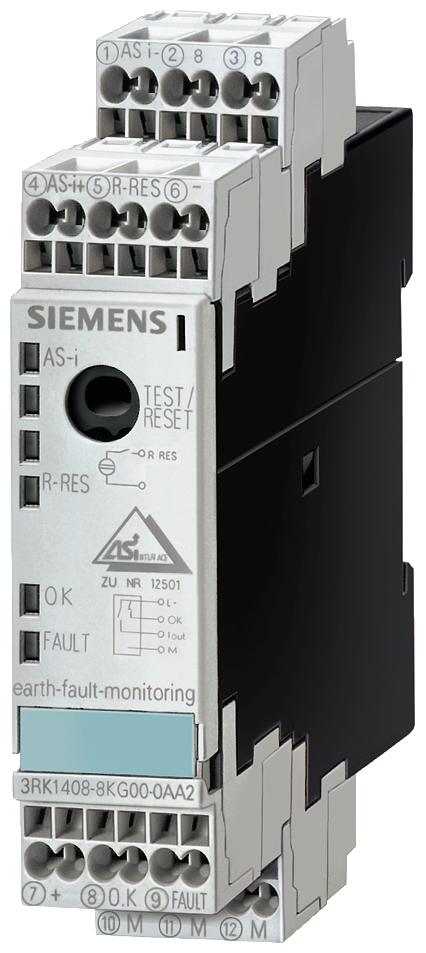

Siemens 3RK1408-8KG00-0AA2 Ground Fault Detection Module, 1 Inputs, 2 Outputs, 1.5 to 6 mA, 10 VAC Signal Range
Share Share Print Print
Siemens

Siemens 3RK1408-8KG00-0AA2 Ground Fault Detection Module, 1 Inputs, 2 Outputs, 1.5 to 6 mA, 10 VAC Signal Range

Short Description

Enhance safety and reliability with the Siemens 3RK1408-8KG00-0AA2 Ground Fault Detection Module. Featuring 1 input and 2 outputs, this module operates within a signal range of 1.5 to 6 mA and 10 VAC, ensuring optimal performance in various conditions. Perfect for your electrical systems!Enhanced by AI

Siemens Ground Fault Detection Module, 1 Inputs, 2 Outputs, 1.5 to 6 mA, 10 VAC Signal, 24 to 48 VDC, 40 mA, Spring Loaded Terminal, -25 to 70 deg C, 103 mm H x 86 mm W x 22.5 mm D Dimensions

MFG #: 3RK1408-8KG00-0AA2

EECO #: SIC3RK14088KG000AA2

Brand: Siemens
UPC #: 754554735313
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
32151705
Terminal Type
Spring-Loaded
Voltage Rating
24 to 48
Number of Inputs
1.0000
Temperature Rating
-25 to 70
Dimensions
103 mm H x 86 mm W x 22.5 mm D
Signal Range
1.5 to 6 mA, 10 VAC
Amperage Rating
40
Number of Outputs
2
Features
  • Modules with special functions
  • Protocol is supported AS-interface protocol
  • 10% Uas-I <=Ugnd <=90% Uas-I earth fault
  • 1.5 mA low signal lin maximum, Uin minimum 10 VAC, 6 mA lin minimum high signal range
  • DC-12 at 1 A, DC-13 at 24 VDC at 500 mA, 48 VDC at 200 mA current carrying capacity
  • 2000000 operating cycles DC-12
  • 25 deg C temperature rating
  • -40 to 85 deg C during storage
  • Built-in as interface connection polarity reversal protection
  • 2 x (0.25 to 1.5) sq-mm solid, 2 x (0.25 to 1) sq-mm finely stranded with end sleeve, 2 x (0.25 to 1.5) sq-mm without end sleeve, 2 x (24 to 16) sq-mm stranded/solid AWG
  • Standard rail/wall mounting
  • IP20 degree of protection
