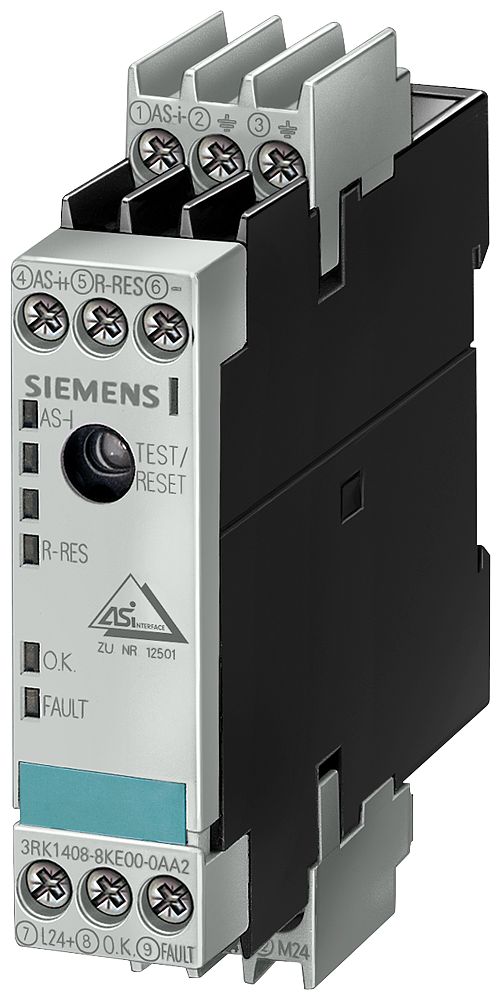

Siemens 3RK1408-8KE00-0AA2 AS-i Ground Fault Module, 1 Input, 2 Outputs, 1.5 to 6 mA Signal Range
Share Share Print Print
Siemens

Siemens 3RK1408-8KE00-0AA2 AS-i Ground Fault Module, 1 Input, 2 Outputs, 1.5 to 6 mA Signal Range

Short Description

Ensure safety and reliability in your systems with the Siemens 3RK1408-8KE00-0AA2 AS-i Ground Fault Module. Featuring 1 input and 2 outputs, this module operates within a signal range of 1.5 to 6 mA, making it an essential component for effective fault detection.Enhanced by AI

Siemens AS-i Ground Fault Module, 1 Input, 2 Output, 1.5 to 6 mA, 24 to 48 VDC, 40/200/500 mA, Screw Terminal, -25 to 70 deg C, 102 mm H x 22.5 mm W x 86 mm D

MFG #: 3RK1408-8KE00-0AA2

EECO #: SIC3RK14088KE000AA2

Brand: Siemens
UPC #: 754554404233
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
32151705
Terminal Type
Screw
Voltage Rating
24 to 48
Number of Inputs
1.0000
Temperature Rating
-25 to 70
Dimensions
102 mm H x 22.5 mm W x 86 mm D
Signal Range
1.5 to 6
Amperage Rating
40/200/500
Number of Outputs
2
Features
  • No AS-I address required, only AS-Interface monitoring
  • 200 mA at 48 VDC, 500 mA at 24 VDC current carrying capacity, 40 mA AS-Interface total input current
Siemens_3RK1408_8KE00_0AA2_Specification_Sheet
