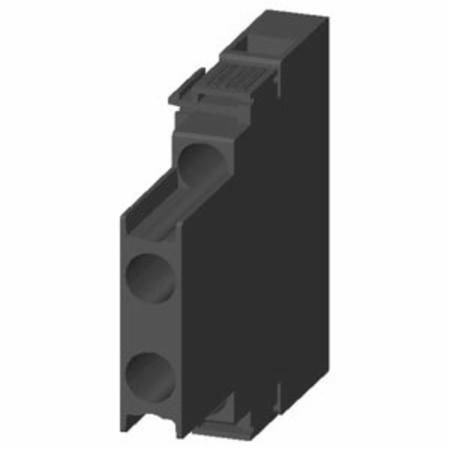

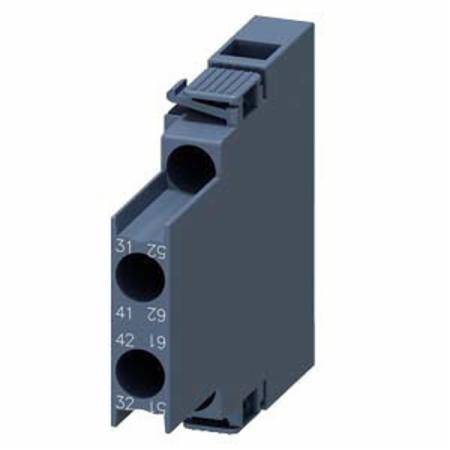

PrintSiemens AG 3RH2921-1DA02 SIRIUS Contactor Auxiliary Switch Block
690 VAC, 600 VDC, 2NC, Size S0 to S3, 2-Pole, Screw Terminal, Left/Right Mount, Lateral, Contactor Auxiliary Switch Block
Contactor Auxiliary Switch Block; Type Auxiliary Contact, Lateral; Mounting Location Left/Right; Contact Configuration 2NC; Contact Rating 690 Volt AC/600 Volt DC, 10 Amp (AC-12), 6 Amp (AC-14/AC-15), 10 Amp (DC-12/DC-13); NEMA Size S0 to S3; Terminal Type Screw; Approval UL, CSA, CE, CCC, EAC; Used On SIRIUS 3RT Series Contactor, 3RH Series Relay, 3RA2 Series Load Feeder; RoHS Compliant; Overall Dimension 10 Millimeter Width x 65.8 Millimeter Depth x 57.4 Millimeter Height; Surge Voltage Resistance Rating 6 Kilovolt; Mounting Type Snap-On; Number of Poles 2; Temperature Rating -25 to 60 Deg C; Enclosure IP20
EECO #: SIC3RH29211DA02
| Qty | Unit price |
|---|---|
| Ea | |
| 1 | $57.50 |
|
Slqt |
|
| 1 | $57.50 |
|
Stpk |
|
| 1 | $57.50 |
|
Unit |
|
| 1 | $57.50 |
