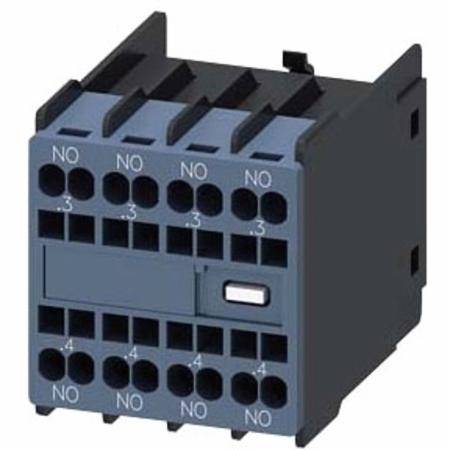

Siemens AG 3RH29112FA40 SIRIUS Contactor Auxiliary Switch Block
Share Share Print Print
Siemens

Siemens AG 3RH29112FA40 SIRIUS Contactor Auxiliary Switch Block

Short Description

10 A at 230 V, 4NO, S00, Spring Loaded Terminal, Snap-On Mount, Contactor Auxiliary Switch Block

Contactor Auxiliary Switch Block; Type Auxiliary Contact; Contact Configuration 4NO; Contact Rating 10 Amp at 230 Volt (AC-12), 6 Amp at 250 Volt (AC-14), 1 Amp at 690 Volt (AC-15), 1.8 Amp at 600 Volt (DC-12), 0.26 Amp at 600 Volt (DC-13); NEMA Size S00; Terminal Type Spring Loaded; Approval UL, CSA, CCC, EAC, CE; Used On 3RT2 Series Contactor; Mounting Type Snap-On; Overall Dimension 36 Millimeter Width x 47.7 Millimeter Depth x 41.5 Millimeter Height; Temperature Rating -25 to 60 Deg C; Enclosure Rating IP20; Applicable Standard IEC 60947-4-1/5-1

MFG #: 3RH29112FA40

EECO #: SIC3RH29112FA40

Brand: Siemens
UPC #: 662643910261
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121500
Used On
3RT2 Series Contactor
Approval
UL, CSA, CCC, EAC, CE
Terminal Type
Spring-Loaded
Contact Rating
10 Amp at 230 Volt (AC-12), 6 Amp at 250 Volt (AC-14), 1 Amp at 690 Volt (AC-15), 1.8 Amp at 600 Volt (DC-12), 0.26 Amp at 600 Volt (DC-13)
Contact Configuration
4NO
Type
Auxiliary Contact
NEMA Size
S00
Features
  • Type: Auxiliary Contact
  • Contact Configuration: 4NO (4 Normally Open)
  • Contact Rating:
    • 10 Amp at 230 Volt (AC-12)
    • 6 Amp at 250 Volt (AC-14)
    • 1 Amp at 690 Volt (AC-15)
    • 1.8 Amp at 600 Volt (DC-12)
    • 0.26 Amp at 600 Volt (DC-13)
  • NEMA Size: S00
  • Terminal Type: Spring Loaded
  • Certifications: UL, CSA, CCC, EAC, CE
  • Compatibility: Designed for use with 3RT2 Series Contactor
  • Mounting Type: Snap-On
  • Overall Dimensions: 36 mm Width x 47.7 mm Depth x 41.5 mm Height
  • Temperature Rating: -25 to 60 °C
  • Enclosure Rating: IP20
  • Applicable Standard: IEC 60947-4-1/5-1

Enhanced by AI

SIEMNSE18506_3_15_3_22
SIEMNSE23501_1_6
Qty Unit price
Ea
1 $64.00

Slqt
1 $64.00

Stpk
1 $64.00

Unit
1 $64.00
