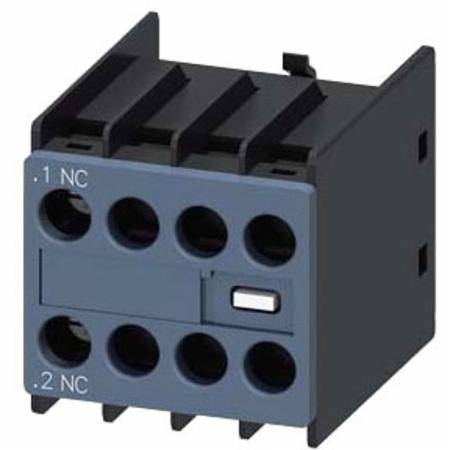

Siemens AG 3RH29111HA01 SIRIUS Contactor Auxiliary Switch Block
Share Share Print Print
Siemens

Siemens AG 3RH29111HA01 SIRIUS Contactor Auxiliary Switch Block

Short Description

10 A at 230 V, 1NC, S00, Screw Terminal, Snap-On Mount, Contactor Auxiliary Switch Block

Contactor Auxiliary Switch Block; Type Auxiliary Contact; Contact Configuration 1NC; Contact Rating 10 Amp at 230 Volt (AC-12), 6 Amp at 250 Volt (AC-14), 1 Amp at 690 Volt (AC-15), 1.8 Amp at 600 Volt (DC-12), 0.26 Amp at 600 Volt (DC-13); NEMA Size S00; Terminal Type Screw; Approval UL, CSA, CCC, EAC, CE; Used On 3RT2 Series Contactor; Mounting Type Snap-On; Overall Dimension 36 Millimeter Width x 43.7 Millimeter Depth x 37.5 Millimeter Height; Temperature Rating -25 to 60 Deg C; Enclosure Rating IP20; Applicable Standard IEC 60947-4-1/5-1

MFG #: 3RH29111HA01

EECO #: SIC3RH29111HA01

Brand: Siemens
UPC #: 662643910025
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121500
Used On
3RT2 Series Contactor
Approval
UL, CSA, CCC, EAC, CE
Terminal Type
Screw
Contact Rating
10 Amp at 230 Volt (AC-12), 6 Amp at 250 Volt (AC-14), 1 Amp at 690 Volt (AC-15), 1.8 Amp at 600 Volt (DC-12), 0.26 Amp at 600 Volt (DC-13)
Contact Configuration
1NC
Type
Auxiliary Contact
NEMA Size
S00
Features
  • Type: Auxiliary Contact
  • Contact Configuration: 1NC (Normally Closed)
  • Contact Rating:
    • 10 Amp at 230 Volt (AC-12)
    • 6 Amp at 250 Volt (AC-14)
    • 1 Amp at 690 Volt (AC-15)
    • 1.8 Amp at 600 Volt (DC-12)
    • 0.26 Amp at 600 Volt (DC-13)
  • NEMA Size: S00
  • Terminal Type: Screw
  • Certifications: UL, CSA, CCC, EAC, CE
  • Compatibility: Used on 3RT2 Series Contactor
  • Mounting Type: Snap-On
  • Overall Dimensions: 36 mm Width x 43.7 mm Depth x 37.5 mm Height
  • Temperature Rating: -25 to 60 °C
  • Enclosure Rating: IP20
  • Applicable Standard: IEC 60947-4-1/5-1

Enhanced by AI

SIEMNSE18506_3_15_3_21
SIEMNSE23477_1_6
Qty Unit price
Ea
1 $29.60

Slqt
1 $29.60

Stpk
1 $29.60

Unit
1 $29.60
