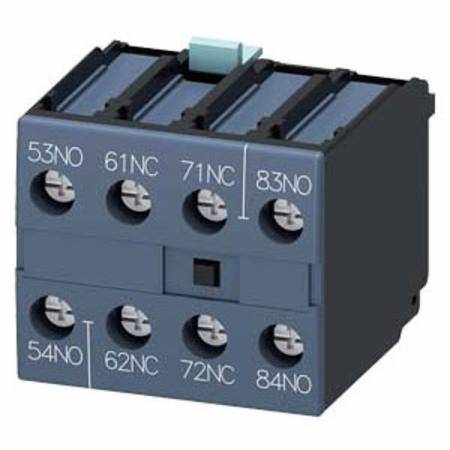

PrintSiemens AG 3RH1921-1XA22-0MA0 SIRIUS Contactor Auxiliary Switch Block
690 VAC, 600 VDC, 2NO-2NC, Size S6 to S12, 4-Pole, Screw Terminal, Front Mount, Contactor Auxiliary Switch Block
Contactor Auxiliary Switch Block; Type Auxiliary Contact; Mounting Location Front; Contact Configuration 2NO-2NC; Contact Rating 690 Volt AC/600 Volt DC, 10 Amp (AC-12), 6 Amp (AC-14/AC-15), 10 Amp (DC-12/DC-13); NEMA Size S6 to S12; Terminal Type Screw; Approval UL, CSA, CE, CCC, EAC; Used On SIRIUS 3RT Series Contactor, 3RH Series Relay; RoHS Compliant; Overall Dimension 44 Millimeter Width x 51 Millimeter Depth x 38 Millimeter Height; Surge Voltage Resistance Rating 6 Kilovolt; Mounting Type Snap-On; Number of Poles 4; Temperature Rating -25 to 60 Deg C; Enclosure IP20
EECO #: SIC3RH19211XA220MA0
| Qty | Unit price |
|---|---|
| Ea | |
| 1 | $59.50 |
|
Slqt |
|
| 1 | $59.50 |
|
Stpk |
|
| 1 | $59.50 |
|
Unit |
|
| 1 | $59.50 |
