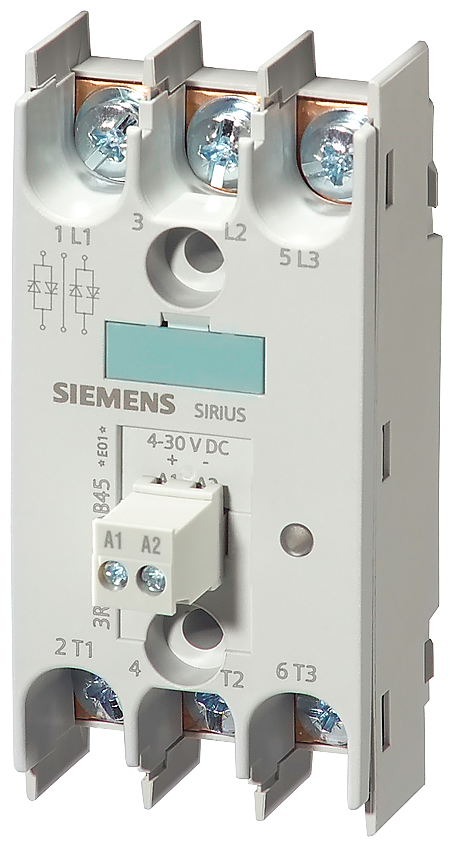

Siemens SIRIUS 3RF2230-3AC45 3-Phase Semiconductor Zero Point Switching Solid State Relay, 30 A, 3NO Contact, 48 to 600 VAC, 4 to 30 VDC Coil
Share Share Print Print
Siemens

Siemens SIRIUS 3RF2230-3AC45 3-Phase Semiconductor Zero Point Switching Solid State Relay, 30 A, 3NO Contact, 48 to 600 VAC, 4 to 30 VDC Coil

Short Description

Experience reliable performance with the Siemens SIRIUS 3RF2230-3AC45 Solid State Relay, designed for efficient zero point switching in 3-phase applications. With a robust 30 A capacity and versatile voltage range of 48 to 600 VAC, this relay is perfect for your industrial needs. Enhanced by AI

Siemens SIRIUS Solid State Relay, 3-Phase Semiconductor Zero Point Switching, Series: 3RF22, 30 A, 50/60 Hz Frequency, 48 to 600 VAC, 4 to 30 VDC Coil, 3NO Contact Form, 3 Pole, Threaded Mounting, Ring Cable Connection Terminal, IP00 Enclosure, -25 to 60 deg C, 95 mm H x 45 mm W x 47 mm D Dimensions

MFG #: 3RF2230-3AC45

EECO #: SIC3RF22303AC45

Brand: Siemens
UPC #: 754554935386
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121529
Coil Voltage
48 to 600 VAC, 4 to 30 VDC
Mounting Type
Threaded
Terminal Type
Ring Cable Connection
Enclosure Type
IP00
Frequency Rating
50/60
Temperature Rating
-25 to 60
Type
3-Phase Semiconductor Zero Point Switching
Series
3RF22
Dimensions
95 mm H x 45 mm W x 47 mm D
Amperage Rating
30
Features
  • Type: 3-Phase Semiconductor Solid State Relay
  • Model: Siemens SIRIUS 3RF2230-3AC45
  • Current Rating: 30 A
  • Contact Form: 3NO (3 Normally Open)
  • Voltage Range: 48 to 600 VAC
  • Coil Voltage: 4 to 30 VDC
  • Frequency: 50/60 Hz
  • Operating Temperature: -25 to 60 °C
  • Dimensions: 95 mm H x 45 mm W x 47 mm D
  • Mounting: Threaded Mounting with Ring Cable Connection Terminal
  • Enclosure Rating: IP00

Enhanced by AI
