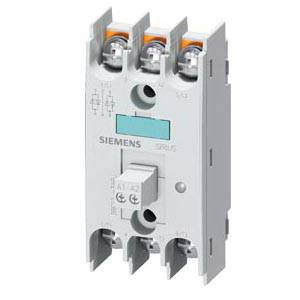

Siemens SIRIUS 3RF2230-3AB45 3-Phase Semiconductor Zero Point Switching Solid State Relay, 30 A, 2NO Contact, 48 to 600 VAC, 4 to 30 VDC V Coil
Share Share Print Print
Siemens

Siemens SIRIUS 3RF2230-3AB45 3-Phase Semiconductor Zero Point Switching Solid State Relay, 30 A, 2NO Contact, 48 to 600 VAC, 4 to 30 VDC V Coil

Short Description

Experience reliable performance with the Siemens SIRIUS 3RF2230-3AB45 Solid State Relay. Designed for 3-phase applications, this 30 A relay offers zero point switching for enhanced efficiency and durability. Perfect for various voltage ranges, it ensures seamless operation in demanding environments. Enhanced by AI

Siemens SIRIUS Solid State Relay, 3-Phase Semiconductor Zero Point Switching, Series: 3RF22, 30 A, 50/60 Hz, 48 to 600 VAC, 4 to 30 VDC Coil, 2NO, 3 Pole, Threaded Mount, Ring Cable Connection Terminal, IP00, -25 to 60 deg C, 45 mm W x 47 mm D x 95 mm H

MFG #: 3RF2230-3AB45

EECO #: SIC3RF22303AB45

Brand: Siemens
UPC #: 754554935379
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121529
Coil Voltage
48 to 600 VAC, 4 to 30 VDC
Mounting Type
Threaded
Terminal Type
Ring Cable Connection
Enclosure Type
IP00
Frequency Rating
50/60
Temperature Rating
-25 to 60
Type
3-Phase Semiconductor Zero Point Switching
Series
3RF22
Dimensions
45 mm W x 47 mm D x 95 mm H
Amperage Rating
30
Features
  • Type: 3-Phase Semiconductor Zero Point Switching Solid State Relay
  • Series: Siemens SIRIUS 3RF22
  • Current Rating: 30 A
  • Voltage Range: 48 to 600 VAC
  • Coil Voltage: 4 to 30 VDC
  • Contact Configuration: 2 Normally Open (2NO)
  • Frequency: 50/60 Hz
  • Mounting Type: Threaded Mount
  • Connection Terminal: Ring Cable Connection Terminal
  • Ingress Protection Rating: IP00
  • Operating Temperature Range: -25 to 60 °C
  • Physical Dimensions: 45 mm W x 47 mm D x 95 mm H

Enhanced by AI

Siemens_3RF2230_3AB45_Specification_Sheet
IDW_DOCUMENT_1b93b9672924d40c4306fea6f324851c0d2588f020566a1ffe6dc57f35814277
everwhere
Siemens SIRIUS 3RF2230-3AB45 3-Phase Semiconductor Zero Point Switching Solid State Relay, 30 A, 2NO Contact, 48 to 600 VAC, 4 to 30 VDC V Coil
