Siemens 3RF2020-1AA22 1-Phase Semiconductor Zero Point Switching Solid State Relay, 20 A, 1NO Contact, 110 to 230 VAC V Coil
Share Share Print Print
Siemens

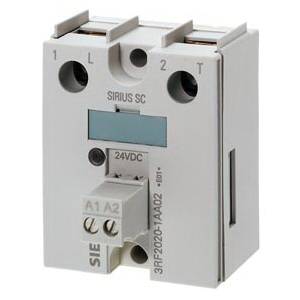

Siemens 3RF2020-1AA22 1-Phase Semiconductor Zero Point Switching Solid State Relay, 20 A, 1NO Contact, 110 to 230 VAC V Coil

Short Description

The solid state relays with a width of 45 mm provide for connection of the power supply lead and the load from above. This makes it easy to replace existing solid state relays in existing arrangements.

Siemens SIRIUS Solid State Relay, 1-Phase Semiconductor Zero Point Switching, Series: 3RF, 20 A, 50/60 Hz, 110 to 230 VAC Coil, 1NO, 1 Pole, Threaded Mount, Screw Terminal, IP20, -25 to 60 deg C, 58 mm H x 45 mm W x 48 mm D
MFG #: 3RF2020-1AA22

EECO #: SIC3RF20201AA22

Brand: Siemens
UPC #: 754554860367
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121529
Application
For resistive/inductive loads and controlling electrical heat
Coil Voltage
110 to 230
Mounting Type
Threaded
Terminal Type
Screw
Enclosure Type
IP20
Frequency Rating
50/60
Temperature Rating
-25 to 60
Type
1-Phase Semiconductor Zero Point Switching
Series
3RF
Dimensions
58 mm H x 45 mm W x 48 mm D
Amperage Rating
20
Features
  • Flexible for all applications with function modules for retrofitting
  • Possibility of fuseless short-circuit proof design
  • Saves time and costs with fast mounting and commissioning, short start up times and easy wiring
  • Extremely long life, low maintenance, rugged and reliable
  • Space saving and safe thanks to sideby side mounting up to an ambient temperature of 60 deg C
  • Modular design - standardized function modules and heat sinks can be used in conjunction with solid state relays to satisfy individual requirements
