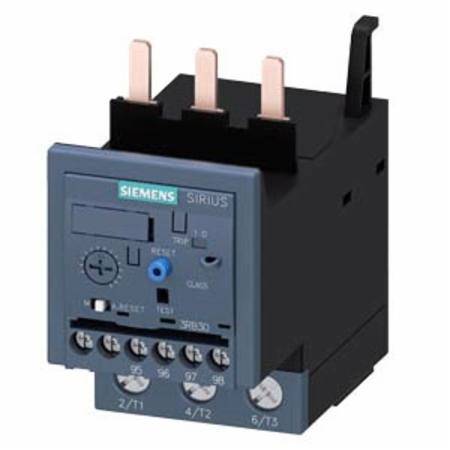

PrintSiemens AG 3RB3036-1UB0 SIRIUS Overload Relay
690 VAC 50/60 Hz, 12.5 to 50 FLA, 3-Pole, 1NO-1NC, Class 10E, S2 Frame, Automatic/Manual Reset, Screw Terminal, Solid State, Electronic, Overload Relay
Overload Relay; Type Solid State, Electronic; Motor FLA 12.5 to 50 Amp; Number of Poles 3; Trip Class Class 10E; Reset Type Automatic/Manual; Ambient Temperature Compensated; Auxiliary Contact 1NO-1NC; Contact Rating 690 Volt AC at 50/60 Hertz; Terminal Type Screw; Mounting Contactor; Enclosure IP00/20; Application 3-Phase; Approval UL, CSA, CE, CCC, EAC, ATEX, C-Tick; RoHS Compliant; Overall Dimension 55 Millimeter Width x 104 Millimeter Depth x 99 Millimeter Height; Frame Size S2; Power Rating 7.5 to 22 Kilowatt at 400 Volt AC 3-Phase; Temperature Rating -25 to 60 Deg C
EECO #: SIC3RB30361UB0
| Qty | Unit price |
|---|---|
| Ea | |
| 1 | $378.00 |
|
Slqt |
|
| 1 | $378.00 |
|
Stpk |
|
| 1 | $378.00 |
|
Unit |
|
| 1 | $378.00 |
