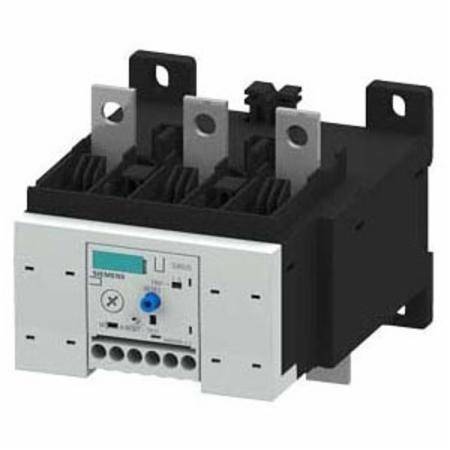

Siemens AG 3RB20561FC2 SIRIUS Overload Relay
Share Share Print Print
Siemens

Siemens AG 3RB20561FC2 SIRIUS Overload Relay

Short Description

1000 VAC at 50/60 Hz, 50 to 200 FLA, 3-Pole, 1NO-1NC, Class 10, Automatic/Manual Reset, Screw Terminal, Solid State, Electronic, Overload Relay

Overload Relay; Type Solid State, Electronic; Motor FLA 50 to 200 Amp; Number of Poles 3; Trip Class Class 10; Reset Type Automatic/Manual; Ambient Temperature Compensated; Auxiliary Contact 1NO-1NC; Contact Rating 1000 Volt AC at 50/60 Hertz; Terminal Type Screw; Mounting Contactor; Enclosure IP20; Application 3-Phase; Approval UL, CSA, CE, CCC, ATEX, EAC, C-TICK; Overall Dimension 120 Millimeter Width x 155 Millimeter Depth x 119 Millimeter Height; Temperature Rating -25 to 60 Deg C

MFG #: 3RB20561FC2

EECO #: SIC3RB20561FC2

Brand: Siemens
UPC #: 754554933825
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39122330
Approval
UL, CSA, CE, CCC, ATEX, EAC, C-TICK
Reset Type
Automatic/Manual
Trip Class
Class 10
Application
3-Phase
Terminal Type
Screw
Contact Rating
1000 Volt AC at 50/60 Hertz
Number Of Poles
3
Mounting
Contactor
Auxiliary Contact
1NO/1NC
Enclosure
IP20
Ambient Temperature
Compensated
Type
Solid State, Electronic
Motor FLA
50 to 200 Amp
Features
  • Type: Solid State, Electronic Overload Relay
  • Motor FLA: Suitable for 50 to 200 Amp applications
  • Number of Poles: 3
  • Trip Class: Class 10
  • Reset Type: Automatic/Manual
  • Ambient Temperature: Compensated for optimal performance
  • Auxiliary Contact: 1NO-1NC configuration
  • Contact Rating: 1000 Volt AC at 50/60 Hertz
  • Terminal Type: Screw terminals for secure connections
  • Mounting: Designed for Contactor mounting
  • Enclosure: IP20 rated for protection against solid objects
  • Application: Specifically for 3-Phase motor applications
  • Certifications: Approved by UL, CSA, CE, CCC, ATEX, EAC, C-TICK
  • Overall Dimensions: 120 mm Width x 155 mm Depth x 119 mm Height
  • Temperature Rating: Operates within -25 to 60 °C

Enhanced by AI

SIEMEAE03875_1_4
SIEMENE27095_7_47_7_49
Qty Unit price
Ea
1 $702.00

Slqt
1 $702.00

Stpk
1 $702.00

Unit
1 $702.00
everwhere
Siemens AG 3RB20561FC2 SIRIUS Overload Relay
