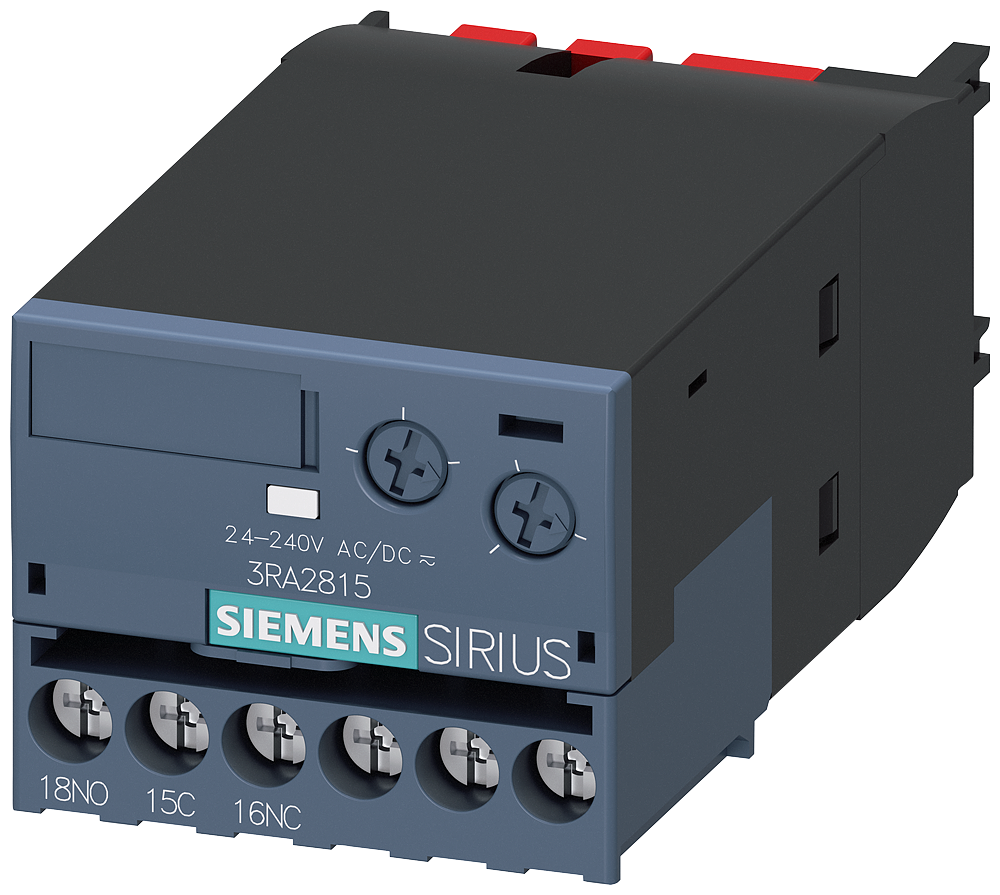

Siemens 3RA28151AW10 Solid State Time Relay With Varistor Surge Suppressor, 0.05 to 100 s Setting, 1CO Contact
Share Share Print Print
Siemens

Siemens 3RA28151AW10 Solid State Time Relay With Varistor Surge Suppressor, 0.05 to 100 s Setting, 1CO Contact

Short Description

Enhance your control systems with the Siemens 3RA28151AW10 Solid State Time Relay. Featuring a versatile time setting range of 0.05 to 100 seconds and robust surge protection, this relay is designed for reliability and efficiency in demanding environments.Enhanced by AI

Siemens Solid State Time Relay, Series: 3RA28, Operation Mode: Off-Delay, 1CO Contact Form, 0.05 to 100 s Time Setting, 24 to 240 VAC/VDC Coil, Screw Terminal Electrical Connections, IP20 Enclosure, -25 to 60 deg C, Clip-On Mounting, 38 mm H x 45 mm W x 74 mm D Dimensions

MFG #: 3RA28151AW10

EECO #: SIC3RA28151AW10

Brand: Siemens
UPC #: 040892635300
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39122329
Application
For 3RT2 S00-S3 contactors and 3RH2 S00 contactor
Coil Voltage
24 to 240
Mounting Type
Clip-On
Enclosure Type
IP20
Temperature Rating
-25 to 60
Series
3RA28
Dimensions
38 mm H x 45 mm W x 74 mm D
Operation Mode
Off-Delay
Features
  • Without auxiliary voltage relay
