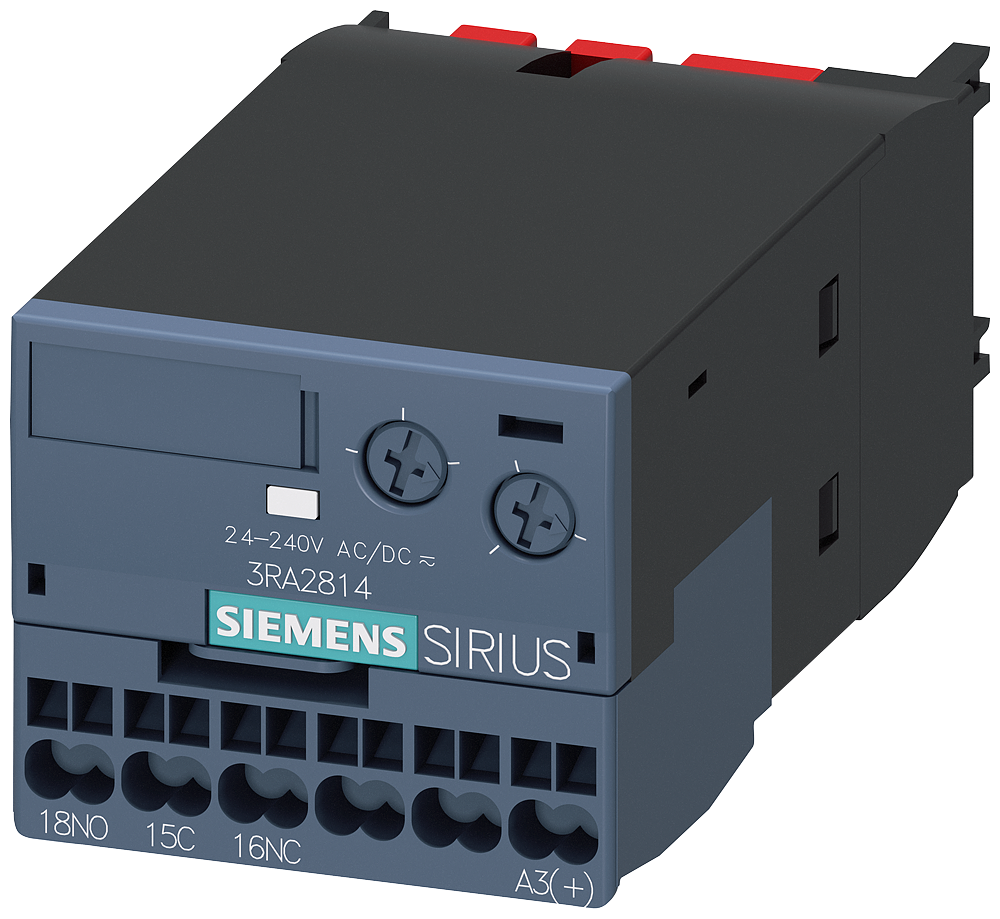

Siemens 3RA28142AW10 Solid State Time Relay With Auxiliary Voltage Relay, 0.05 to 100 s Setting, 1CO Contact
Share Share Print Print
Siemens

Siemens 3RA28142AW10 Solid State Time Relay With Auxiliary Voltage Relay, 0.05 to 100 s Setting, 1CO Contact

Short Description

Enhance your control systems with the Siemens 3RA28142AW10 Solid State Time Relay, featuring precise time settings from 0.05 to 100 seconds and reliable performance in various environments. Perfect for efficient operation with its compact design and versatile voltage options! Enhanced by AI

Siemens Solid State Time Relay, Series: 3RA28, Operation Mode: Off-Delay, 1CO Contact Form, 0.05 to 100 s Time Setting, 24 to 240 VAC/VDC Coil, Spring Loaded Terminal Electrical Connections, IP20 Enclosure, -25 to 60 deg C, Clip-On Mounting, 38 mm H x 45 mm W x 74 mm D Dimensions

MFG #: 3RA28142AW10

EECO #: SIC3RA28142AW10

Brand: Siemens
UPC #: 040892635287
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39122329
Application
For 3RT2 S00-S3 contactors and 3RH2 S00 contactor
Coil Voltage
24 to 240
Mounting Type
Clip-On
Enclosure Type
IP20
Temperature Rating
-25 to 60
Series
3RA28
Dimensions
38 mm H x 45 mm W x 74 mm D
Operation Mode
Off-Delay
Features
  • Product Name: Siemens 3RA28142AW10 Solid State Time Relay
  • Series: 3RA28
  • Operation Mode: Off-Delay
  • Contact Form: 1CO (One Changeover Contact)
  • Time Setting Range: 0.05 to 100 seconds
  • Coil Voltage: 24 to 240 VAC/VDC
  • Electrical Connections: Spring Loaded Terminal
  • Enclosure Rating: IP20
  • Operating Temperature Range: -25 to 60 degrees Celsius
  • Mounting Type: Clip-On
  • Dimensions: 38 mm H x 45 mm W x 74 mm D
