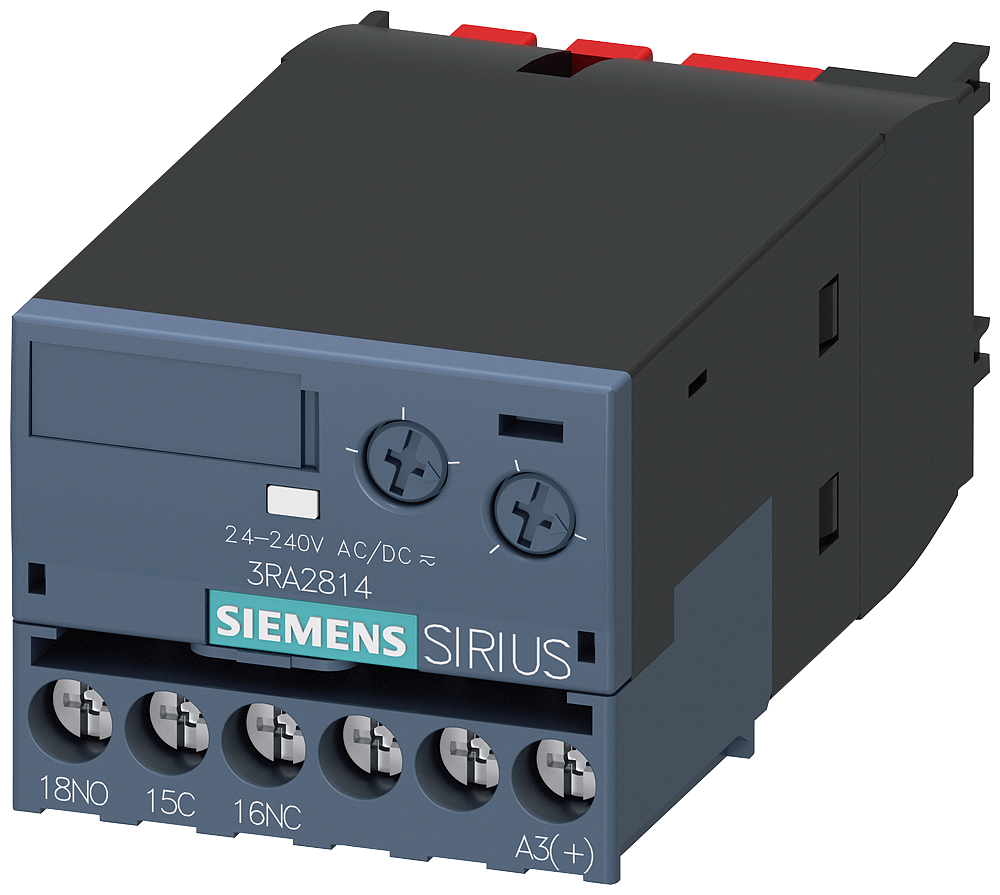

Siemens 3RA28141AW10 Solid State Time Relay With Control Signal, Auxiliary Voltage Relay, Varistor Surge Suppressor, 0.05 to 100 s Setting, 1CO Contact
Share Share Print Print
Siemens

Siemens 3RA28141AW10 Solid State Time Relay With Control Signal, Auxiliary Voltage Relay, Varistor Surge Suppressor, 0.05 to 100 s Setting, 1CO Contact

Short Description

Enhance your control systems with the Siemens 3RA28141AW10 Solid State Time Relay. Featuring a versatile time setting range from 0.05 to 100 seconds and robust design, this relay ensures reliable performance in various applications. Enhanced by AI

Siemens Solid State Time Relay, Series: 3RA28, Operation Mode: Off-Delay, 1CO Contact Form, 0.05 to 100 s Time Setting, 24 to 240 VAC/VDC Coil, Screw Terminal Electrical Connections, IP20 Enclosure, -25 to 60 deg C, Clip-On Mounting, 38 mm H x 45 mm W x 74 mm D Dimensions

MFG #: 3RA28141AW10

EECO #: SIC3RA28141AW10

Brand: Siemens
UPC #: 040892635263
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39122329
Application
For 3RT2 S00-S3 contactors and 3RH2 S00 contactor
Coil Voltage
24 to 240
Mounting Type
Clip-On
Enclosure Type
IP20
Temperature Rating
-25 to 60
Series
3RA28
Dimensions
38 mm H x 45 mm W x 74 mm D
Operation Mode
Off-Delay
Features
  • Product Name: Siemens 3RA28141AW10 Solid State Time Relay
  • Series: 3RA28
  • Operation Mode: Off-Delay
  • Contact Form: 1CO
  • Time Setting Range: 0.05 to 100 seconds
  • Coil Voltage: 24 to 240 VAC/VDC
  • Electrical Connections: Screw Terminal
  • Enclosure Rating: IP20
  • Operating Temperature: -25 to 60 degrees Celsius
  • Mounting Type: Clip-On
  • Dimensions: 38 mm H x 45 mm W x 74 mm D
