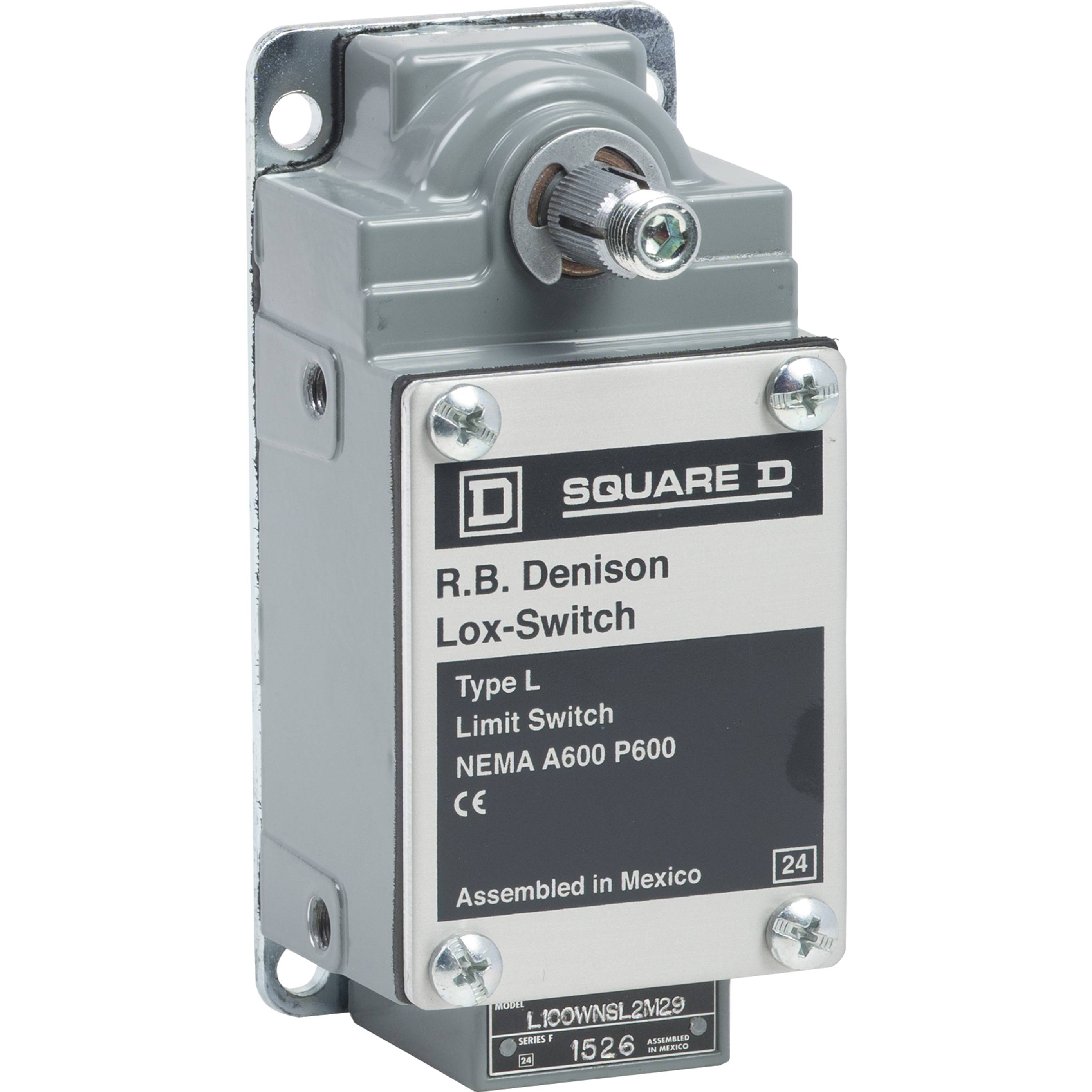

Square D™ L100WNSL2M29 Severe Duty Mill Limit Switch, 600 V, 20 A, 1NC-1NO, 2NO, Form XX DPST-NO-DB Contact, 2 Poles
Share Share Print Print
Schneider Electric

Square D™ L100WNSL2M29 Severe Duty Mill Limit Switch, 600 V, 20 A, 1NC-1NO, 2NO, Form XX DPST-NO-DB Contact, 2 Poles

Short Description

LIMIT SWITCH 600V 10AMP TYPE L +OPTIONS

Square D™ Limit Switch, Severe Duty Mill, Series: L100, 600 V, 20 A, 1NC-1NO, 2NO, Form XX DPST-NO-DB Contact Configuration, 2 Pole, Rotary/Snap Action, 1/2-14 in NPT Conduit Entrance Screw Clamp Connection, NEMA 1/2/4/12/13 Enclosure, 4.95 in H x 2.25 in W x 3.41 in D Size, -10 to 185 deg F Operating, Cast Aluminum

MFG #: L100WNSL2M29

EECO #: SDL100WNSL2M29

Brand: Square D
UPC #: 785901161530
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39122213
Material
Cast Aluminum
Application
Material Working, Packaging, Materials Handling, Conveying, Food and Beverage, Mining and Mineral Construction, Oil and Gas, Crane and Hoisting, Mill and Foundry Applications
Enclosure Type
NEMA 1/2/4/12/13
Voltage Rating
600
Connection Type
1/2-14 in NPT Conduit Entrance Screw Clamp
Contact Configuration
1NC-1NO, 2NO, Form XX DPST-NO-DB
Operating Temperature
-10 to 185
Size
4.95 in H x 2.25 in W x 3.41 in D
Type
Severe Duty Mill
Series
L100
Warranty
18 Months
Amperage Rating
20
Features
  • L100 mill and foundry for severe duty fixed sequences 59 mm housing
  • Extended operating and reset forces and heavy duty contacts that will break 20 A AC/DC
  • Heavy duty industrial switch designed to meet domestic and international standards
  • Miniature enclosed switches, potted and pre-wired with cable
  • NEMA A600/P600 contact rating
  • 1-entry for 1/2-14 NPT conforming to ANSI B1.20.1, fixed
  • Neutral position
  • Spring return without operating lever operator
IDW_DOCUMENT_1e10b5c6ccaeaec9ffac724def7faf83189d853bd973e0811ff4c7c7e1436103
IDW_DOCUMENT_6605361512ea4e530039f026d99bfc8fd4576d206b83b66e6bd65fde12273290
IDW_DOCUMENT_babc0fe6109aaabd87dcd9485c1e38f9fd630e89651e3d491e79f633a05a8cf6
Square_D_L100WNSL2M29_RoHS
Qty Unit price
Ea
1 $156.60
