Square D™ 9016GAW21 Electromechanical Vacuum Switch, 0 to 28.3 in, 100 psi Response, 2NO-2NC/DPDT Output, 480 VAC

Short Description

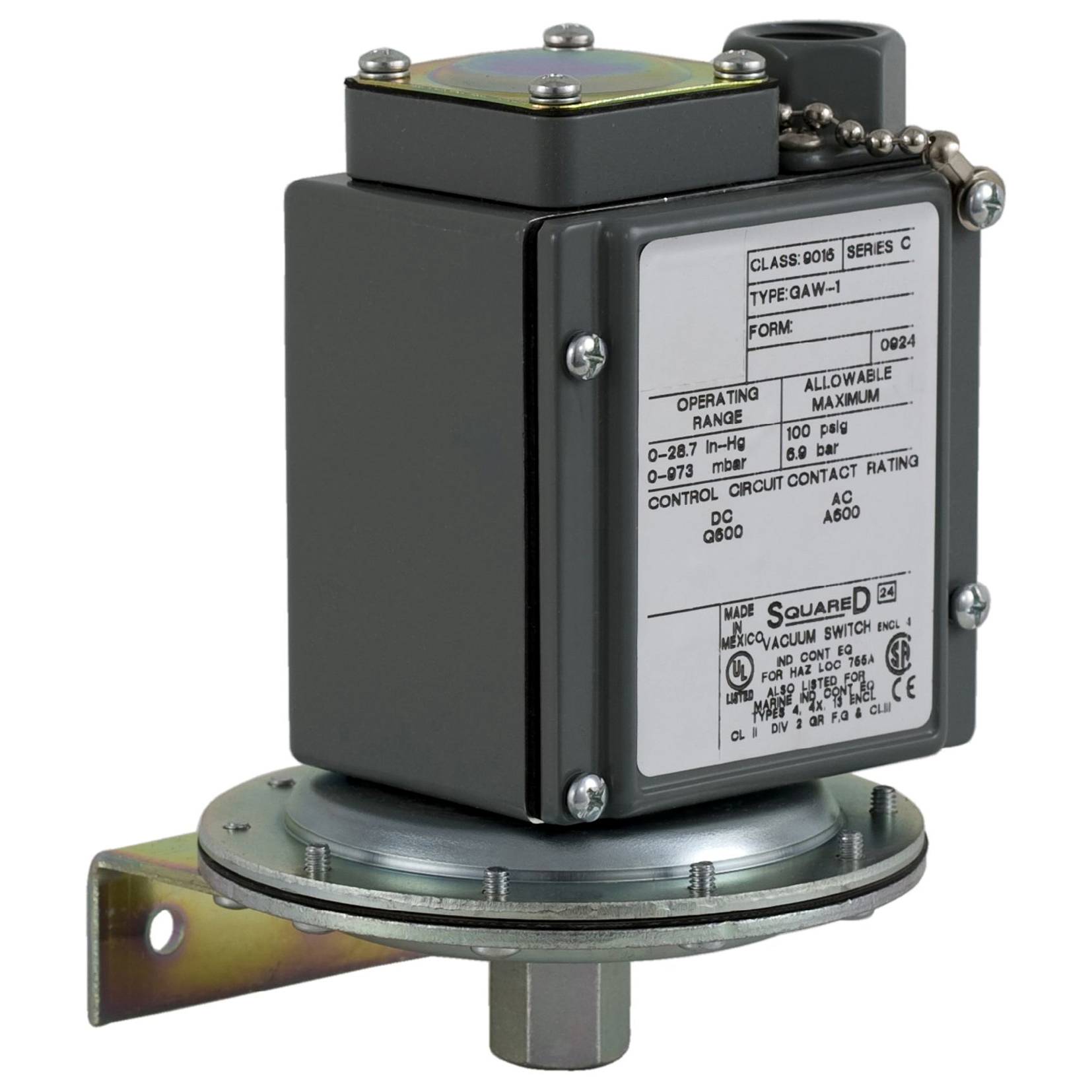

Square D™ Vacuum Switch, Electromechanical, Series: 9016G, 0 to 28.3 in Sensing, 100 psi Response, 2NO-2NC/DPDT Output, 480 VAC, 10 A, Screw Clamp Connection, 4.56 in W x 4.56 in D x 6.45 in H Size, NEMA 4/4X/13 Enclosure, -10 to 185 deg F Operating, Environmental Conditions: Dusttight, Oiltight, Watertight and Corrosion-Resistant

MFG #: 9016GAW21

EECO #: SD9016GAW21

Brand: Square D
UPC #: 785901522904
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39122228
Application
Sensitive Control and Indoor/Outdoor Applications
Output Type
2NO-2NC/DPDT
Response Time
100
Enclosure Type
NEMA 4/4X/13
Voltage Rating
480
Connection Type
Screw Clamp
Operating Temperature
-10 to 185
Environmental Conditions
Dusttight, Oiltight, Watertight and Corrosion-Resistant
Size
4.56 in W x 4.56 in D x 6.45 in H
Type
Electromechanical
Series
9016G
Warranty
18 months
Sensing Range
0 to 28.3
Amperage Rating
10
Features
  • Air, water, hydraulic oil, gas controller fluid
  • Regulation between 2 thresholds pressure switch operation
  • Adjustable scale
  • 1/4 in 18 NPTF fluid connection
  • 0.4% repeat accuracy
  • 5000000 cycles mechanical durability
  • Diaphragm pressure actuator
  • 1/2 in NPT conduit entrance cable entry
  • 4-terminal blocks
  • 3 A 240 VAC A600 NEMA rating designation, 6 A 120 VAC A600 NEMA rating designation, 0.22 A 125 VDC R300 NEMA rating designation, 0.11 A 250 VDC R300 NEMA rating designation rated current
  • Without local display
  • Water, dust, oil and corrosion-resistant (indoor/outdoor) environmental conditions
  • Hydraulic oil, noncorrosive liquids, air and noncorrosive gas
