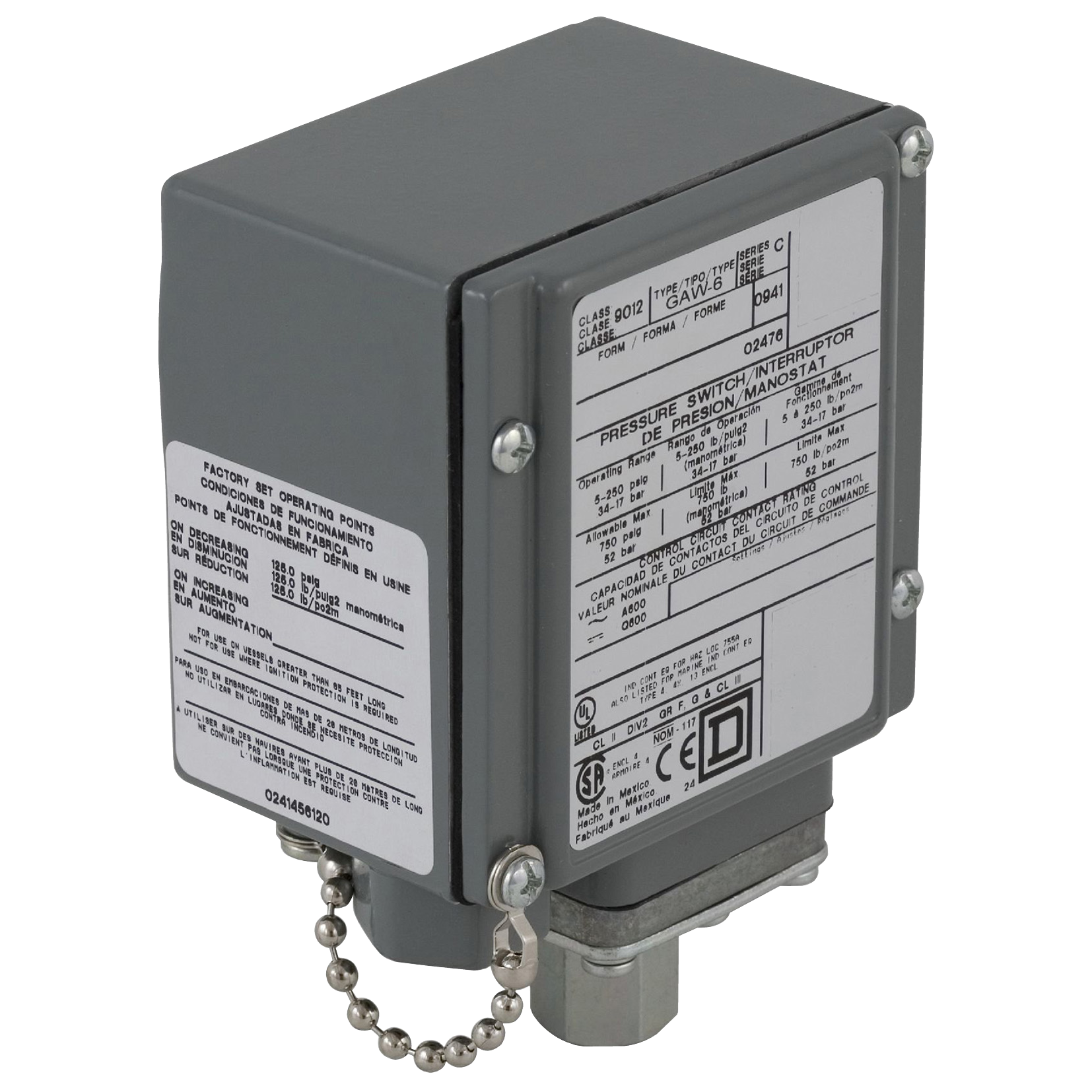

Square D™ 9012GAW5G17 Single Stage Low Pressure Electromechanical Pressure Switch, 3 to 150 psi Pressure, 6 to 30 psi Differential, NC-NO/SPDT-DB Contact, Screw Clamp Connection

Short Description

Pressure switches, float switches, vacuum switches and power pressure switches for control or monitoring of water pumps, compressors, agricultural/irrigation water systems, moulding presses, injection moulders, grinding machines, machining centers, complex and special machines, HVAC, automotive, food and beverage, healthcare facilities, pharmaceutical and more. Classes 9012, 9013, 9016, 9036, 9037 and 9038.

Square D™ Electromechanical Pressure Switch, Single Stage Low Pressure, Series: 9012G, 3 to 150 psi Pressure, 6 to 30 psi Differential, 475 psi Maximum, NC-NO/SPDT-DB Contact Configuration, 120 cpm Operating Cycles, -10 to 185 deg F, Screw Clamp Connection, Zinc Plated Steel/Nitrile Connection, Nitrile Diaphragm, Die Cast Aluminum Alloy Housing Material, NEMA 4/4X/13 Enclosure, 3.5 in W x 3.11 in D x 5.55 in H Dimensions

MFG #: 9012GAW5G17

EECO #: SD9012GAW5G17

Brand: Square D
UPC #: 785901024750
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39122210
Application
Industrial, Pressure control or monitoring of water pumps, compressors, agricultural/irrigation water systems, moulding presses, injection moulders, grinding machines, machining centers, complex and special machines, HVAC, automotive, food and beverage, healthcare facilities, pharmaceutical
Enclosure Type
NEMA 4/4X/13
Connection Type
Screw Clamp
Housing Material
Die Cast Aluminum Alloy
Temperature Rating
-10 to 185
Contact Configuration
NC-NO/SPDT-DB
Type
Single Stage Low Pressure
Series
9012G
Warranty
18 Months
Dimensions
3.5 in W x 3.11 in D x 5.55 in H
Pressure Rating
3 to 150
Features
  • 9012G industrial pressure switches control circuit rated for pneumatic and hydraulic systems
  • Rugged, robust construction provides a long life and provides years of uninterrupted, worry-free service
  • Drift proof cut-in and cut-out settings
  • Has visible vertical contacts, easy to inspect without removal
  • An extra strong frame that resists distortion when mounting the switch to a compressor
  • Designed for the direct control of motors in pump and compressor applications
  • For use in sensitive pressure control application
  • 1/4-18 NPTF pressure
  • +/- 2.5 % full scale adjustable differential at mid range
  • Adjustable differential
  • 1/2 in NPT conduit entrance
