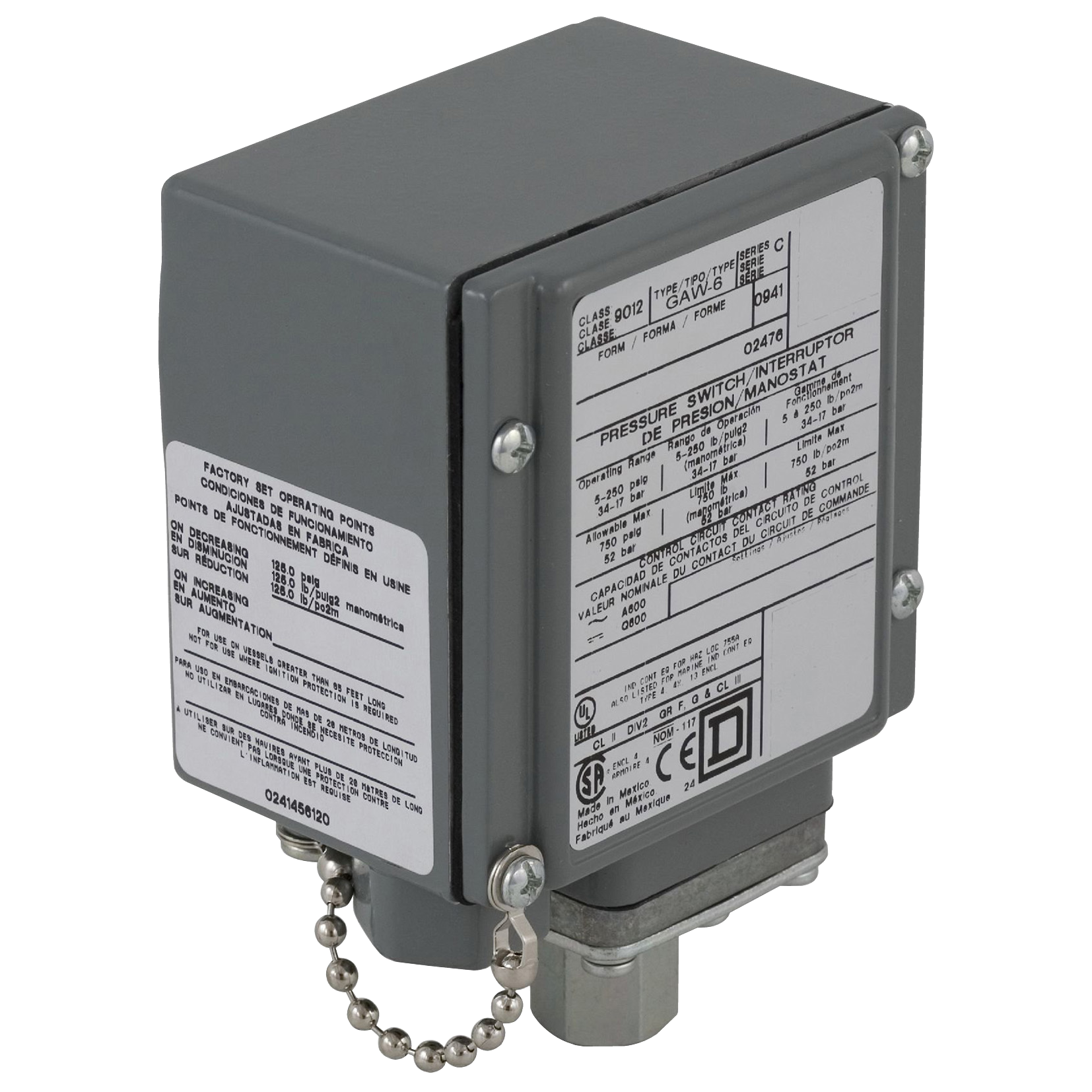

Square D™ 9012GAW25 Electromechanical Single Stage Pressure Switch, 3 to 150 psi Pressure, 6 to 30 psi Differential, 2NO-2NC Contact, NPT Conduit/Screw Clamp Connection, 10 A at 480 VAC Contact

Short Description

The 9012G pressure switches are UL listed and CSA certified as industrial control equipment. They are used to interface pneumatic or hydraulic systems with electrical control systems by opening or closing electrical contacts in response to pressure changes in the system. They have outstanding repeatability and drift performance. Their efficient design uses durable, low mass components for excellent performance under heavy duty vibration and shock conditions.

Square D™ Pressure Switch, Electromechanical Single Stage, Series: 9012G, 3 to 150 psi Pressure, 6 to 30 psi Differential, 475 psi Maximum, 2NO-2NC Contact Configuration, 10 A at 480 VAC Contact, 120 cpm Operating Cycles, -10 to 185 deg F, NPT Conduit/Screw Clamp Connection, Steel Connection, Nitrile Diaphragm, Die Cast Aluminum Housing Material, NEMA 4/4X/13 Enclosure, 3.5 in W x 2.63 in D x 5.55 in H Dimensions

MFG #: 9012GAW25

EECO #: SD9012GAW25

Brand: Square D
UPC #: 785901024804
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39122210
Application
Indoor/Outdoor Applications and Regulation Between 2 Thresholds
Contact Rating
10 A at 480 VAC
Enclosure Type
NEMA 4/4X/13
Connection Type
NPT Conduit/Screw Clamp
Housing Material
Die-Cast Aluminum
Temperature Rating
-10 to 185
Contact Configuration
2NO/2NC
Type
Electromechanical Single Stage
Series
9012G
Warranty
18 months
Dimensions
3.5 in W x 2.63 in D x 5.55 in H
Pressure Rating
3 to 150
Features
  • -40 to 250 deg F hydraulic oil, air, non-corrosive liquid and non-corrosive gas
  • Regulation between 2 thresholds pressure switch operation
  • Adjustable scale
  • 1/2 in NPT conduit entrance cable entry
  • >0 to <4% repeat accuracy
  • 10 A by gL overload and short circuit protection
  • 5000000 cycles mechanical durability
  • 50 gn conforming to IEC 60068-2-27 shock-resistance
  • Without local display
  • 22 to 12 AWG electrical connection
  • 1/4 in 18 NPTF conforming to UL 508 fluid connection
  • Isolated DPDT contact configuration
  • 150 psi system pressure
  • Adjustable differential scale
  • Corrosion-resistant
  • Dusttight oiltight and watertight
