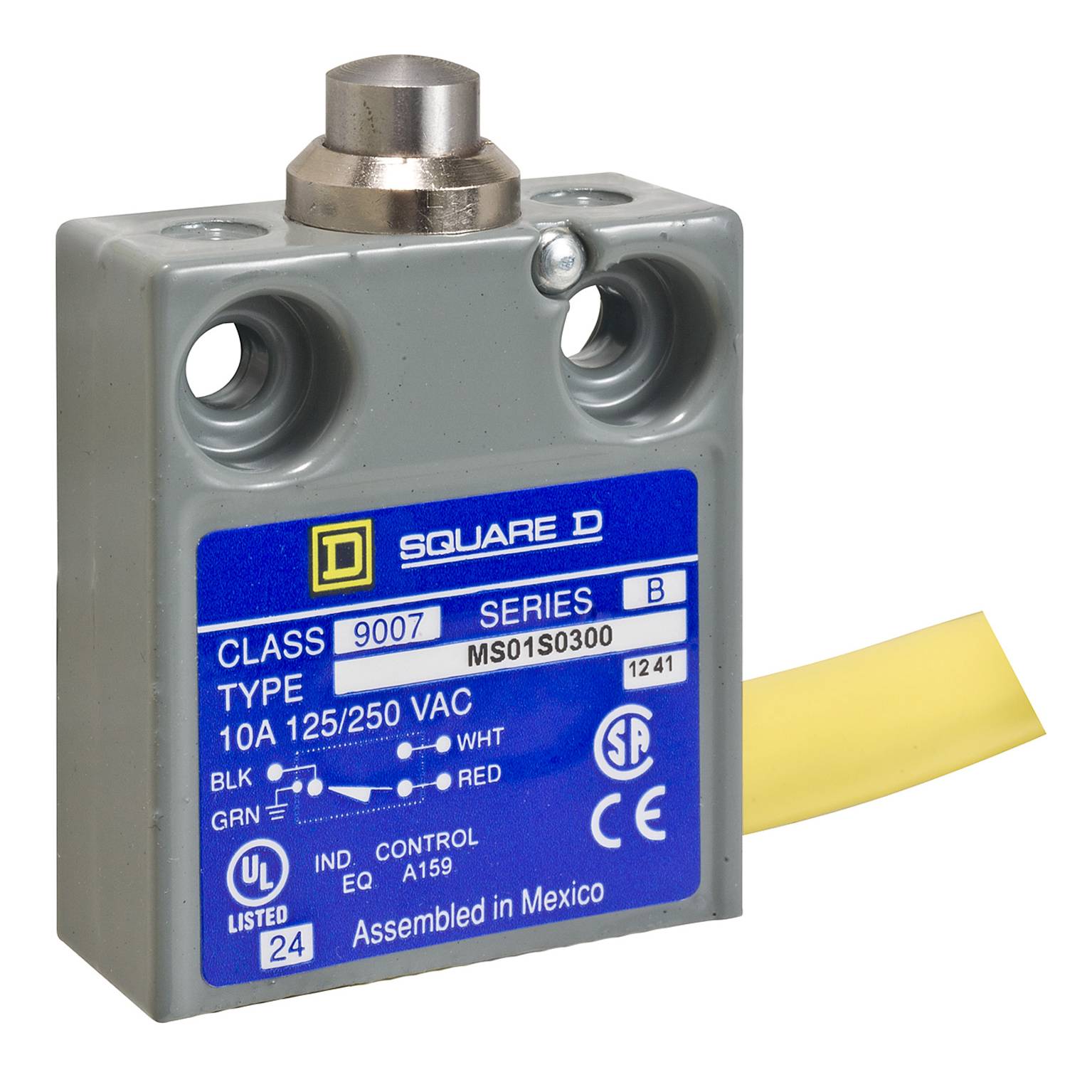

Square D™ 9007MS01S0406 9007MS/ML Miniature Potted Linear Plunger Actuated Limit Switch, 240 VAC/28 VDC, 10 A, Spring Return Plunger Actuator, 1NC-1NO Contact, 1 Pole
Share Share Print Print
Schneider Electric

Square D™ 9007MS01S0406 9007MS/ML Miniature Potted Linear Plunger Actuated Limit Switch, 240 VAC/28 VDC, 10 A, Spring Return Plunger Actuator, 1NC-1NO Contact, 1 Pole

Short Description

Enhance your automation with the Square D™ 9007MS01S0406 Miniature Potted Linear Plunger Actuated Limit Switch. Designed for reliability and precision, this limit switch features a robust spring return plunger actuator, ensuring optimal performance in demanding environments. With a compact size and versatile mounting options, it's perfect for various applications requiring dependable operation.Enhanced by AI

Square D™ Plunger Actuated Limit Switch, Miniature Potted Linear, Series: 9007MS/ML, 240 VAC/28 VDC, 10 A, 1NC-1NO Contact Configuration, 3 A at 240 VAC/5 A at 28 VDC Contact, 1 Pole, Vertical/Snap Action, Spring Return Plunger Actuator, Pre-Wired Side Cable Connection, NEMA 1/2/4/6/6P/12/13/IP67 Enclosure, Fixed Mounting, 1.56 in W x 0.62 in D x 1.75 in H Size, 10000000 Cycles Operating Cycles, -40 to 220 deg F Operating, Cast Zinc, Epoxy Powder Coated, Environmental Conditions: -40 to 220 deg F Storage Temperature

MFG #: 9007MS01S0406

EECO #: SD9007MS01S0406

Brand: Square D
UPC #: 785901398950
Attributes
Features
Documents
Product Information
Attributes
Finish
Epoxy Powder Coated
UNSPSC
39122213
Material
Cast Zinc
Application
Material Working, Packaging, Materials Handling, Conveying, Food, Beverage, Mining, Mineral Constructions, Oil and Gas, Crane/Hoisting, Mill and Foundry Applications
Mounting Type
Fixed
Contact Rating
3 A at 240 VAC/5 A at 28 VDC
Enclosure Type
NEMA 1/2/4/6/6P/12/13/IP67
Voltage Rating
240 VAC/28 VDC
Connection Type
Pre-Wired Side Cable
Actuator
Spring Return Plunger
Contact Configuration
1NC/1NO
Operating Temperature
-40 to 220
Environmental Conditions
-40 to 220 deg F Storage Temperature
Size
1.56 in W x 0.62 in D x 1.75 in H
Type
Miniature Potted Linear
Series
9007MS/ML
Warranty
18 months
Amperage Rating
10
Features
  • Ms+ options limit switch
  • Linear movement of operating head
  • Form C, snap action silver contacts
  • Side entrance #18 AWG SJTO 12 ft black cable
  • 6 A 120 VAC at A300 NEMA rating designation, 3 A 240 VAC at A300 NEMA rating designation, 5 A 28 VDC
IDW_DOCUMENT_49b3ba53d94c741c85c0811758495516b3a684c5422c63eb599e323f4626d49d
IDW_DOCUMENT_80c353e040677ac74e334383beb973a3a2d0c7db906140714e1f554646dc5b90
IDW_DOCUMENT_962a1c67c4dcc71f4c9f3355cae3d538d942700fdad0ceb0863e9b630505e8e8
Qty Unit price
Ea
1 $172.59
