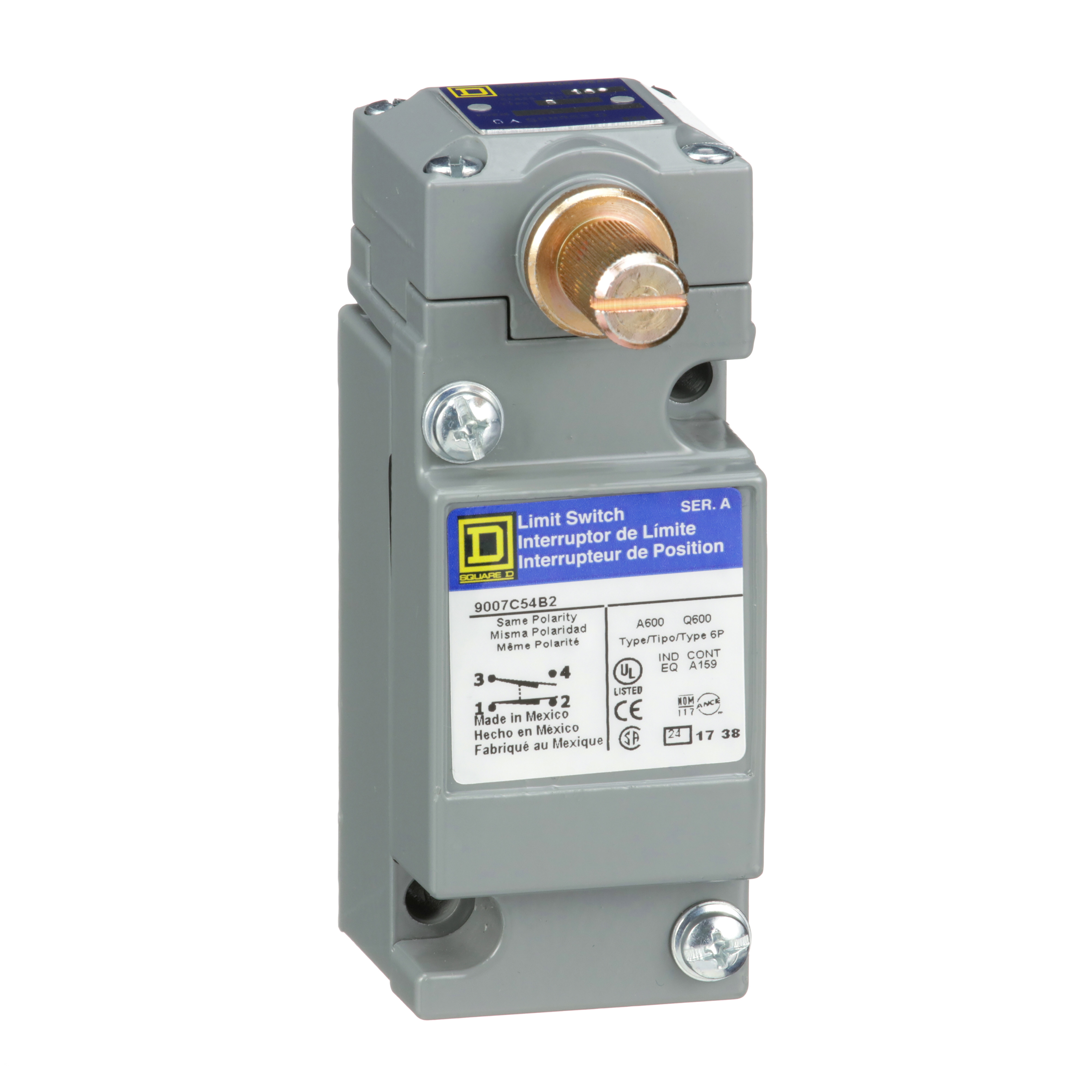

Square D™ 9007C54B2 Standard Rotary Actuated Limit Switch, 600 VAC/VDC, 10 A, Rotary Lever Arm Actuator, 1NO-1NC Contact, 1 Poles
Square D™ 9007C54B2 Standard Rotary Actuated Limit Switch, 600 VAC/VDC, 10 A, Rotary Lever Arm Actuator, 1NO-1NC Contact, 1 Poles
Share Share Print Print
Schneider Electric

Square D™ 9007C54B2 Standard Rotary Actuated Limit Switch, 600 VAC/VDC, 10 A, Rotary Lever Arm Actuator, 1NO-1NC Contact, 1 Poles

Short Description

limit switch, 9007C, full body, rotary lever arm, standard pretravel, spring return, 1 NO and 1 NC, NEMA 4 and 13

Square D™ Rotary Actuated Limit Switch, Standard, Series: 9007C, 600 VAC/VDC, 10 A, 1NO-1NC, 1.2 A at 600 VAC, 0.1 A at 600 VDC, A600/Q600 Contact, 1 Pole, Rotary/Spring Return/Snap, Rotary Lever Arm, Screw Clamp, NEMA 1/2/4/6/6P/12/13, Body/Plug-In Mount, 1.55 in W x 2.5 in D x 4.02 in H, 1000000 cycles Operating Cycles, -20 to 185 deg F Operating, Zinc Alloy, Epoxy Powder Coated, Environmental Conditions: -20 to 185 deg F

MFG #: 9007C54B2

EECO #: SD9007C54B2

Brand: Square D
UPC #: 785901500742
Attributes
Features
Documents
Product Information
Attributes
Finish
Epoxy Powder Coated
UNSPSC
39122213
Material
Zinc Alloy
Application
9007CR Heavy Duty Limit Switch and Standard Box Applications
Mounting Type
Body/Plug-In
Contact Rating
1.2 A at 600 VAC, 0.1 A at 600 VDC, A600/Q600
Enclosure Type
NEMA 1/2/4/6/6P/12/13
Voltage Rating
600
Connection Type
Screw Clamp
Actuator
Rotary Lever Arm
Contact Configuration
1NO+1NC
Operating Temperature
-20 to 185
Environmental Conditions
-20 to 185
Size
1.55 in W x 2.5 in D x 4.02 in H
Type
Standard
Series
9007C
Warranty
18 months
Amperage Rating
10
Features
  • Fixed body
  • 10 deg tripping angle
  • Form Z, snap action silver contact
  • From left and right, CW and CCW switch actuation
  • Plug-in body
  • Zinc spring return without operating lever (-) 9007C lever
  • One or two-programmable direction lateral approach
  • Screw clampScrew clamp terminals, 22 to 12 AWG electrical connectionical connection
  • Without positive opening
  • 1/2 in NPT conduit entrance
  • NEMA A600/Q600
  • Without operating lever
IDW_DOCUMENT_54aa5ca457e3e79d610731accc1605a313ace909d5a10d086974d67bc892e893
IDW_DOCUMENT_babc0fe6109aaabd87dcd9485c1e38f9fd630e89651e3d491e79f633a05a8cf6
IDW_DOCUMENT_d978af0d60e2ba1ad5e93023be062337e4892de19b3921e9823fe326f502fee5
Qty Unit price
Ea
1 $94.50
