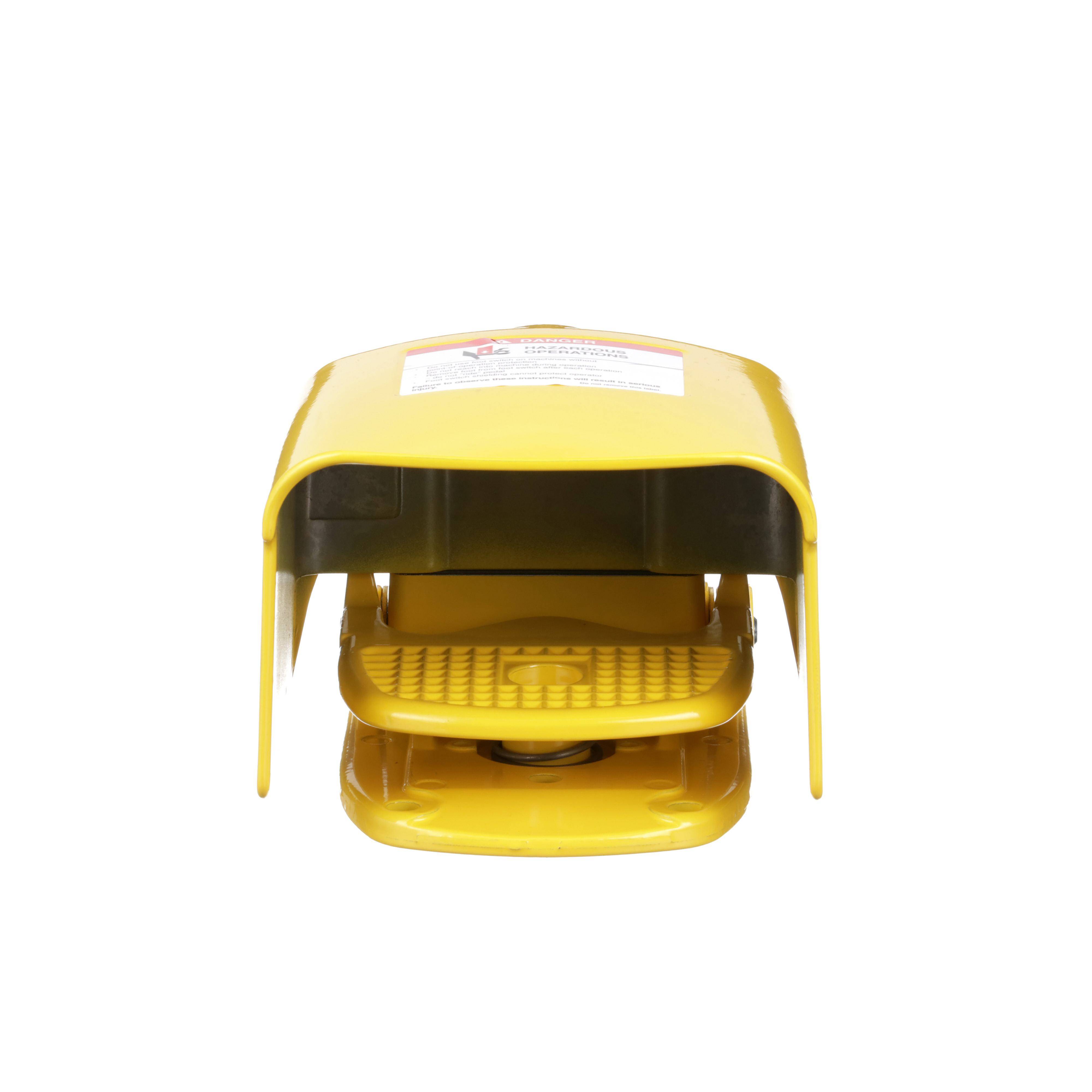

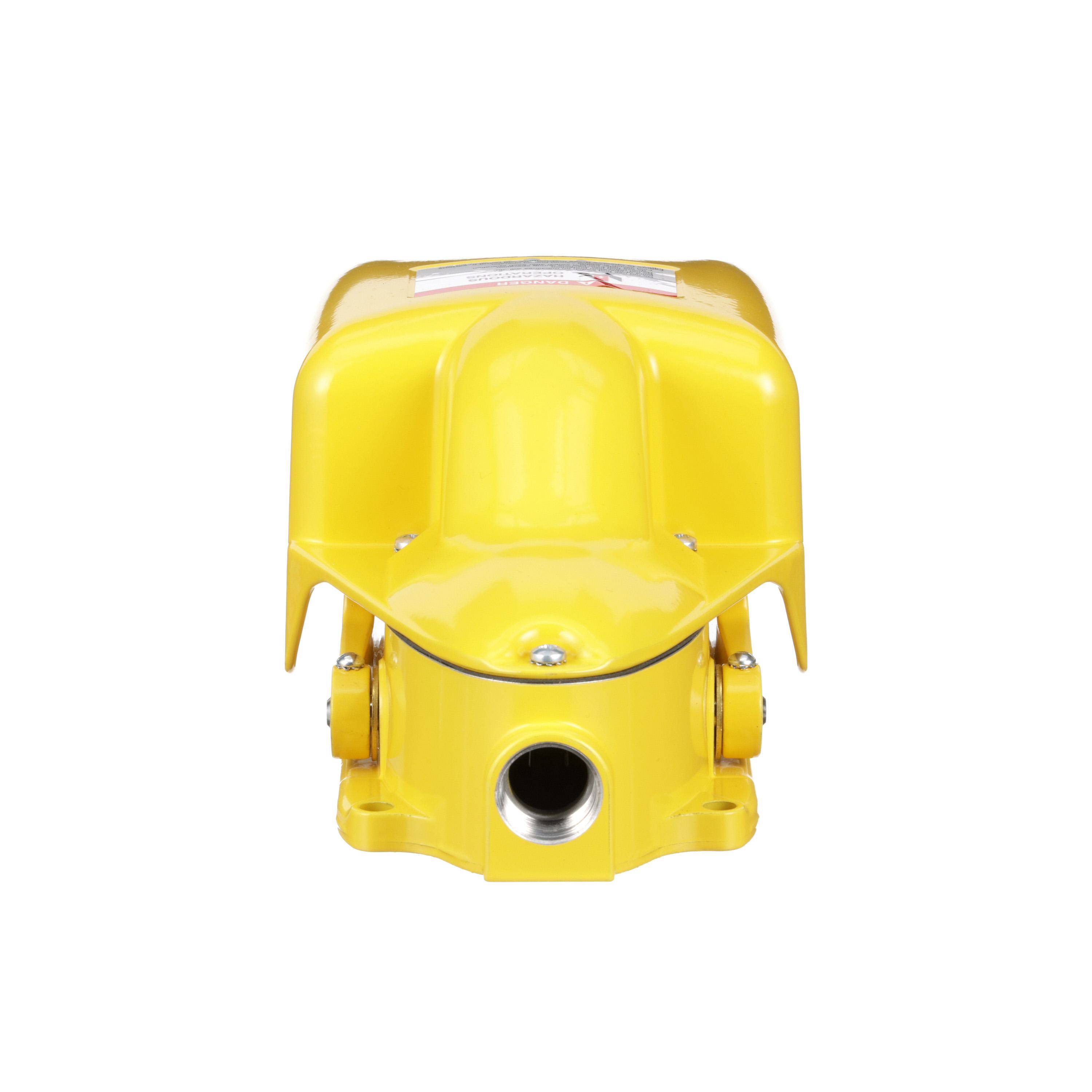

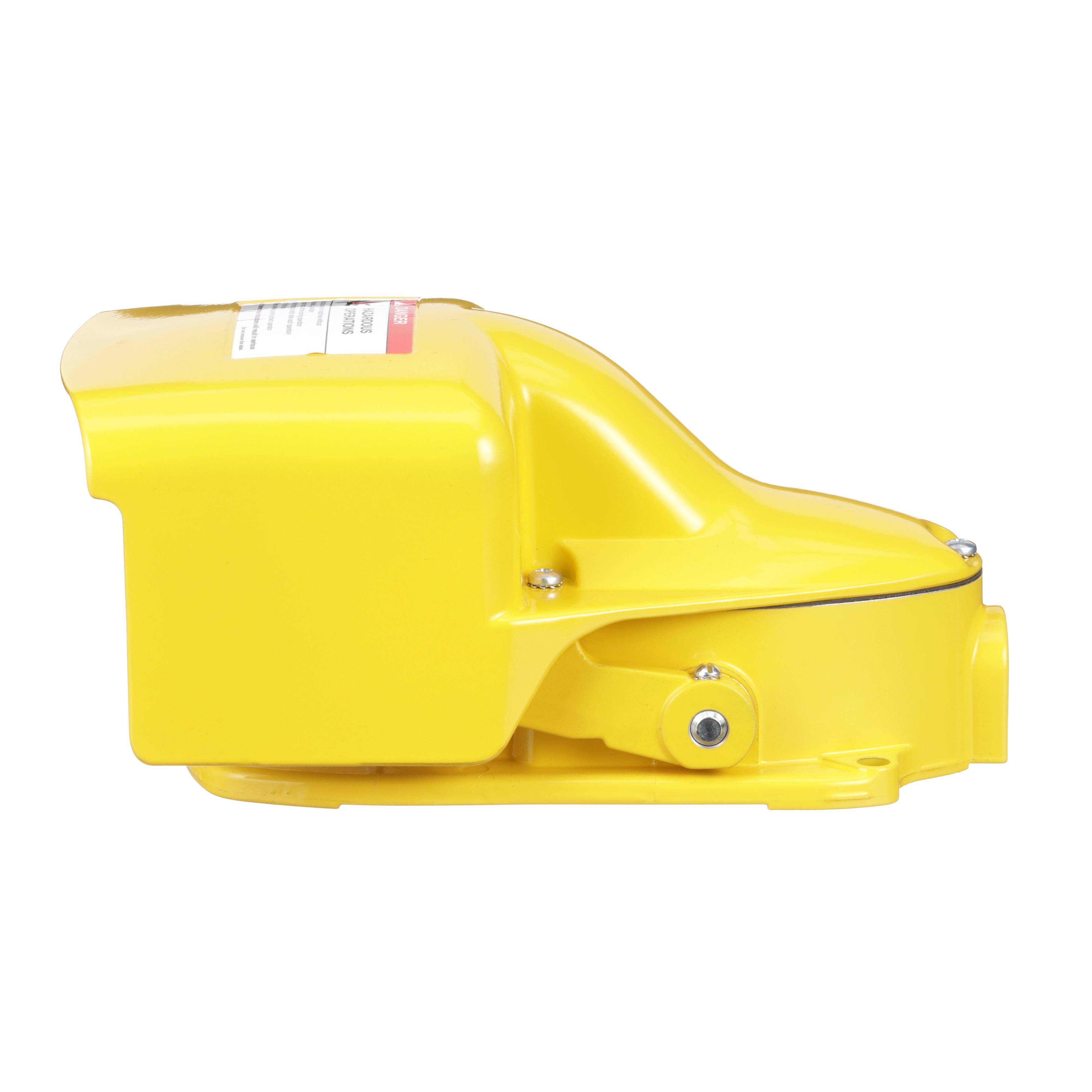

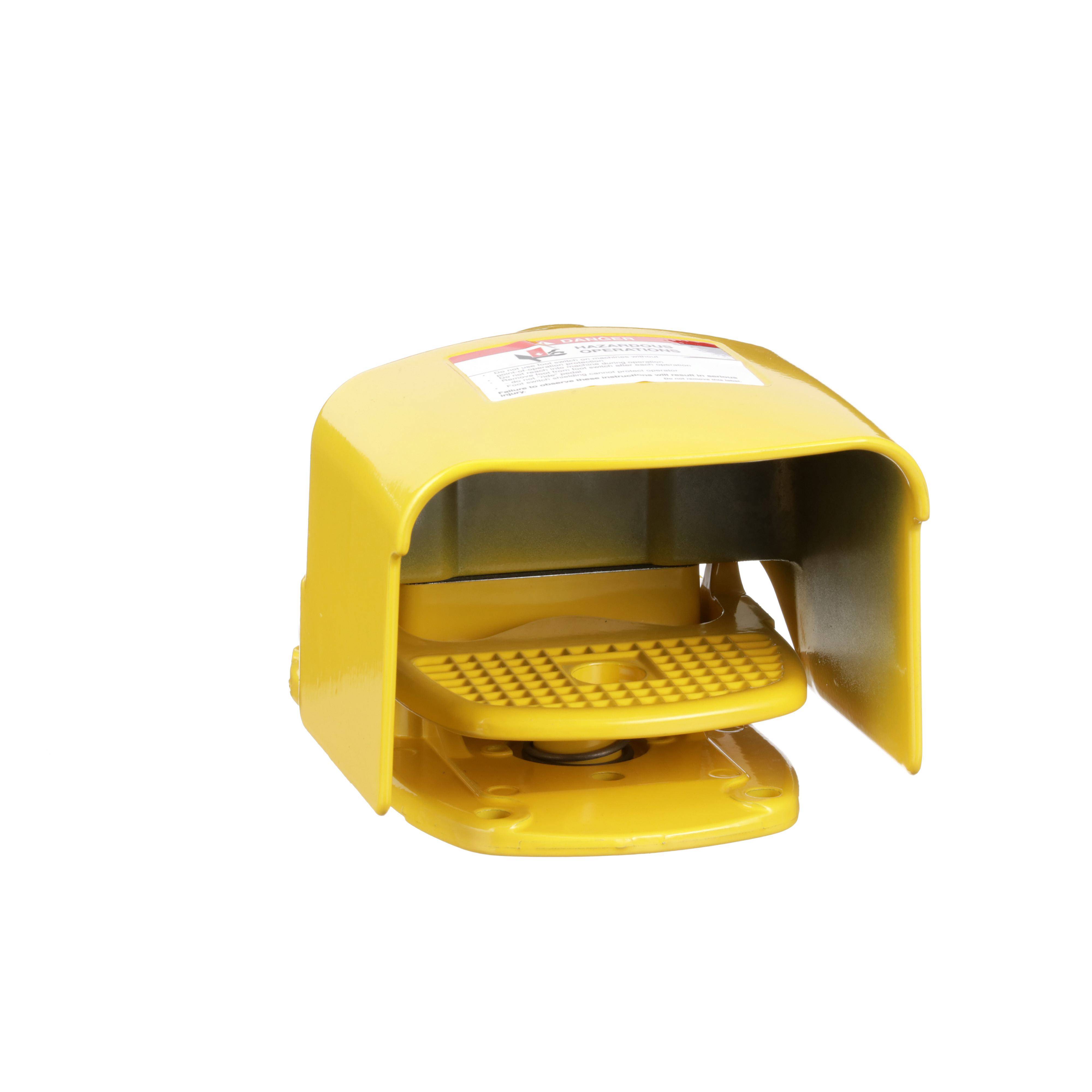

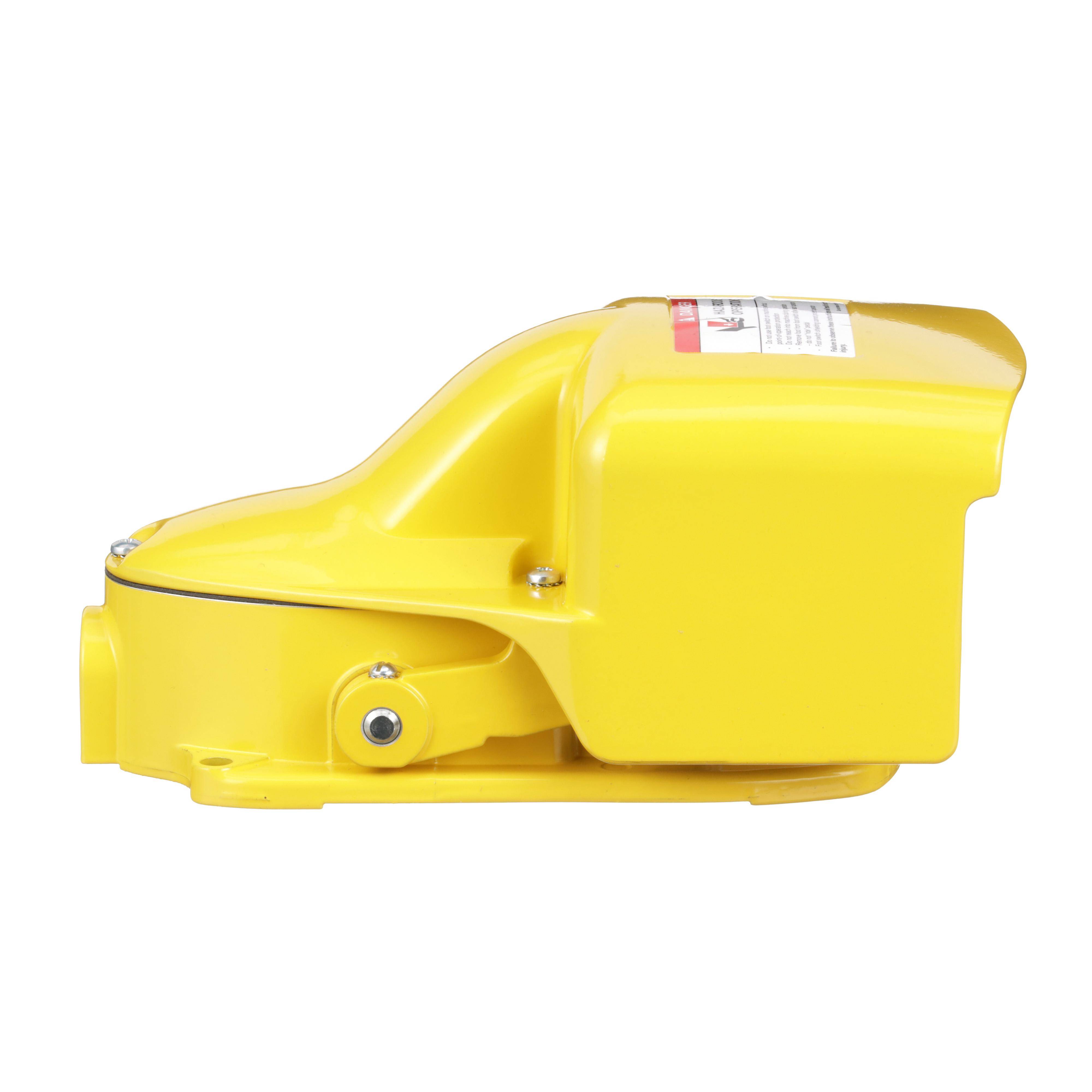

Square D™ 9002AW2 9002 Foot Switch, 600 VAC/VDC, 5 A

Short Description
Square D™, 9002AW2, Foot Switch, Series: 9002, 600 VAC/VDC, 5 A, SPDT Contact Configuration, 5 A at 600 VAC/15 A at 125/250 VDC Contact, 1-Step Spring Return Action, Pedal Actuator, NEMA 2/4/13 Enclosure, 5.38 in W x 4.84 in D x 9 in H Dimensions
MFG #: 9002AW2

EECO #: SD9002AW2

Brand: Square D
UPC #: 785901815921
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39122222
Application
Industrial and Indoor/Outdoor Applications
Contact Rating
5 A at 600 VAC/15 A at 125/250 VDC
Voltage Rating
600
Actuator
Pedal
Enclosure
NEMA 2/4/13
Contact Configuration
SPDT
Series
9002
Warranty
18 Months
Dimensions
5.38 in W x 4.84 in D x 9 in H
Amperage Rating
5
Features
  • Pedal shield and side shields
  • Spring return operator
  • 3/4 in NPT conduit entrance cable entry
  • Dusttight, oiltight and watertight
Schneider_Electric_XVLA333_Catalog
Square_D_9002AW2_Instruction_Installation_Manual
Square_D_9002AW2_Specification_Sheet
