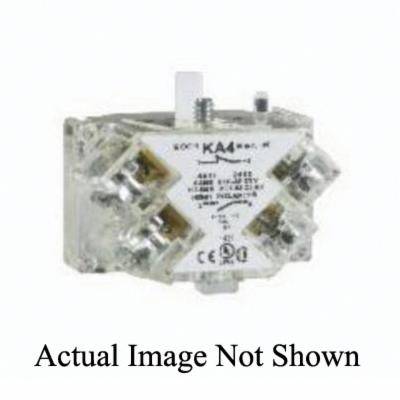

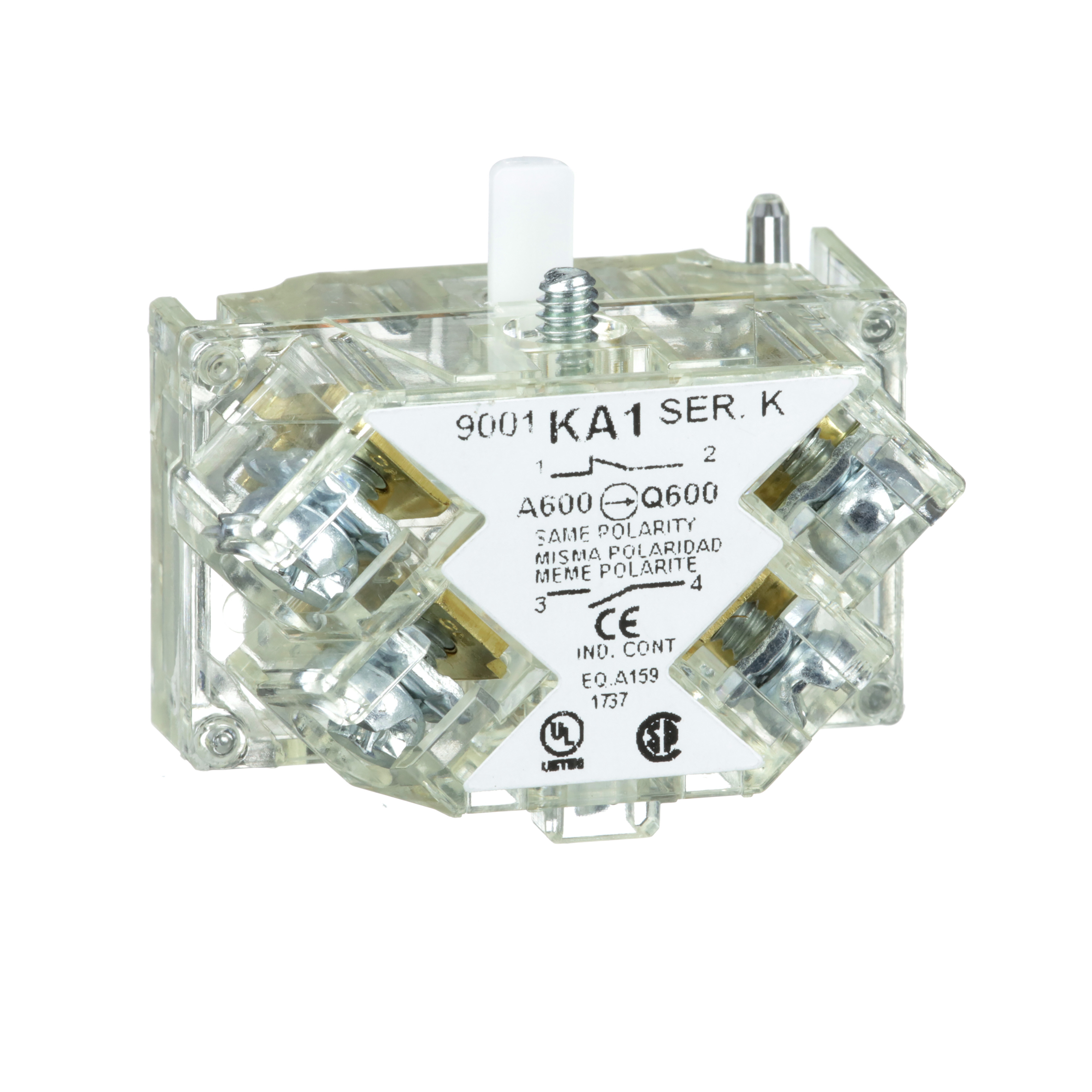

Square D™ Harmony™ 9001KA1 Types K SK KX Finger Safe Standard Contact Block With Protected Terminal, 30 mm, 1NO-1NC Contact, 10 A, 600 VAC Contact, Silver Alloy Contact, Momentary Action, Clear
Square D™ Harmony™ 9001KA1 Types K SK KX Finger Safe Standard Contact Block With Protected Terminal, 30 mm, 1NO-1NC Contact, 10 A, 600 VAC Contact, Silver Alloy Contact, Momentary Action, Clear
Square D™ Harmony™ 9001KA1 Types K SK KX Finger Safe Standard Contact Block With Protected Terminal, 30 mm, 1NO-1NC Contact, 10 A, 600 VAC Contact, Silver Alloy Contact, Momentary Action, Clear
Square D™ Harmony™ 9001KA1 Types K SK KX Finger Safe Standard Contact Block With Protected Terminal, 30 mm, 1NO-1NC Contact, 10 A, 600 VAC Contact, Silver Alloy Contact, Momentary Action, Clear
Share Share Print Print
Schneider Electric

Square D™ Harmony™ 9001KA1 Types K SK KX Finger Safe Standard Contact Block With Protected Terminal, 30 mm, 1NO-1NC Contact, 10 A, 600 VAC Contact, Silver Alloy Contact, Momentary Action, Clear

Short Description

This contact block allows fast and easy replacement and configuration of your push buttons and selector switches. It is easily installed and replaced on 9001K complete push-button units and selector switches and connects to control circuits with simple screw-clamp connections. Its clear color of cover allows users to identify it visually at a distance. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index.

Square D™ Harmony™ Contact Block, Types K SK KX Finger Safe Standard, Series: 9001K, 30 mm Size, 1NO-1NC Contact Configuration, 10 A, 600 VAC Contact, Silver Alloy Contact, Momentary Action, Standard Operator, IP20 Enclosure, Screw Clamp Terminal, Threaded Mounting, Nylon, Clear

MFG #: 9001KA1

EECO #: SD9001KA1

Brand: Square D
UPC #: 785901880004
Attributes
Features
Documents
Product Information
Attributes
Color
Clear
UNSPSC
39122216
Material
Nylon
Mounting Type
Threaded
Operator Type
Standard
Terminal Type
Screw Clamp
Contact Rating
10 A, 600 VAC
Enclosure Type
IP20
Contact Configuration
1NO+1NC
Size
30
Type
Types K SK KX Finger Safe Standard
Series
9001K
Warranty
18 months
Contact Material
Silver Alloy
Features
  • Momentary action
  • This robust range is designed for application requiring a high-resistance to corrosion
  • Amorphous nylon housing
  • Steel terminal
  • Steel saddle clamp
  • Stainless steel spring
  • Paper label
  • Steel mounting screw
  • -13 to 158 deg F operating temperature
  • (2) 24 to 12 AWG solid or stranded wires
