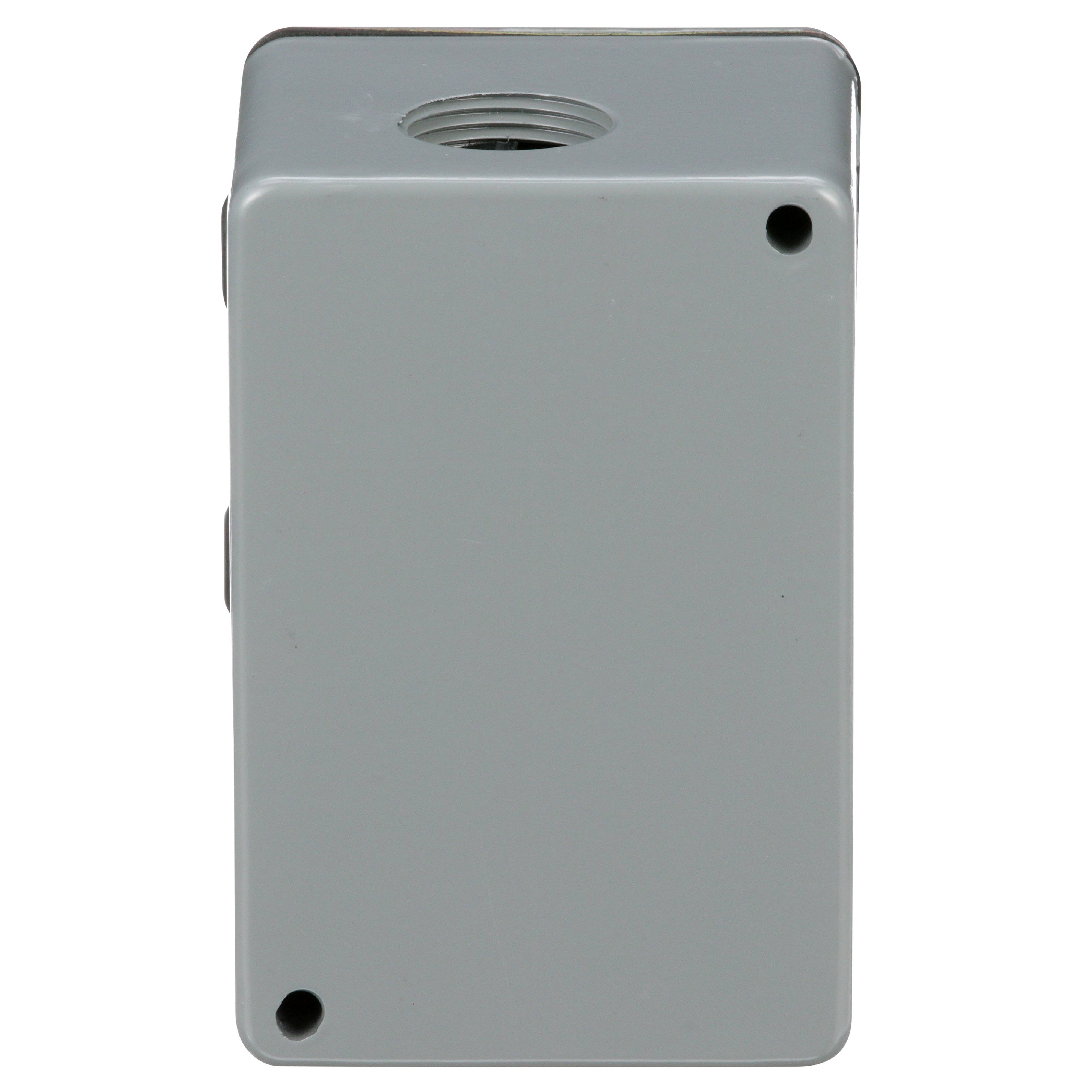

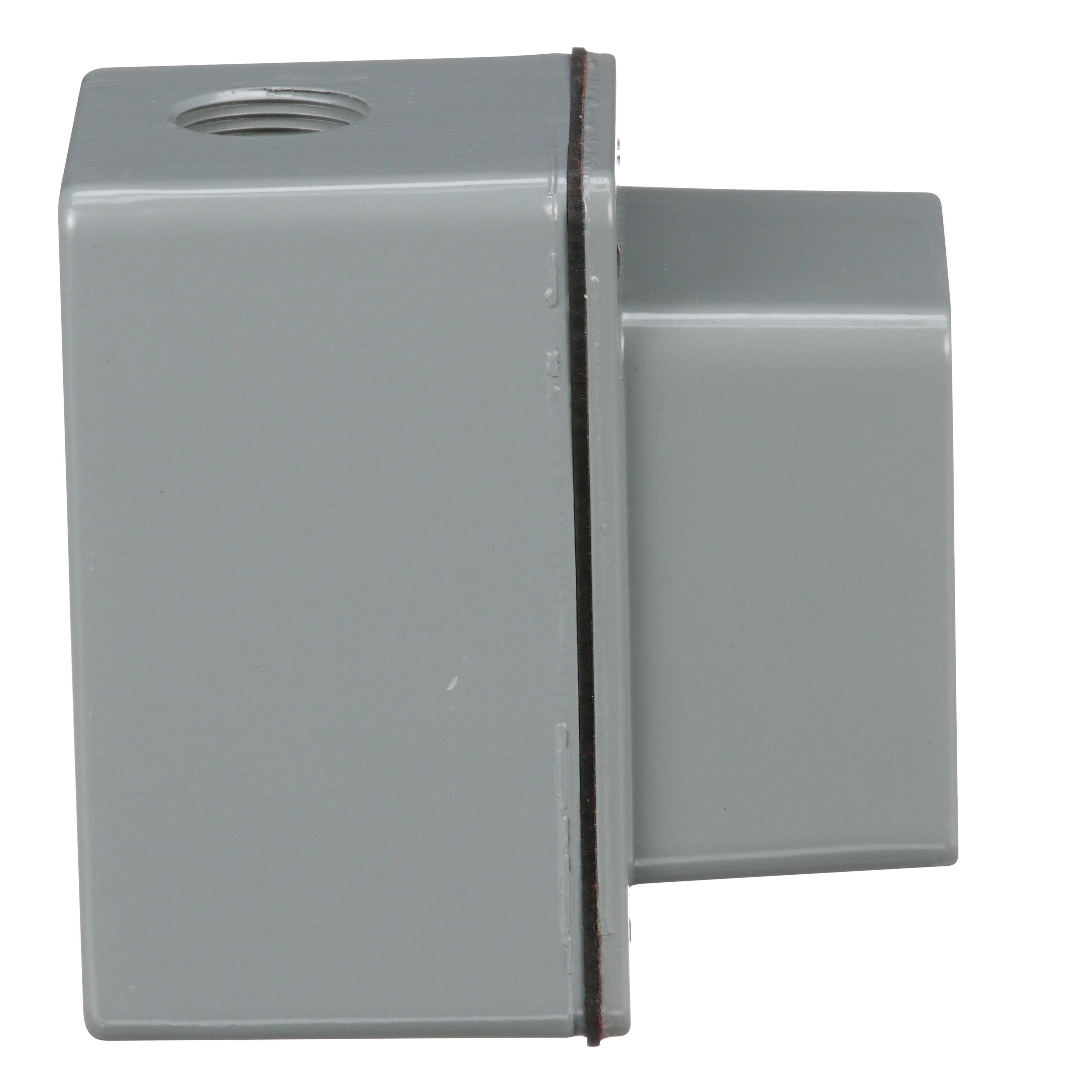

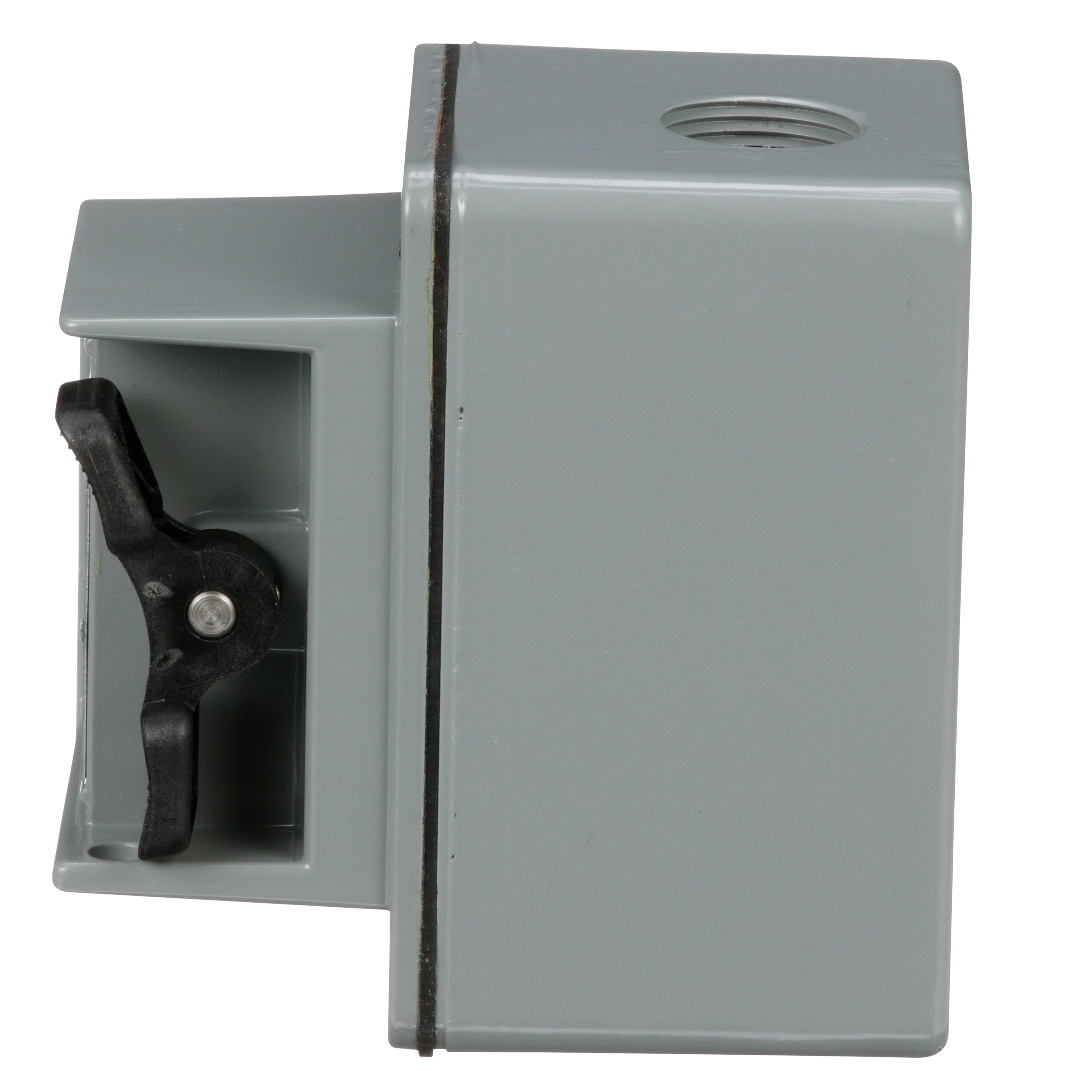

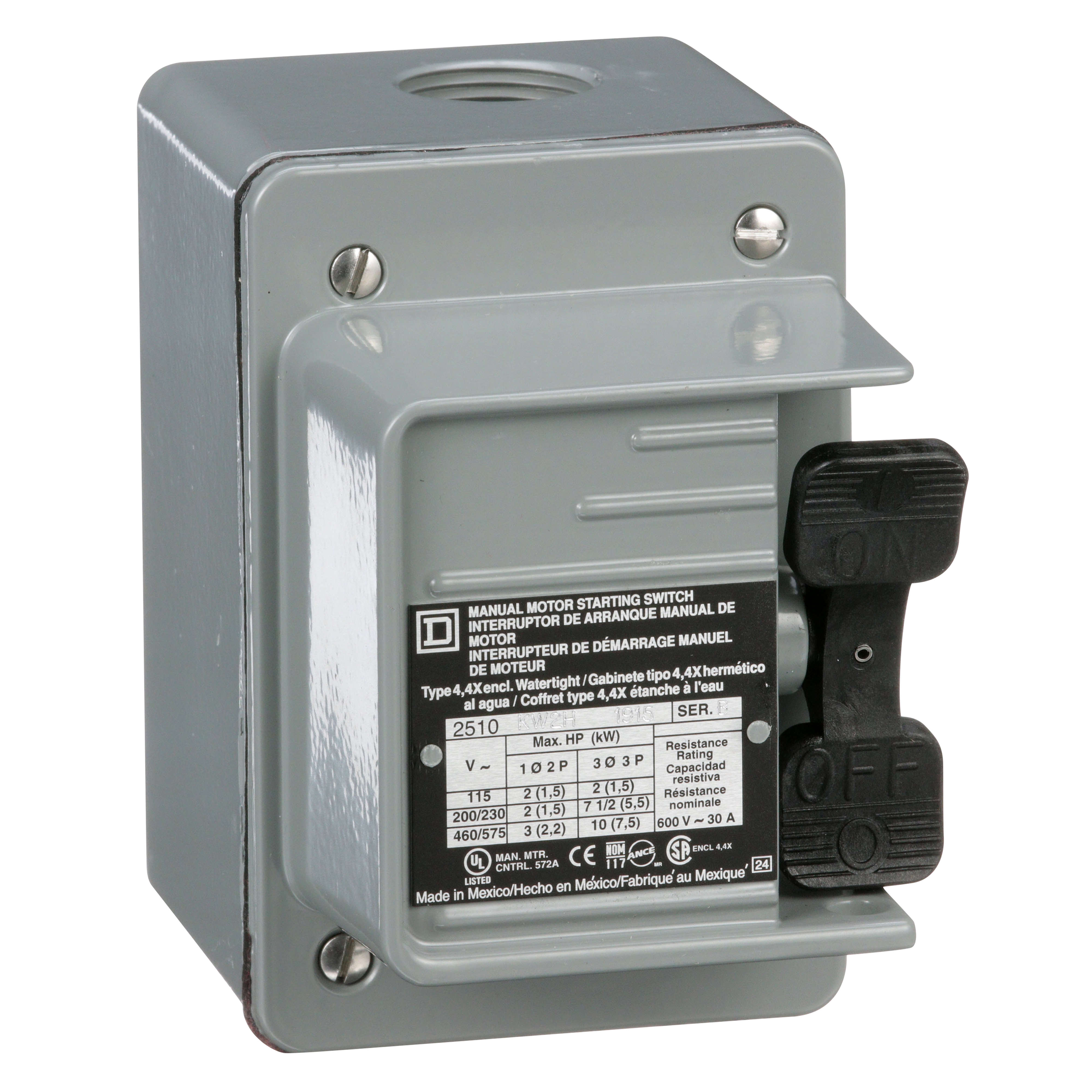

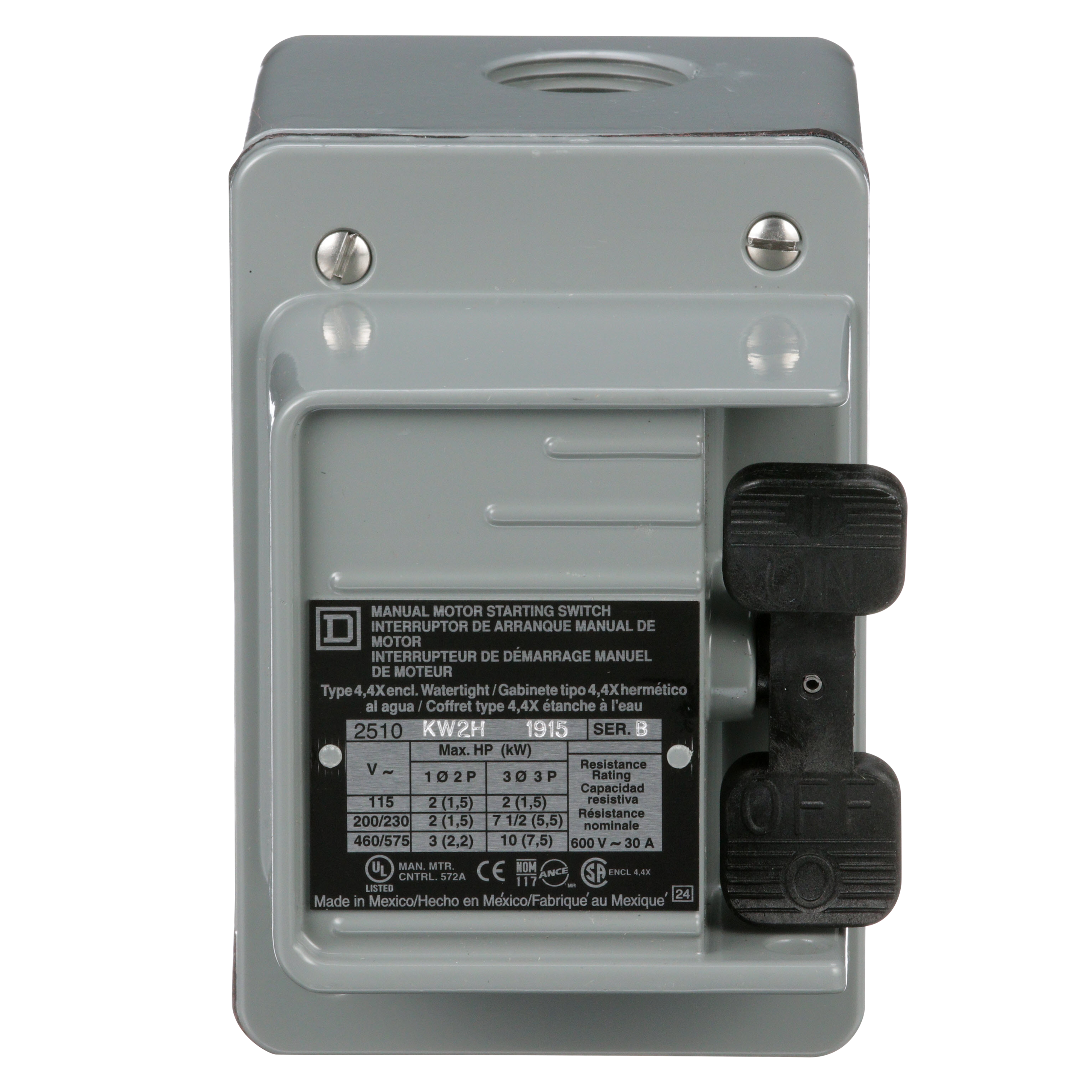

Square D™ 2510KW2H Type K 3-Phase Non-Reversing 1-Unit Standard Manual Switch, 600 VAC, 230 VDC, 30 A

Short Description

Experience reliable control with the Square D™ 2510KW2H Type K 3-Phase Non-Reversing Manual Switch. Designed for efficiency, this robust switch operates at 600 VAC and 230 VDC, making it an ideal choice for various applications. Its durable die-cast zinc alloy construction and NEMA 4 enclosure ensure longevity and protection in demanding environments.Enhanced by AI

Square D™ Manual Switch, Type K 3-Phase Non-Reversing 1-Unit Standard, Series: 2510, 600 VAC, 230 VDC, 30 A, 3 Pole, Toggle Actuator, Screw Clamp Connection, NEMA 4 Enclosure, Die Cast Zinc Alloy, 3 in W x 4.25 in D x 4.38 in H Dimensions

MFG #: 2510KW2H

EECO #: SD2510KW2H

Brand: Square D
UPC #: 785901554721
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121521
Material
Die Cast Zinc Alloy
Connection
Screw-Clamp
Application
For providing manual ON/OFF control of 1 or 3-phase AC motors where overload protection is not required or provided separately and general purpose applications
Voltage Rating
600 VAC, 230 VDC
Actuator
Toggle
Enclosure
NEMA 4
Type
Type K 3-Phase Non-Reversing 1-Unit Standard
Series
2510
Warranty
18 months
Dimensions
3 in W x 4.25 in D x 4.38 in H
Amperage Rating
30
Features
  • 2 hp 115 VAC/1 hp 90 VDC/10 hp 575 VAC/2 hp 115 VDC/7.5 hp 230 VAC/10 hp 460 VAC/1.5 hp 230 VDC, 2 hp at 115 VAC/1 hp at 90 VDC/2 hp at 115 VDC/.5 hp at 230 VDC/5 hp at 230 VAC/10 hp at 460 VAC/10 hp at 575 vac
  • 3/4 in NPT screw clamp connection
