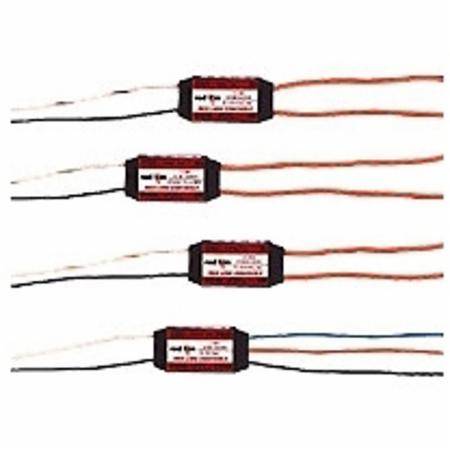

Red Lion Controls Inc. TCM10000 Triac Converter Module

Short Description

115 VAC/30 VDC, 10 Hz, Solid State DC Contact Closure Output, Triac Converter Module

Triac Converter Module; Type Solid State DC Contact Closure Output; Used On Photo-Electric Sensor and Programmable Controller; Voltage Rating 115 Volt AC Input/30 Volt DC at 100 Milliamp Output; Frequency Rating 10 Hertz; Output Wire Color White/Green Trace; Output Isolation 2300 Volt RMS; Temperature Rating 0 to 50 Deg C

MFG #: TCM10000

EECO #: RNTCM10000

Brand: Red Lion
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
32151705
Used On
Photo-Electric Sensor and Programmable Controller
Type
Solid State DC Contact Closure Output
Features
  • The Tam is a Specialized Version of the VCM
  • It is Specifically Designed to Operate with Photo-Electric Sensors and Programmable Controllers that have 115 Volt AC Triac Outputs
  • Due to Protective Suppression Circuits Connected in Parallel with Triacs, These Outputs have a High Off-State Leakage Current, Which, If Unloaded, is Sufficient to Keep a VCM in the on Condition Continuously
