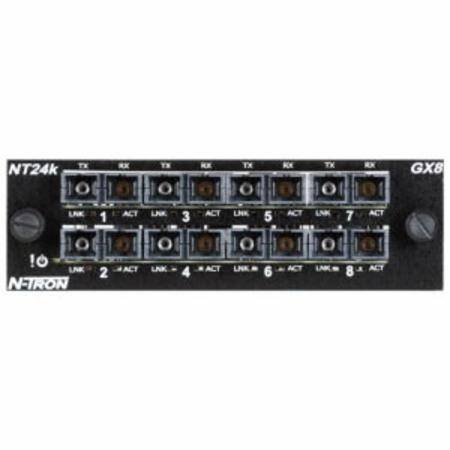

Red Lion Controls, Inc. NT24K-GXE8-SC-10 N-Tron® Ethernet Slide-In Module

12.84" x 3.19" x 5.9", 18 to 49 VDC (Low), 90 to 264 VAC/90 to 300 VDC (High), 10 KM Fiber Length, 580 mA, 8-Port, 100Base-FX ST, Singlemode, Managed, Ethernet Slide-In Module

Ethernet Slide-In Module; Type Singlemode, Managed; Number of Ports 8; Type of Ports 100Base-FX ST; VLAN Supported Yes; Multilink Trunking Trunking and Port Mirroring; Management Web Browser, Port Security; Full and Half Duplex Switching Yes; Number of Addresses Supported 16000; Depth 3.19 Inch; Height 5.9 Inch; Length 12.84 Inch; RoHS Compliant; Voltage Rating 18 to 49 Volt DC (Low), 90 to 264 Volt AC/90 to 300 Volt DC (High); Current Rating 580 Milliamp at 120 Volt AC/300 Milliamp at 124 Volt DC/1.52 Amp at 24 Volt DC; Fiber Segment Length 10 Kilometer; Humidity Range 5 to 95 Percent (Non-Condensing); Temperature Rating -40 to 75 Deg C; Application Factory Automation, Utilities, SCADA, Security Surveillance, Transportation, Alternative Energy; Applicable Standard UL (Canada and US), UL 508, CE, CAN/CSA-C22.2, FCC, ANSI/ISA 12.12.01, IEEE 802.1x/IEEE 1588v2, EMC Directive 2014/30/EU, GOST-R, EN 55024, IEC 61000, ICES-003
