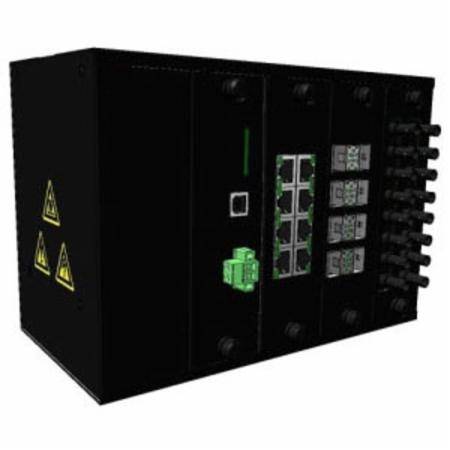

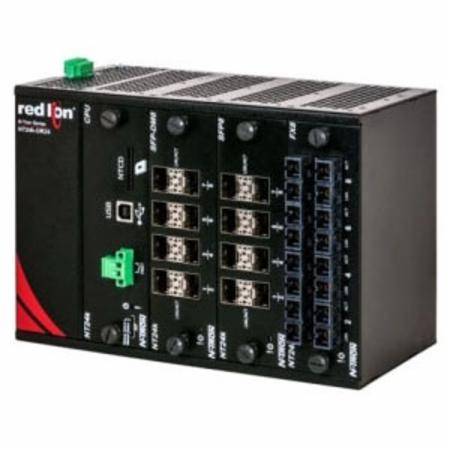

Red Lion Controls, Inc. NT24K-DR24-AC N-Tron® Ethernet Switch

Short Description

8.45" x 4.59" x 5.97", 90 to 264 VAC/90 to 300 VDC, 780 mA at 120 VAC/430 mA at 124 VDC, 24-Port, 10/100/1000Base-TX RJ45, 100/1000Base-SX/LX SFP LC Fiber, DIN Rail, Dual Mode, Gigabit, Managed, Industrial, Ethernet Switch

Ethernet Switch; Type Dual Mode, Gigabit, Managed, Industrial Ethernet Switch; Number of Ports 24; Type of Ports (24) 10/100/1000Base-TX RJ45, 100/1000Base-SX/LX SFP LC Fiber; VLAN Supported Yes; Multilink Trunking Trunking and Port Mirroring; Management Web Browser; Number of Addresses Supported 16000; Depth 4.59 Inch; Height 5.97 Inch; Length 8.45 Inch; RoHS Compliant; Voltage Rating 90 to 264 Volt AC/90 to 300 Volt DC; Current Rating 780 Milliamp at 120 Volt AC/430 Milliamp at 124 Volt DC; Humidity Range 5 to 95 Percent (Non-Condensing); Temperature Rating -40 to 75 Deg C; Mounting Type DIN-Rail; Includes 3-Expansion Slot; Application Factory Automation, Utilities, SCADA, Security Surveillance, Transportation, Alternative Energy; Applicable Standard UL (Canada and US), UL 508, CE, CAN/CSA-C22.2, FCC, ANSI/ISA, ABS

MFG #: NT24K-DR24-AC

EECO #: RNNT24KDR24AC

Brand: Red Lion
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
43222612
Management
Web Browser
Number of Ports
24
Multilink Trunking
Trunking and Port Mirroring
Number of Addresses Supported
16000
Type
Dual Mode, Gigabit, Managed, Industrial Ethernet Switch
Depth
4.59 Inch
Height
5.97 Inch
Features
  • All Gigabit Modular Design
  • Up to 24 Port Connections
  • High Environmental Specifications
  • N-Ring Advanced Ring Technology
  • Robust Remote Monitoring
  • Smart Plug-And-Play Operation
  • Onboard Temperature Sensor
  • ESD and Surge Protection Diodes on All Copper Ports
  • Auto-Sensing 10/100/1000BaseT(X), Duplex and MDIX
  • USB Configuration Port
  • Configurable Alarm Contact
  • Optional Backup/Restore Configuration Device
  • Fully Managed Features Include - SSH/SSL/HTTPS, SNMP v1, v2, v3, Web Browser Management, Detailed Ring Map and Fault Location Charting, RSTP - 802.1d, 802.1w, 802.1D, Trunking and Port Mirroring, 802.1Q Tag VLAN and Port VLAN, IEEE 802.1x with RADIUS Remote Server Authentication, 802.1p QoS, Port QoS and DSCP, Event Log/Syslog, SNTP (Simple Network Time Protocol), N-Link Redundant Ring Technology, N-View Monitoring Technology, Ethernet/IP CIP Messaging
  • RoHS Compliant
