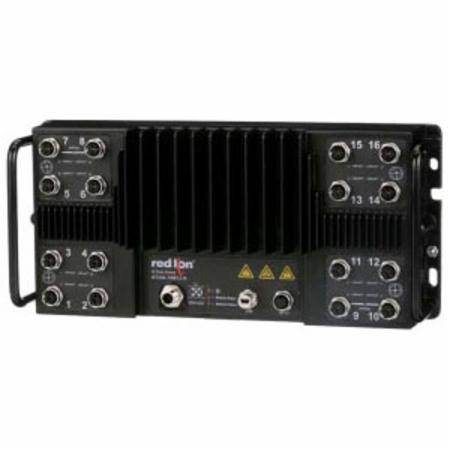

Red Lion Controls, Inc. NT24K-16M12-POE-R-PT N-Tron® Power Over Ethernet Switch

12.84" x 3.19" x 5.9", 22 to 49 VDC, 11.5 A at 24 VDC, 16-Port, 10/100/1000Base-T M12 8-Pin X-Code Female Connector/USB Type B, PTP Enabled, Gigabit, Managed, Industrial, Power Over Ethernet Switch with Bypass Relay

Power Over Ethernet Switch; Type Gigabit, Managed, Industrial Ethernet Switch; Number of Ports 16; Type of Ports 10/100/1000Base-T M12 8-Pin X-Code Female Connector, (1) USB Type B; VLAN Supported Yes; Port Speed 32 Gbps; Multilink Trunking Trunking and Port Mirroring; Management Web Browser, Remote Monitoring; LED Yes; IGMP Snooping Yes; Full and Half Duplex Switching Yes; Number of Addresses Supported 16000; Depth 3.19 Inch; Height 5.9 Inch; Length 12.84 Inch; RoHS Compliant; Voltage Rating 22 to 49 Volt DC; Current Rating 11.5 Amp at 24 Volt DC; Enclosure Type IP67; Humidity Range 10 to 95 Percent (Non-Condensing); Temperature Rating -40 to 80 Deg C; Includes Bypass Relay; PTP Enabled; Application Rail/Transportation, Alternative Energy, Manufacturing, Oil and Gas, Transportation, Water/Wastewater; Applicable Standard UL (Canada and US), UL 508, CE, CAN/CSA-C22.2, FCC, ANSI/ISA, ABS, IEEE 802.3/802.3u/802.3ab/802.3x/802.1d/D/w/802.1p/802.1Q/802.1x, EMC Directive 2014/30/EU, GOST-R
