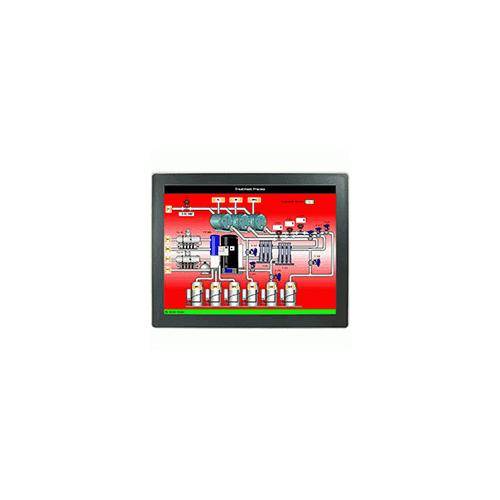

redlion® G15C1100 Graphite™ Touchscreen PLC Analog/Digital I/O Module, 1024 x 768 pixel Resolution

Short Description

10 to 30 VDC, 27 W, 15" LCD Display, 1024 x 768 Resolution, Touchscreen Interface, 2-Ethernet Port, Color, HMI Operator Interface Terminal

redlion®, G15C1100, PLC Analog/Digital I/O Module, Touchscreen, Series: Graphite™, 1024 x 768 pixel Resolution, 10 to 30 VDC, -20 to 60 deg C, Black, 14.36 in x 11.42 in x 2.64 in Dimensions
MFG #: G15C1100

EECO #: RNG15C1100

Brand: Red Lion
Attributes
Features
Documents
Product Information
Attributes
Color
Black
UNSPSC
32151702
Approval
UL, UL (Canada and US), CE
Material
Cast Aluminum (Enclosure)
Resolution
1024 x 768
Display Type
LCD
Power Rating
27 Watt
Voltage Rating
10 to 30
Enclosure
NEMA 4X, IP66
Operating Voltage
10 to 30 Volt DC
Temperature Rating
-20 to 60
Operating Temperature
-20 to 60 Deg C
Operator Interface Type
Touchscreen
Type
Touchscreen
Series
Graphite™
Dimensions
14.36 in x 11.42 in x 2.64 in
Display Size
15 Inch
Communication Port Type
(1) RS-232, (1) RS-422/485
Features
  • 15 in XGA Color Widescreen touchscreen (1024 x 768)
  • Indoor Model
  • Up to 20 Simultaneous Protocol Conversions
  • Two 10/100 Base-TX Ethernet Ports
  • Four Fully Isolated Serial Communication Ports, (two RS-232 and two RS-422/485)
  • One USB Type B Port
  • Two High-retention USB Host Ports
  • 8 Module Slots to Easily add I/O Capability with Plug-in Modules
  • OPC UA Client Driver
  • Built-in MQTT connectors accelerate IIoT projects with point-and-click simplicity
  • Google Cloud
  • Microsoft Azure
  • Sparkplug
  • Inductive Automation
  • Ignition
  • Store and Forward Buffering for Cloud Connectors
REDLNCE00018_8_15
REDLNCE00065_1_4
REDLNCINST00042
redlion_G15C1100_Installation_Manual
redlion_G15C1100_Specification_Sheet
redlion_G15C1100_User_Manual
Qty Unit price
Ea
1 $7,137.71

Slpk
1 $7,137.71

Slqt
1 $7,137.71

Stpk
1 $7,137.71

Unit
1 $7,137.71
